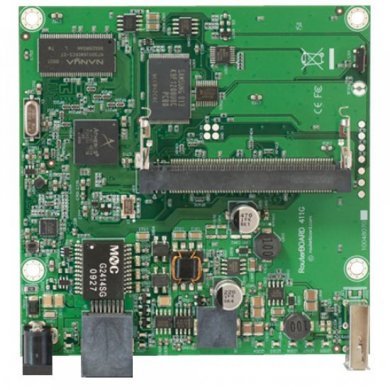

RB411UAHL

Routerboad MikroTik with 680MHz Atheros

CPU AR7130, 64MB RAM, 1x LAN, 1 mini PCI, Licença nivel 4

RB411UAHL - Mikrotik
RB411UAHL Routerboad MikroTik with 680MHz Atheros
Routerboad MikroTik with 680MHz Atheros
*Imagens ilustrativas

RB411UAHL

Routerboad MikroTik with 680MHz Atheros

CPU AR7130, 64MB RAM, 1x LAN, 1 mini PCI, Licença nivel 4

Garantia:
6 meses direto com a Net Computadores

NCM:
84733049

Produto sob encomenda - Consulte disponibilidade

RB411UAHL Routerboad MikroTik with 680MHz Atheros

Condição de RB411UAHL: novo em embalagem comercial

 The board has one MiniPCI Type IIIA slot with 3.3V only power signaling. It also accepts MiniPCI Type IIIB standard cards. The board has been tested to operate with high power cards if ambient temperature and adequate cooling is ensured. NOTE: that RB411 currently does not support Senao 8602 cards, Atheros AR5211 or older chipset and Prism chipset based cards.

This Fast Ethernet port is recognized as the first LAN interface. It is compatible with passive (non-standard) Power over Ethernet. The board accepts voltage input from 12 to 28 V DC. It is suggested to use higher voltages for power over long cables because of better efficiency (less power is lost in the cable itself and power supply is more efficient).

Features:

CPU: MIPS24k based, Atheros AR7130 300MHz CPU
Memory: 32MB SDRAM onboard memory
Boot loader: RouterBOOT
Data storage: 64MB onboard NAND memory chip
Ethernet: One 10/100 Mbit/s Fast Ethernet ports supporting Auto-MDI/X
MiniPCI: slot One MiniPCI Type IIIA/IIIB slot
Serial port: One DB9 RS232C asynchronous serial port
LEDs: Power and User LED, 5 status LEDs
Speaker: Mini PC-Speaker
Power options: Power over Ethernet: 12..28V DC (except power over datalines)
Power jack: 9..28V DC
Dimensions: 105mm x 105mm
Weight: 115 g (4.06 oz)
Temperature Operational: -20°C to +65°C (-4°F to 149°F)
Humidity Operational: up to 70% relative humidity (non-condensing)
Power consumption: 3-4W without extension cards, maximum – 14W

RB411UAHL Routerboad MikroTik with 680MHz Atheros


Condição de RB411UAHL: novo em embalagem comercial

Tags de RB411UAHL: RB411UAHL, RB411 UAHL, RB 411 UAHL, RouterBOARD Mikrotik, Mikrotik RouterBOARD, RouterBOARD 680MHz, MIKROTIK RB411UAHL, Placa Mikrotik, AR7161 680MHz, AR7161, Mikrotik

Vídeo de RB411UAHL Routerboad MikroTik with 680MHz Atheros
