Placas Controladoras / HBAs / 05-25704-00

Placas Controladoras / HBAs

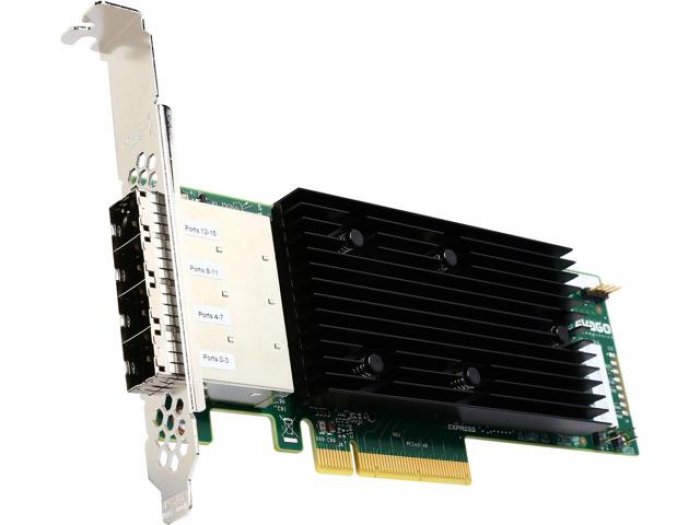

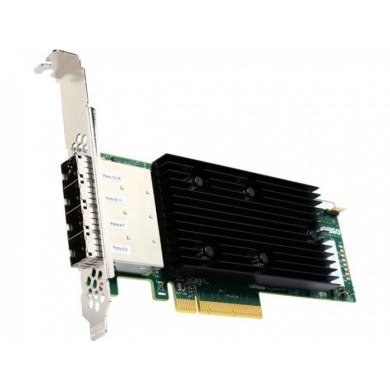

05-25704-00 Controladora HBA LSI 9305-16E 16 Canais

External 4 Portas SFF-8644 12Gb/s, Slot PCIe 3.0 X8, Low Profile

05-25704-00 Controladora HBA LSI 9305-16E 16 Canais

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 3.972,00

à vista no Pix ou Boleto

ou R$ 4.180,29 em 1x no cartão (via site)

ou R$ 4.412,52 no cartão em até 10x sem juros (apenas na loja física)

R$ 3.972,00

à vista no Pix ou Boleto

R$ 4.180,29
em 1x no cartão (via site)

R$ 4.412,52 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

84733049

R$ 3.972,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

Cotação PJ mais de uma unidade

Indicar 05-25704-00

05-25704-00 Controladora HBA LSI 9305-16E 16 Canais
External 4 Portas SFF-8644 12Gb/s, Slot PCIe 3.0 X8, Low Profile

Condição de 05-25704-00: Novo em embalagem comercial

Garantia de 05-25704-00: 12 meses direto com a Net Computadores

Designed for large-scale, data-intensive applications, the SAS 9305-16e 12Gb/s SAS HBA is ideal for tiered storage or multiple external storage enclosures.

The 9305-16e is a single-chip low-profile adapter providing up to 16 direct external drive connections or full scalability using expanders. With performance of over 1.5 million input-output operations per second (IOPS), this adapter delivers the performance and scalability needed for critical applications.

Connects up to 1024 SAS and SATA devices with 16 external 12Gb/s SAS ports

Provides maximum connectivity and performance for external JBOD and external RAID enclosures

Support critical applications with the bandwidth of PCIe® 3.0 connectivity

Achieve more than 1.5 million IOPS for performance-sensitive applications

Especificações

Lifecycle Active

Host Bus Type x8 lane PCI Express® 3.0

External Connectors 4 mini-SAS HD SFF8644

Operating Temperature 0°C to 55°C

Operating Voltage (V) +12V +/-8%, 3.3V +/-9%

OS Support Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical

PCI Power Typical: 13.0W

Cable Support Passive Copper, Active Optical

I/O Controller SAS3216

Operating Humidity 5% to 90% Non-condensing

Brackets Full height and low profile

Regulatory Certifications Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), RoHS, Safety: EN60950, WEEE

Data Transfer Rates 12Gb/s SAS-3 Compliant

Management Software MegaRAID Storage Manager (MSM), StorCLI (Command-Line Interface), LSI Storage Authority (LSA), HII UEFI Human Interface Infrastructure), CTRL-R

Maiores detalhes de 05-25704-00 no site do fabricante:
https://www.broadcom.com/products/storage/host-bus-adapters/sas-9305-16e#specifi
