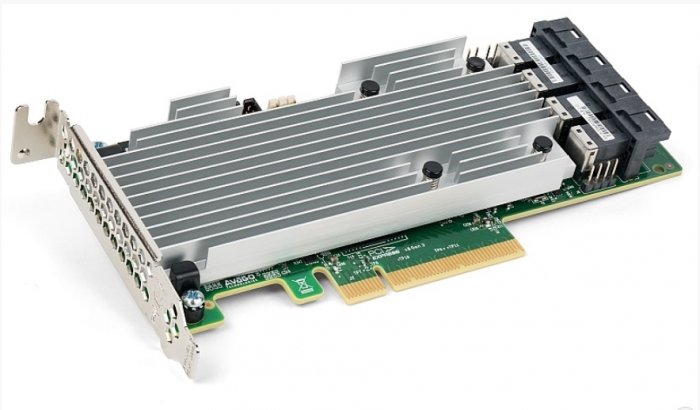

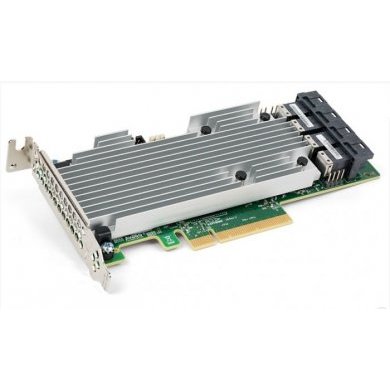

05-25708-00 Controladora LSI SAS 9361-16I 16 Canais

Broadcom 4 X SFF-8643 12Gb/s Low profile

05-25708-00 - LSI Logic
05-25708-00 Controladora LSI SAS 9361-16I 16 Canais
*As imagens podem ser ilustrativas
Controladora LSI SAS 9361-16I 16 CanaisControladora LSI SAS 9361-16I 16 Canais

R$ 10.937,00

à vista no Pix ou Boleto

ou R$ 11.512,31 em 1x no cartão (via site)

ou R$ 12.151,88 no cartão em até 10x sem juros (apenas na loja física)

R$ 10.937,00

à vista no Pix ou Boleto

R$ 11.512,31
em 1x no cartão (via site)

R$ 12.151,88 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
84733049

R$ 10.937,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

05-25708-00 Controladora LSI SAS 9361-16I 16 Canais
Broadcom 4 X SFF-8643 12Gb/s Low profile

Condição de 05-25708-00:    Novo em embalagem comercial

Garantia  de  05-25708-00:     12 meses direto com a Net Computadores



Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today?s applications and end users demand. The MegaRAID SAS 9361-16i 12Gb/s RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

-Connect up to 16 SATA or SAS drives via direct connection inside the box or up to 240 drives leveraging SAS expander technology
-Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
-Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
-Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
-Add more protection and peace of mind with optional CacheVault® flash cache protection.

Especificações

Lifecycle Active
Distrib. Inventory No
RAID-on-Chip Controller SAS3316 dual core RAID on Chip (ROC)
Whats in the box MegaRAID SAS 9361-16i, QIG, LP bracket
Generation 12 Gb/s
RAID Management Software LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure)
Cache Protection Optional CacheVault Module (CVPM02)
Physical Dimensions Low profile 6.127? x 2.712?
Host Bus Type x8 lane PCI Express® 3.0
Cache Memory 2GB 1866MHz DDR3 SDRAM
Internal Ports 16
Data Transfer Rates Up to 12Gb/s per port
Devices Supported Up to 240 SATA and/or SAS devices
Internal Connectors 4 Mini-SAS HD SFF8643
MTBF > 2,500,000 hours
Operating Temperature Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (LSICVM02) 55°CMaximum ambient: Controller Card: 60°C (44.5°C with LSIiBBU07)
Operating Voltage (V) 12V, 3.3V
OS Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris? (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems



Maiores detalhes de 05-25708-00 no site do fabricante:
https://www.broadcom.com/products/storage/raid-controllers/megaraid-sas-9361-16i


Tags de 05-25708-00: 05-25708-00, Broadcom 05-25708-00, LSI 05-25708-00, Controladora LSI 05-25708-00, Controladora Broadcom 05-25708-00, Controladora 16 portas, Controladora 16 Canais, Controladora 16 Portas, Controladora SATA 16 Canais, Controlador SAS 16 Portas, LSI Logic, LSI Logic

05-25708-00 Controladora LSI SAS 9361-16I 16 Canais Broadcom 4 X SFF-8643 12Gb/s Low profile

Condição de 05-25708-00:
Novo em embalagem comercial

Garantia  de  05-25708-00:
12 meses direto com a Net Computadores


Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today-s applications and end users demand. The MegaRAID SAS 9361-16i 12Gb/s RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

-Connect up to 16 SATA or SAS drives via direct connection inside the box or up to 240 drives leveraging SAS expander technology
-Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
-Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
-Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
-Add more protection and peace of mind with optional CacheVault® flash cache protection.

Especificações

Lifecycle Active
Distrib. Inventory No
RAID-on-Chip Controller SAS3316 dual core RAID on Chip (ROC)
Whats in the box MegaRAID SAS 9361-16i, QIG, LP bracket
Generation 12 Gb/s
RAID Management Software LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure)
Cache Protection Optional CacheVault Module (CVPM02)
Physical Dimensions Low profile 6.127- x 2.712-
Host Bus Type x8 lane PCI Express® 3.0
Cache Memory 2GB 1866MHz DDR3 SDRAM
Internal Ports 16
Data Transfer Rates Up to 12Gb/s per port
Devices Supported Up to 240 SATA and/or SAS devices
Internal Connectors 4 Mini-SAS HD SFF8643
MTBF > 2,500,000 hours
Operating Temperature Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (LSICVM02) 55°CMaximum ambient: Controller Card: 60°C (44.5°C with LSIiBBU07)
Operating Voltage (V) 12V, 3.3V
OS Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris- (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems



Maiores detalhes de 05-25708-00 no site do fabricante:
https://www.broadcom.com/products/storage/raid-controllers/megaraid-sas-9361-16i


Tags de 05-25708-00: 05-25708-00, Broadcom 05-25708-00, LSI 05-25708-00, Controladora LSI 05-25708-00, Controladora Broadcom 05-25708-00, Controladora 16 portas, Controladora 16 Canais, Controladora 16 Portas, Controladora SATA 16 Canais, Controlador SAS 16 Portas, LSI Logic, LSI Logic
