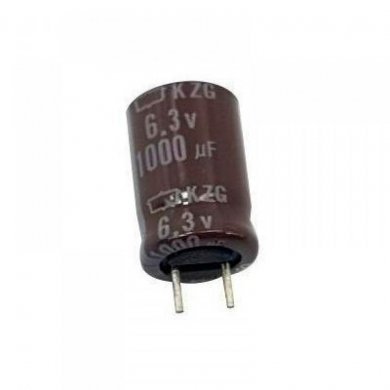

1000X6.3NCC-KZG Capacitor Eletrolitico Nippon Chemi-Con

Name: 1000X6.3NCC-KZG Capacitor Eletrolitico Nippon Chemi-Con
Brand: NIPPON CHEMI-CON
SKU: 1000X6.3NCC-KZG
Price: 1.47 BRL
Availability: InStock

NCC KZG 1000uf x 6.3v LOW ESR Motherboard Capacitor, Category Temperature Range: -40 to 105, 105deg

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 1,47

à vista no Pix ou Boleto

ou R$ 1,55 em 1x no cartão (via site)

ou R$ 1,63 no cartão em até 10x sem juros (apenas na loja física)

R$ 1,47

à vista no Pix ou Boleto

R$ 1,55
em 1x no cartão (via site)

R$ 1,63 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85043119

R$ 1,47

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85043119

Cotação PJ mais de uma unidade

Indicar 1000X6.3NCC-KZG

1000X6.3NCC-KZG Capacitor Eletrolitico Nippon Chemi-Con
NCC KZG 1000uf x 6.3v LOW ESR Motherboard Capacitor, Category Temperature Range: -40 to 105, 105deg

Condição de 1000X6.3NCC-KZG: Novo em embalagem comercial

Garantia de 1000X6.3NCC-KZG: 3 meses direto com a Net Computadores

Nippon Chemi-Con (NCC) is the first class capacitor made in Japan.

This is the Premium grade motherboard capacitor.This series is the BEST in Nippon Chemi-Con (NCC) for motherboard capacitor.The KZG series is also recommended for VRM for higher speed CPUs.The KZG series, which employs a newly developed electrolyte and low resistance paper, are especially aimed for VRM of CPU with high clock frequency. As a higher clock frequency of CPU is required for improved PC performance the capacitors for VRM are required the following characteristics:

-FEATURES
-Super low ESR/impedance capacitors due to very low resistivity electrolyte
-Rated voltage range : 6.3 to 16V, Nominal capacitance range : 470 to 3,300MF
-Endurance with ripple current : 105C 2,000 hours
-The KZG series capacitors are designed for computer motherboards,Non solvent resistant type,RoHS Compliant

Specification.

Items	Units	Performance
Appearance		Radial Lead
Series		KZG
Rated Voltage	(V)	6.3,DC
Rated Capacitance	(F)	1000
Tolerance	(%)	-20 to 20
Category Temperature Range	(degC)	-40 to 105
Life Time	(h)
Size(Diameter)	(mm)	8
Size(Length)	(mm)	11.5
Impedance1	(m-)	0.021(m-MAX/20C, 100kHz)
Impedance2	(m-)	(m-MAX/-10C, 100kHz)
Rated Ripple Current1	(mA r.m.s.)	1310 (Ctgy Temp(105c),100kHz)
Rated Ripple Current2	(mA r.m.s.)
Leakage Current1	(A)Max.
Leakage Current2	(A)	(Rated Voltage,2min)
Dissipation Factor	(DF)	(20degC,120Hz)
Lead Pitch	(mm)	3.5
Weight	(g)
Enviroment
Features		105degC LOW ESR

Tags de 1000X6.3NCC-KZG: 6.3v, ESR, KZG, 1000x6.3NCC-KZG, 1000uf, 1000uf x 6.3v, 1000x6.3, capacitor eletrolitico, capacitor eletrolítico, 105C, Componentes Eletronicos, 1000uf 6,3v, 1000uf 6.3v, NIPPON CHEMI-CON

1000X6.3NCC-KZG Capacitor Eletrolitico Nippon Chemi-Con NCC KZG 1000uf x 6.3v LOW ESR Motherboard Capacitor, Category Temperature Range: -40 to 105, 105deg

Condição de 1000X6.3NCC-KZG:
Novo em embalagem comercial

Garantia de 1000X6.3NCC-KZG:
3 meses direto com a Net Computadores

Items	Units	Performance
Appearance		Radial Lead
Series		KZG
Rated Voltage	(V)	6.3,DC
Rated Capacitance	(F)	1000
Tolerance	(%)	-20 to 20
Category Temperature Range	(degC)	-40 to 105
Life Time	(h)
Size(Diameter)	(mm)	8
Size(Length)	(mm)	11.5
Impedance1	(m-)	0.021(m-MAX/20C, 100kHz)
Impedance2	(m-)	(m-MAX/-10C, 100kHz)
Rated Ripple Current1	(mA r.m.s.)	1310 (Ctgy Temp(105c),100kHz)
Rated Ripple Current2	(mA r.m.s.)
Leakage Current1	(A)Max.
Leakage Current2	(A)	(Rated Voltage,2min)
Dissipation Factor	(DF)	(20degC,120Hz)
Lead Pitch	(mm)	3.5
Weight	(g)
Enviroment
Features		105degC LOW ESR
