Cotações
e dúvidas
e dúvidas
Blindado (Unitário)
R$ 72,00
à vista no Pix ou Boleto
ou R$ 75,50 em 1x no cartão (via site)
ou R$ 79,70 no cartão em até 10x sem juros (apenas na loja física)
R$ 72,00
à vista no Pix ou Boleto
R$ 75,50
em 1x no cartão (via site)
R$ 79,70 no cartão
em até 10x sem juros
(apenas na loja física)
Condição:
Novo em embalagem antiestática
Garantia:
12 meses direto com a Net Computadores
NCM: 85369090
Condição de 1711342-2: Novo em embalagem antiestática
Garantia de 1711342-2: 12 meses direto com a Net Computadores
| Electrical Specifications | |
| ANSI/TIA Category | 6A |
| Current Rating, maximum | 0.75 A |
| Safety Voltage Rating | 150 Vac |
| Transmission Standard | ANSI/TIA-568-C.2 | IEEE 802.3an | IEEE 802.3at | ISO/IEC 11801 Class E |
|
|
|
| Environmental Specifications | |
| Flammability Rating | UL 94 V-0 |
| Operating Temperature | -10 °C to 60 °C ( 14 °F to 140 °F) |
|
|
|
| General Specifications | |
| Cable Type | Shielded |
| Color | Silver |
| Panel Cutout, recommended | 14.78 x 20.07 mm (0.58 x 0.79 in) |
| Panel Thickness, recommended | 1.60 mm |
|
|
|
| Mechanical Specifications | |
| Conductor Gauge, solid | 26-22 AWG |
| Conductor Gauge, stranded | 26-24 AWG |
| Conductor Type | Solid | Stranded |
| Contact Base Material | Beryllium copper |
| Contact Plating Material | Gold |
| Contact Plating Thickness | 1.27 µm |
| Material Type | Zinc alloy |
| Outlet Type | Standard |
| Plug Insertion Life, minimum | 750 times |
| Plug Retention Force, minimum | 30 N | 7 lbf |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Wiring | T568A | T568B |
Maiores detalhes de 1711342-2 no site do fabricante:
https://www.commscope.com/catalog/connectors/product_details.aspx?id=86159
Tags de 1711342-2: 1711342-2, 17113422, 1711342 2, conector rj45 femea amp commscope, conector rj45 femea commscope amp, keystone rj45 amp commscope, keystone rj45 commscope amp, keystone amp cat6a, conector rj45 femea cat6a, conector rj45 femea cat6a amp commscope, conector rj45 femea cat6a commscope amp, keystone rj45 cat6a amp commscope, keystone rj45 cat6a commscope amp, keystone cat6a, conector femea cat6a, conector femea rj45 cat6a, 01711342-2 XG-Cat. 6A, AMP

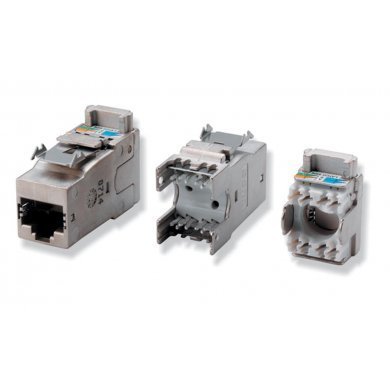

1711342-2 AMP Commscope Conector RJ45 Fêmea CAT6A SL Blindado (Unitário)
Condição de 1711342-2:
Novo em embalagem antiestática
Garantia de 1711342-2:
12 meses direto com a Net Computadores
| Electrical Specifications | |
| ANSI/TIA Category | 6A |
| Current Rating, maximum | 0.75 A |
| Safety Voltage Rating | 150 Vac |
| Transmission Standard | ANSI/TIA-568-C.2 | IEEE 802.3an | IEEE 802.3at | ISO/IEC 11801 Class E |
|
|
|
| Environmental Specifications | |
| Flammability Rating | UL 94 V-0 |
| Operating Temperature | -10 °C to 60 °C ( 14 °F to 140 °F) |
|
|
|
| General Specifications | |
| Cable Type | Shielded |
| Color | Silver |
| Panel Cutout, recommended | 14.78 x 20.07 mm (0.58 x 0.79 in) |
| Panel Thickness, recommended | 1.60 mm |
|
|
|
| Mechanical Specifications | |
| Conductor Gauge, solid | 26-22 AWG |
| Conductor Gauge, stranded | 26-24 AWG |
| Conductor Type | Solid | Stranded |
| Contact Base Material | Beryllium copper |
| Contact Plating Material | Gold |
| Contact Plating Thickness | 1.27 µm |
| Material Type | Zinc alloy |
| Outlet Type | Standard |
| Plug Insertion Life, minimum | 750 times |
| Plug Retention Force, minimum | 30 N | 7 lbf |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Wiring | T568A | T568B |
Maiores detalhes de 1711342-2 no site do fabricante:
https://www.commscope.com/catalog/connectors/product_details.aspx?id=86159
Tags de 1711342-2: 1711342-2, 17113422, 1711342 2, conector rj45 femea amp commscope, conector rj45 femea commscope amp, keystone rj45 amp commscope, keystone rj45 commscope amp, keystone amp cat6a, conector rj45 femea cat6a, conector rj45 femea cat6a amp commscope, conector rj45 femea cat6a commscope amp, keystone rj45 cat6a amp commscope, keystone rj45 cat6a commscope amp, keystone cat6a, conector femea cat6a, conector femea rj45 cat6a, 01711342-2 XG-Cat. 6A, AMP
