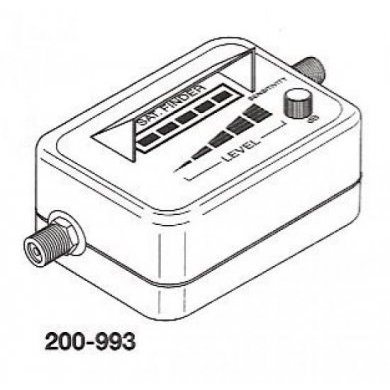

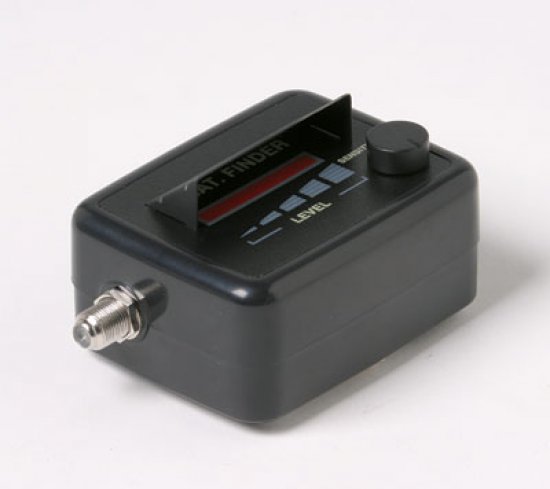

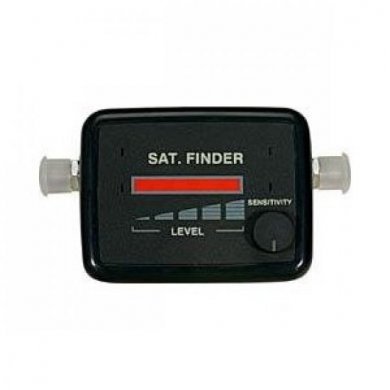

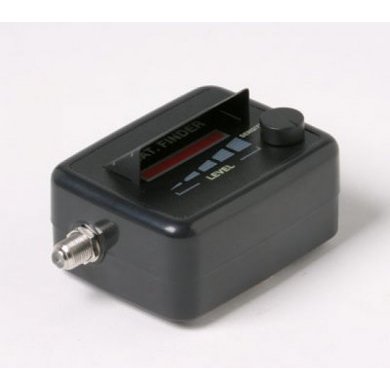

200-993 Steren Buscador de Satélite com Barra de LED

( Steren Satellite Finder with LED Bar-Graph )

200-993 - Steren Electronics
200-993 Steren Buscador de Satélite com Barra de LED
*As imagens podem ser ilustrativas
Steren Buscador de Satélite com Barra de LEDSteren Buscador de Satélite com Barra de LEDSteren Buscador de Satélite com Barra de LEDSteren Buscador de Satélite com Barra de LED

R$ 357,00

à vista no Pix ou Boleto

ou R$ 375,48 em 1x no cartão (via site)

ou R$ 396,34 no cartão em até 10x sem juros (apenas na loja física)

R$ 357,00

à vista no Pix ou Boleto

R$ 375,48
em 1x no cartão (via site)

R$ 396,34 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
3 meses direto com a Net Computadores

NCM:
90303100

R$ 357,00

à vista no pix

Condição:
Novo em embalagem antiestática

Garantia:
3 meses direto com a Net Computadores

NCM: 90303100

200-993 Steren Buscador de Satélite com Barra de LED
( Steren Satellite Finder with LED Bar-Graph )

Condição de 200-993:    Novo em embalagem antiestática

Garantia  de  200-993:     3 meses direto com a Net Computadores



  • Highly sensitive meter
  • Built-in buzzer with pitched tone for alignment reference
  • Front panel sensitivity control
  • RF and DC pass-through 75 950-2050MHz input
  • Sensitivity 7mV@55dB LNB gain 3-carrier C/N 15dB
  • Input level -25 to -75dBm LNB gain 52-60dB
  • Power requirements 13-18VDC
  • Requires 6dB attenuator for 60-65dB LNB gain
Wiring And Operation:
  1. Connect a jump cable from LNB to satellite finders TO LNB input.
  2. Connect the TO REC to a 13V ~ 18V DC power which comes from the satellite receiver.
  3. Make sure that satellite finder is properly connected. Plug in the AC cord and turn on the satellite receiver.
  4. Make coarse dish alignment by setting azimuth and inclination. Turn knob clockwise to make the third LED on.
  5. Adjust dish position, feedhorn position, and polarization to make more of the LEDs turn on.If all LED turn on, turn off the last two LEDs by turning level control counterclockwise.
  6. Remove the jump cable and satellite finder. Resume connection of satellite receiver and LNB.

    IMPORTANTE:
  • Quando utilizar esta unidade para instalar disco C, você não deve colocar o FINDER a partir do disco para evitar todos os LEDs acendam.
    Quando utilizar LNB de alto ganho, que é superior a 60dB, insira atenuador de 5dB entre o LNB e localizador de satélite, ou substitua por uma enlace de cabo de 20 pés RG 59U.
    Se os LED ficarem piscando é sinal de que a sensibilidade está elevada. Abaixe o sinal de entrada através da inserção de um atenuador de passagem entre LNB e localizador por satélite.


Maiores detalhes de 200-993 no site do fabricante:
http://www.sterenusa.com/satellite-finder-meter-0


Tags de 200-993: 200-993, Buscar de Satelite, Medidor de Satelite, Satelite Finder, Satellite, 200-993, Steren Electronics, Steren Electronics

200-993 Steren Buscador de Satélite com Barra de LED ( Steren Satellite Finder with LED Bar-Graph )

Condição de 200-993:
Novo em embalagem antiestática

Garantia  de  200-993:
3 meses direto com a Net Computadores


  • Highly sensitive meter
  • Built-in buzzer with pitched tone for alignment reference
  • Front panel sensitivity control
  • RF and DC pass-through 75 950-2050MHz input
  • Sensitivity 7mV@55dB LNB gain 3-carrier C/N 15dB
  • Input level -25 to -75dBm LNB gain 52-60dB
  • Power requirements 13-18VDC
  • Requires 6dB attenuator for 60-65dB LNB gain
Wiring And Operation:
  1. Connect a jump cable from LNB to satellite finders TO LNB input.
  2. Connect the TO REC to a 13V ~ 18V DC power which comes from the satellite receiver.
  3. Make sure that satellite finder is properly connected. Plug in the AC cord and turn on the satellite receiver.
  4. Make coarse dish alignment by setting azimuth and inclination. Turn knob clockwise to make the third LED on.
  5. Adjust dish position, feedhorn position, and polarization to make more of the LEDs turn on.If all LED turn on, turn off the last two LEDs by turning level control counterclockwise.
  6. Remove the jump cable and satellite finder. Resume connection of satellite receiver and LNB.

    IMPORTANTE:
  • Quando utilizar esta unidade para instalar disco C, você não deve colocar o FINDER a partir do disco para evitar todos os LEDs acendam.
    Quando utilizar LNB de alto ganho, que é superior a 60dB, insira atenuador de 5dB entre o LNB e localizador de satélite, ou substitua por uma enlace de cabo de 20 pés RG 59U.
    Se os LED ficarem piscando é sinal de que a sensibilidade está elevada. Abaixe o sinal de entrada através da inserção de um atenuador de passagem entre LNB e localizador por satélite.


Maiores detalhes de 200-993 no site do fabricante:
http://www.sterenusa.com/satellite-finder-meter-0


Tags de 200-993: 200-993, Buscar de Satelite, Medidor de Satelite, Satelite Finder, Satellite, 200-993, Steren Electronics, Steren Electronics
