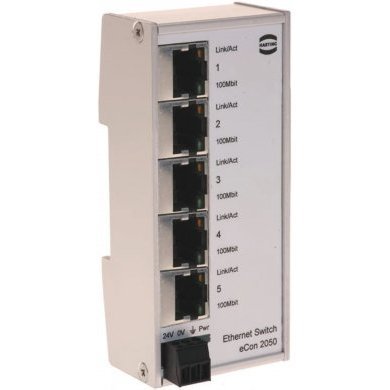

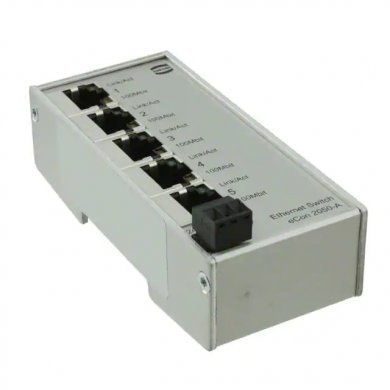

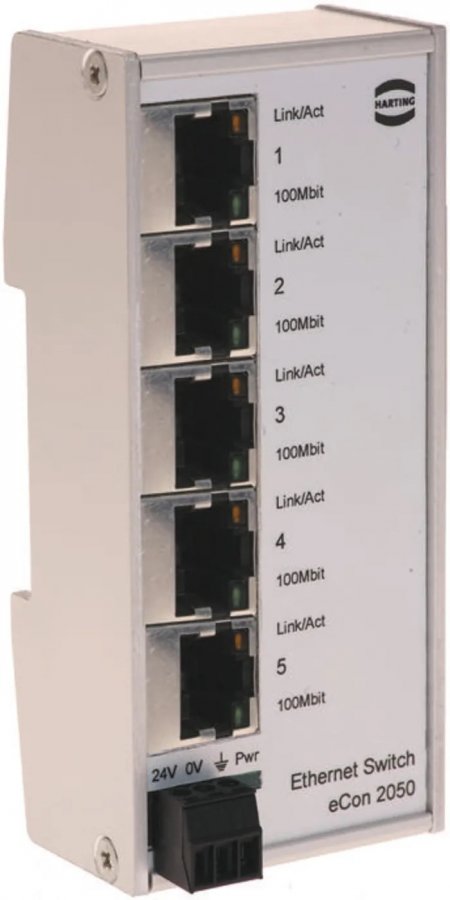

20761053000 Harting Electric Switch industrial 5x 10/100MBps

Switch industrial Ha-VIS eCon 2050A

20761053000 - OEM
20761053000 Harting Electric Switch industrial 5x 10/100MBps
*As imagens podem ser ilustrativas
Harting Electric Switch industrial 5x 10/100MBpsHarting Electric Switch industrial 5x 10/100MBpsHarting Electric Switch industrial 5x 10/100MBps

R$ 442,00

à vista no Pix ou Boleto

ou R$ 464,82 em 1x no cartão (via site)

ou R$ 490,64 no cartão em até 10x sem juros (apenas na loja física)

R$ 442,00

à vista no Pix ou Boleto

R$ 464,82
em 1x no cartão (via site)

R$ 490,64 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
6 meses direto com a Net Computadores

NCM:
85176259

Condição:
Novo reembalado, já aberto por um cliente

Garantia:
6 meses direto com a Net Computadores

NCM: 85176259

20761053000 Harting Electric Switch industrial 5x 10/100MBps
Switch industrial Ha-VIS eCon 2050A

Condição de 20761053000:    Novo reembalado, já aberto por um cliente

Garantia  de  20761053000:     6 meses direto com a Net Computadores



Ethernet Interface
Number of ports: 5x 10/100Base-TX, unmanaged
Cable types acc. to IEEE 802.3: Shielded Twisted Pair (STP) or Unshielded Twisted Pair (UTP),
Category 5
Data rate: 10/100Mbit/s (RJ45)
Maximum cable length: 100 m (Twisted Pair; with cable Category 5 acc. to EN 50 173-1)
Terminating method RJ45 (Twisted Pair)
Diagnostics (via LED)
Status Link - green
Status Data transfer (Act) - green flashing
Data transfer rate (Speed) - 100 Mbit/s: yellow / 10 Mbit/s: OFF
Topology:Line, Star or mixed

Power supply:24 VDC
Permissible range: 9.6 V ... 36 V
Current consumption: 100 mA (at 24 V DC)
Diagnostics (via LED): Power supply
Terminating Power supply: 3-pole pluggable contact (24 V; 0 V; FE)

Design features
Material of housing Aluminium
Dimensions: (W x H x D) 46.5 x 113.5 x 27.3 mm (without connectors)
Degree of protection IP 30
acc. to DIN 60 529

Environmental conditions
Operating temperature     -10 °C ... 70 °C
Storage temperature     -40 °C ... 85 °C
Relative humidity     30 % ... 95 % (non-condensing)

Tags de 20761053000: 20761053000, Unmanaged Ind Ethernet Switch, 5 x 10/100Base-TX, RJ45, switch harting electric industrial, switch industrial ethernet 5 portas, switch harting 5 portas rj45, ha-vis econ 2050-a, ethernet switch e-con switch 100mbit, HARTING 20-76-105-3000, industrial ethernet switches unmanaged fast ethernet, switch industrial 5 portas, switch 5 portas industrial, OEM

20761053000 Harting Electric Switch industrial 5x 10/100MBps Switch industrial Ha-VIS eCon 2050A

Condição de 20761053000:
Novo reembalado, já aberto por um cliente

Garantia  de  20761053000:
6 meses direto com a Net Computadores


Ethernet Interface
Number of ports: 5x 10/100Base-TX, unmanaged
Cable types acc. to IEEE 802.3: Shielded Twisted Pair (STP) or Unshielded Twisted Pair (UTP),
Category 5
Data rate: 10/100Mbit/s (RJ45)
Maximum cable length: 100 m (Twisted Pair; with cable Category 5 acc. to EN 50 173-1)
Terminating method RJ45 (Twisted Pair)
Diagnostics (via LED)
Status Link - green
Status Data transfer (Act) - green flashing
Data transfer rate (Speed) - 100 Mbit/s: yellow / 10 Mbit/s: OFF
Topology:Line, Star or mixed

Power supply:24 VDC
Permissible range: 9.6 V ... 36 V
Current consumption: 100 mA (at 24 V DC)
Diagnostics (via LED): Power supply
Terminating Power supply: 3-pole pluggable contact (24 V; 0 V; FE)

Design features
Material of housing Aluminium
Dimensions: (W x H x D) 46.5 x 113.5 x 27.3 mm (without connectors)
Degree of protection IP 30
acc. to DIN 60 529

Environmental conditions
Operating temperature     -10 °C ... 70 °C
Storage temperature     -40 °C ... 85 °C
Relative humidity     30 % ... 95 % (non-condensing)

Tags de 20761053000: 20761053000, Unmanaged Ind Ethernet Switch, 5 x 10/100Base-TX, RJ45, switch harting electric industrial, switch industrial ethernet 5 portas, switch harting 5 portas rj45, ha-vis econ 2050-a, ethernet switch e-con switch 100mbit, HARTING 20-76-105-3000, industrial ethernet switches unmanaged fast ethernet, switch industrial 5 portas, switch 5 portas industrial, OEM
