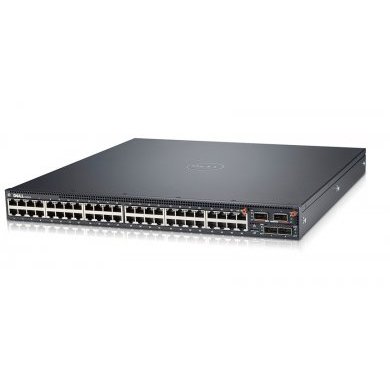

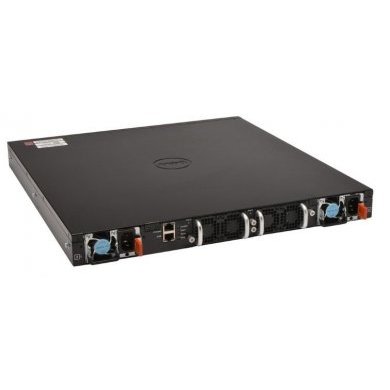

210-ABVU Dell Switch N4064 48 PORTAS 10GB BASE-T



DEVICE TYPE : SWITCH - 48 PORTS - L3 - MANAGED - STACKABLE

ENCLOSURE TYPE : RACK-MOUNTABLE 1U

SUBTYPE : 10 GIGABIT ETHERNET

PORTS : 48 X 10 GIGABIT ETHERNET + 2 X 40 GIGABIT QSFP+

PERFORMANCE : SWITCHING FABRIC BANDWIDTH: 1.28 TBPS ¦ FORWARDING PERFORMANCE: 952 MPPS

CAPACITY : MAC ADDRESSES: 131072 ¦ IPV4 ROUTES (STATIC): 1024 ¦ IPV6 ROUTES (STATIC): 1024 ¦ IPV4 ROUTES (DYNAMIC): 8160 ¦ IPV6 ROUTES (DYNAMIC): 4096 ¦ MAXIMUM MEMBER PORTS PER LAG: 8 ¦ MAXIMUM DYNAMIC PORTS PER SWITCH STACK: 144 ¦ LAG GROUPS: 128 ¦ PRIORITY QUEUES PER PORT: 8 ¦ OSPF ROUTES: 8160 ¦ RIP ROUTES: 512 ¦ ECMP NEXT HOPS PER ROUTE: 4 ¦ ECMP GROUPS: 1024 ¦ VLAN ROUTING INTERFACES: 128 ¦ VLANS SUPPORTED: 4094 ¦ MULTICAST ENTRIES (IPV4): 512 ¦ MULTICAST ENTRIES (IPV6): 256 ¦ ARP ENTRIES: 6144 ¦ NDP ENTRIES: 400 ¦ ACL: 100 ¦ MAXIMUM RULES PER ACL: 1023 ¦ MAX ACL RULES SYSTEM-WIDE: 3072 ¦ MAXIMUM ACL RULES PER INTERFACE (IPV4) EGRESS RULES: 1023 ¦ MAXIMUM ACL RULES PER INTERFACE (IPV4) INGRESS RULES: 2047 ¦ MAXIMUM ACL RULES PER INTERFACE (IPV6) EGRESS RULES: 512 ¦ MAXIMUM ACL RULES PER INTERFACE (IPV6) INGRESS RULES: 1021 ¦ MAXIMUM VLAN INTERFACES WITH ACLS APPLIED: 24

MAC ADDRESS TABLE SIZE : 131072 ENTRIES

ROUTING PROTOCOL : OSPF, RIP-1, RIP-2, IGMPV2, IGMP, VRRP, OSPFV2, PIM-SM, PIM-DM, IGMPV3, OSPFV3, MLDV2, MLD

REMOTE MANAGEMENT PROTOCOL : SNMP 2, SNMP, RMON, HTTP, SSH

ENCRYPTION ALGORITHM : AES, SSL, TLS 1.0

AUTHENTICATION METHOD : RADIUS, TACACS+, LDAP

FEATURES : LAYER 3 SWITCHING, LAYER 2 SWITCHING, MDI/MDI-X SWITCH, AUTO-NEGOTIATION, PORT MIRRORING, STACKABLE, BROADCAST STORM CONTROL, IP ADDRESS FILTERING, ACCESS CONTROL LIST (ACL) SUPPORT, QUALITY OF SERVICE (QOS), DYNAMIC ARP INSPECTION (DAI), LLDP SUPPORT, REMOTE SWITCH PORT ANALYZER (RSPAN), MANAGEMENT INFORMATION BASE (MIB), DUAL FIRMWARE IMAGES, REDUNDANT FANS, MAC AND IP-BASED ACLS SUPPORT, TIME-CONTROLLED ACLS SUPPORT, PROTOCOL-BASED VLANS SUPPORT

COMPLIANT STANDARDS : IEEE 802.2, IEEE 802.3, IEEE 802.3U, IEEE 802.3Z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1P, IEEE 802.3X, IEEE 802.3AD (LACP), IEEE 802.1W, IEEE 802.1X, IEEE 802.3AE, IEEE 802.3AC, IEEE 802.1S, IEEE 802.1V, ANSI/TIA-1057, IEEE 802.1AG, IEEE 802.1AB (LLDP), IEEE 802.3AZ, IEEE 802.1QBB, IEEE 802.1QAZ

RAM : 2 GB

FLASH MEMORY : 256 MB



INTERFACES :

48 X 10GBIT LAN - RJ-45

2 X 40GBIT LAN - QSFP+

1 X GIGABIT LAN - RJ-45 - MANAGEMENT

1 X SERIAL (RS-232) - RJ-45 - MANAGEMENT

1 X USB - TYPE A



EXPANSION SLOTS :

1 (TOTAL) / 1 (FREE) X EXPANSION SLOT



POWER :

POWER DEVICE : INTERNAL POWER SUPPLY - HOT-PLUG

INSTALLED QTY : 2 (INSTALLED) / 2 (MAX)

POWER REDUNDANCY : YES

POWER PROVIDED : 460 WATT

POWER CONSUMPTION OPERATIONAL : 395 WATT
