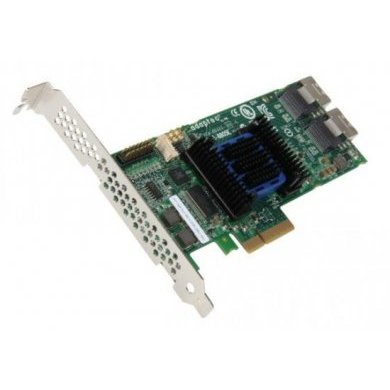

2270900-R Controladora Adaptec 6805E SAS 6GBs

Name: 2270900-R Controladora Adaptec 6805E SAS 6GBs
Brand: Adaptec
SKU: 2270900-R
Price: 1873.00 BRL
Availability: InStock

128Mb Cache, RAID: 0,1,10,1E,JBOD - 2x SFF-8087 para até 8 HDs SAS/SATA

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 1.873,00

à vista no Pix ou Boleto

ou R$ 1.971,39 em 1x no cartão (via site)

ou R$ 2.080,91 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.873,00

à vista no Pix ou Boleto

R$ 1.971,39
em 1x no cartão (via site)

R$ 2.080,91 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo reembalado, já aberto por um cliente

Garantia:

12 meses direto com a Net Computadores

NCM:

84733049

Condição:
Novo reembalado, já aberto por um cliente

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

Cotação PJ mais de uma unidade

Indicar 2270900-R

2270900-R Controladora Adaptec 6805E SAS 6GBs
128Mb Cache, RAID: 0,1,10,1E,JBOD - 2x SFF-8087 para até 8 HDs SAS/SATA

Condição de 2270900-R: Novo reembalado, já aberto por um cliente

Garantia de 2270900-R: 12 meses direto com a Net Computadores

*OBS: Cabos e manual de instalação não inclusos

8 internal port, low-profile MD2 with PCIe x4, SAS 2.0 and Gen 2 PCI-Express (PCIe) Unified Serial RAID controller with On-Board DRAM and Intelligent Power Management delivers the ideal price/performance and connectivity solution for entry-level server platforms, workstations and desktop systems.

Product Name	6805 RAID Entry Single 0/1/10 SATA/SAS
Product Type	SAS RAID Controller
Ports	2 x SFF-8087 SAS 600 - Mini-SAS Internal
Form Factor	Low-profile Plug-in Card
Product Model	6805E
Data Transfer Rate	600 MBps Per Port
Dimensions	2.56 Height x 6.10 Width
RAID Levels	0, 1 , 10, 1E, JBOD
Packaged Quantity	1
Standard Memory	128 MB
Host Interface	PCI Express 2.0 x4
Interfaces	Serial Attached SCSI Serial ATA/600
Drive Support	8
Platform Support	PC SPARC
Number of Ports	2

Operating System
	Microsoft Windows Red Hat Linux SUSE Linux Fedora Debian Linux Ubuntu Linux Sun Solaris FreeBSD VMware ESX For a detailed list see ASK Answer ID 17115.

Benefits
	Ideal for desktop use and entry-level server platforms, workstations or industrial PCs without compromising robust 6Gb/s performance and proven Adaptec reliability.

Key Differentiators
	Intelligent Power Management

Customer Needs
	High I/O transaction and high bandwidth processing; reduces energy consumption

Form Factor
	MD2 - Low Profile

Cache Memory
	128MB

Key RAID Features
	• Supports up to 4 (6405E) or 8 (6805E) SATA or SAS devices • SES and SAF-TE enclosure management • RAID levels 0, 1, 10, 1E, and JBOD • Hybrid RAID 1 & 10 • Quick initialization • Online Capacity Expansion • Copyback Hot Spare • Dynamic caching algorithm • Native Command Queuing (NCQ) • Background initialization • Hot-plug drive support • RAID Level Migration • Hot spares – global, dedicated, and pooled • Automatic/manual rebuild of hot spares • Configurable stripe size • S.M.A.R.T. support • Multiple arrays per disk drive • Dynamic sector repair • Staggered drive spin-up • Bootable array support • Optimized Disk Utilization

Bus System Interface Type
	4-Lane PCIe Gen2

Internal Connectors
	2 internal (SFF-8087) Mini SAS

Data Transfer Rate
	6 Gb/s per port

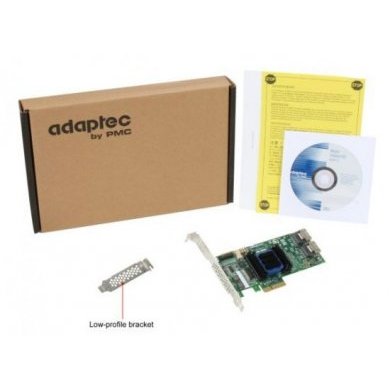

Package Contents
	• Adaptec RAID 6805E Controller • Additional low profile vented bracket • Quick Installation Guide (English/French/German/Italian/Spanish/Japanese) • Software and documentation DVD • Cables: Two mSASx4-4SATA x1-SB (2272300-R), 0.7m • *Singles do not contain cable or Quick Install Guide

Management Utilities

Adaptec Storage Manager™ (ASM)
• Java-based GUI Management Utility
• Remote configuration, monitoring & notification
• ASM OS Support: Windows, Linux, SCO, Solaris, FreeBSD
• Microsoft VDS Support
• SNMP, SMTP
• Remote firmware updates
ARCCONF
• Command Line Interface
• SMI-S support for VMware
Adaptec BIOS Configuration Utility (ACU)
• BIOS level configuration utility
• Flashable BIOS support

Physical Size

2.535”H x 6.095”L (64mm x 155mm)

Operating Temperature

0°C to 55°C (with 200 LFM airflow)

Operating Voltage

0.125A @ 3.3VDC
0.80A @ 12VDC measured on PCIe Gen2 systems with 6G drives

Regulatory Certification

CE, FCC, UL, C-tick, VCCI, KCC

Environmental Compliance

RoHS, REACH

Mean Time Before Failure (MTBF)

860,953 hours at 40 degree C.
