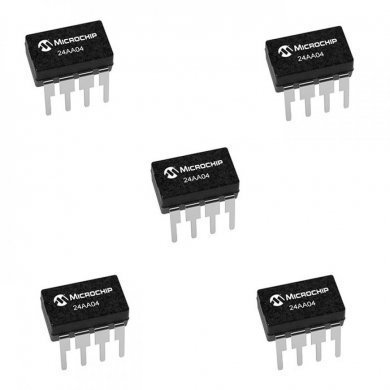

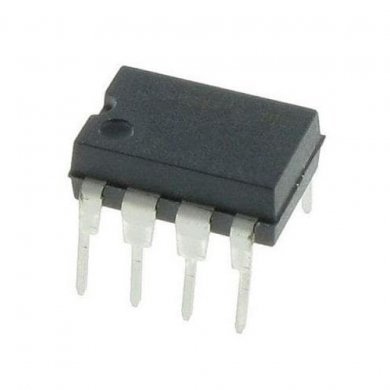

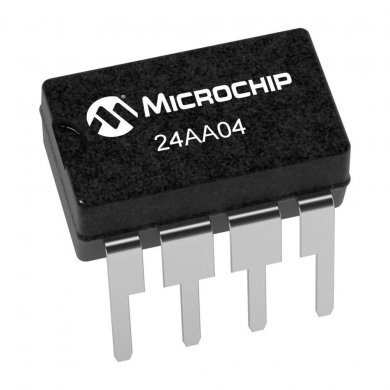

24AA04/P CI EEPROM 512x8 i2C (Kit com 5 unidades)

Name: 24AA04/P CI EEPROM 512x8 i2C (Kit com 5 unidades)
Brand: Microchip
SKU: 24AA04/P
Price: 20.00 BRL
Availability: InStock

4K 512x8 1.8V to 5.5V SERIAL EE

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 20,00

à vista no Pix ou Boleto

ou R$ 21,05 em 1x no cartão (via site)

ou R$ 22,22 no cartão em até 10x sem juros (apenas na loja física)

R$ 20,00

à vista no Pix ou Boleto

R$ 21,05
em 1x no cartão (via site)

R$ 22,22 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 20,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre

Cotação PJ mais de uma unidade

Indicar 24AA04/P

24AA04/P CI EEPROM 512x8 i2C (Kit com 5 unidades)
4K 512x8 1.8V to 5.5V SERIAL EE

Condição de 24AA04/P: Novo em embalagem comercial

Garantia de 24AA04/P: 3 meses direto com a Net Computadores

Outros PNs para este item: 24C04, ATMEL538 24C04

Kit com 5 unidades

The Microchip Technology Inc. 24AA04 is a 4Kb I2C- compatible Serial EEPROM. The device is organized as two blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 A and 1 mA, respectively. The 24AA04 also has a page write capability for up to 16 bytes of data. The 24XX04 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN and MSOP packages and is also available in the 5-lead SOT-23 package.

Single supply with operation down to 1.7V
Low-power CMOS technology:
2-wire serial interface, I2C- compatible
Schmitt Trigger inputs for noise suppression
Output slope control to eliminate ground bounce
100 kHz and 400 kHz clock compatibility
Page write time 3 ms, typical
Self-timed erase/write cycle
16-byte page write buffer
Hardware write-protect
ESD protection >4,000V
More than 1 million erase/write cycles
Data retention >200 years

Manufacturer:	Microchip
Product Category:	EEPROM
RoHS:
Mounting Style:	Through Hole
Package / Case:	PDIP-8
Interface Type:	2 Wire I2C
Memory Size:	4 kbit
Organization:	512 x 8
Supply Voltage - Min:	1.8 V
Supply Voltage - Max:	5.5 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	70 C
Maximum Clock Frequency:	100 kHz
Access Time:	900 ns
Data Retention:	200 Year
Supply Current - Max:	1 mA
Series:	24AA04
Packaging:	Tube
Brand:	Microchip Technology
Height:	3.3 mm
Length:	9.4 mm
Operating Supply Current:	0.1 mA, 0.05 mA
Operating Supply Voltage:	1.8 V to 5.5 V
Product Type:	EEPROM
Programming Voltage:	1.7 V to 5.5 V

Kit com 5 unidades

Maiores detalhes de 24AA04/P no site do fabricante:
https://www.microchip.com/en-us/product/24AA04

Vídeo de 24AA04/P CI EEPROM 512x8 i2C (Kit com 5 unidades)

Tags de 24AA04/P: 24AA04/P, 24AA04, 24AA04P, 24AA04-P, 24AA024HT-I/ST, 24AA024HT-I, 24AA024HT, 24AA02 SMD, 24AA04T-I/MNY, 24AA04/SN, 24AA04-I/MC, pic 8 pinos, pic 8 terminais, 4Kb I2C compatible 2-wire Serial EEPROM, Microchip

24AA04/P CI EEPROM 512x8 i2C (Kit com 5 unidades) 4K 512x8 1.8V to 5.5V SERIAL EE

Condição de 24AA04/P:
Novo em embalagem comercial

Garantia de 24AA04/P:
3 meses direto com a Net Computadores

Outros PNs para este componente: 24C04, ATMEL538 24C04

Single supply with operation down to 1.7V
Low-power CMOS technology:
2-wire serial interface, I2C- compatible
Schmitt Trigger inputs for noise suppression
Output slope control to eliminate ground bounce
100 kHz and 400 kHz clock compatibility
Page write time 3 ms, typical
Self-timed erase/write cycle
16-byte page write buffer
Hardware write-protect
ESD protection >4,000V
More than 1 million erase/write cycles
Data retention >200 years

Manufacturer:	Microchip
Product Category:	EEPROM
RoHS:
Mounting Style:	Through Hole
Package / Case:	PDIP-8
Interface Type:	2 Wire I2C
Memory Size:	4 kbit
Organization:	512 x 8
Supply Voltage - Min:	1.8 V
Supply Voltage - Max:	5.5 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	70 C
Maximum Clock Frequency:	100 kHz
Access Time:	900 ns
Data Retention:	200 Year
Supply Current - Max:	1 mA
Series:	24AA04
Packaging:	Tube
Brand:	Microchip Technology
Height:	3.3 mm
Length:	9.4 mm
Operating Supply Current:	0.1 mA, 0.05 mA
Operating Supply Voltage:	1.8 V to 5.5 V
Product Type:	EEPROM
Programming Voltage:	1.7 V to 5.5 V
