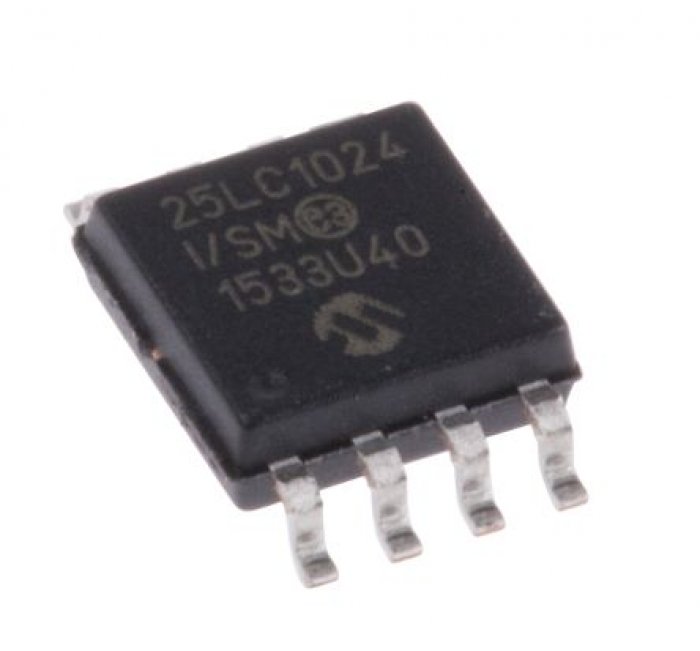

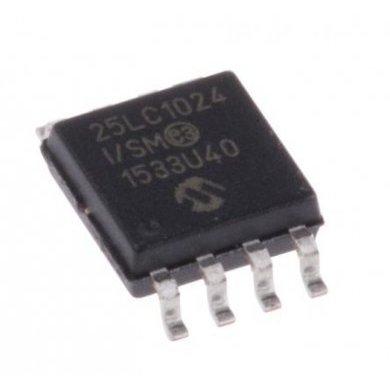

25LC1024-I/SM Microchip EEPROM Serial BUS SPI 20Mhz

1 Mbit (128K x 8) 5.5V SMT SOIJ-8

25LC1024-I/SM Microchip EEPROM Serial BUS SPI 20Mhz

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 17,00

à vista no Pix ou Boleto

ou R$ 17,59 em 1x no cartão (via site)

ou R$ 18,56 no cartão em até 10x sem juros (apenas na loja física)

R$ 17,00

à vista no Pix ou Boleto

R$ 17,59
em 1x no cartão (via site)

R$ 18,56 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85044060

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85044060

Cotação PJ mais de uma unidade

Indicar 25LC1024-I/SM

25LC1024-I/SM Microchip EEPROM Serial BUS SPI 20Mhz
1 Mbit (128K x 8) 5.5V SMT SOIJ-8

Condição de 25LC1024-I/SM: Novo em embalagem comercial

Garantia de 25LC1024-I/SM: 3 meses direto com a Net Computadores

The 25LC1024 is a 1024 Kbit serial EEPROM memory with byte-level and pagelevel serial EEPROM s. It also features Page, Sector and Chip erase s typically associated with Flash-based products.

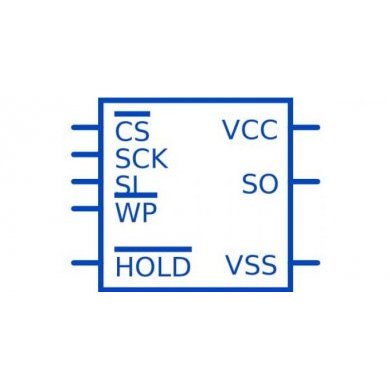

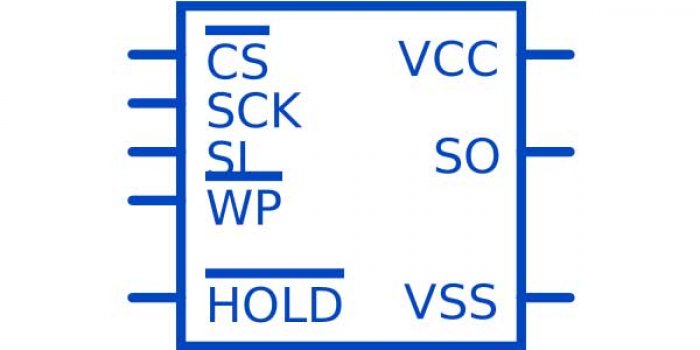

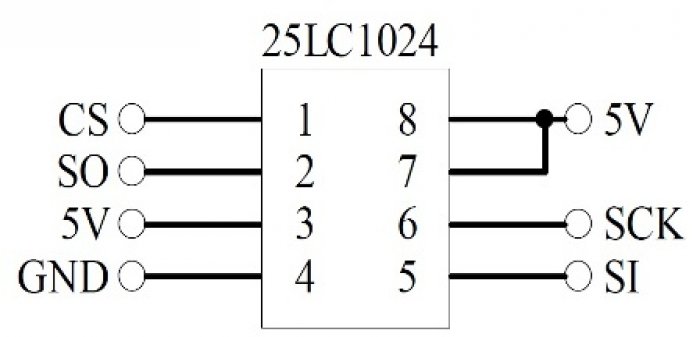

These s are not required for byte or page write operations. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled by a Chip Select (CS) input.
Communication to the device can be paused via the hold pin (HOLD). While the device is paused, transitions on its inputs will be ignored, with the exception of Chip Select, allowing the host to service higher priority interrupts. The 25LC1024 is available in standard packages including 8-lead PDIP and SOIJ, and advanced 8-lead DFN package. All devices are Pb-free
Features:

20 MHz max. Clock Speed
Byte and Page-level Write Operations:
- 256 byte page
- 6 ms max. write cycle time
- No page or sector erase required
Low-Power CMOS Technology:
- Max. Write current: 5 mA at 5.5 V, 20 MHz
- Read current: 7 mA at 5.5 V, 20 MHz
- Standby current: 1 -A at 2.5 V (Deep power-down)
Electronic Signature for Device ID
Self-Timed Erase and Write Cycles:
- Page Erase (6 ms max.)
- Sector Erase (10 ms max.)
- Chip Erase (10 ms max.)
Sector Write Protection (32K byte/sector):
- Protect none, 1/4, 1/2 or all of array
Built-In Write Protection:
- Power-on/off data protection circuitry
- Write enable latch
- Write-protect pin
High Reliability:
- Endurance: 1 M erase/write cycles
- Data Retention: >200 years
- ESD Protection: >4000 V
Temperature Ranges Supported:
Pb-Free and RoHS Compliant

Vídeo de 25LC1024-I/SM Microchip EEPROM Serial BUS SPI 20Mhz

Tags de 25LC1024-I/SM: 25LC1024-I/SM, 25LC1024-I, 25LC1024, 1 Mbit, 1Mbit, SMT SOIJ-8, 25LC1024-ISM, 579-25LC1024-E/SM, 25LC1024ISM, 25LC1024, OEM, Microchip

25LC1024-I/SM Microchip EEPROM Serial BUS SPI 20Mhz 1 Mbit (128K x 8) 5.5V SMT SOIJ-8

Condição de 25LC1024-I/SM:
Novo em embalagem comercial

Garantia de 25LC1024-I/SM:
3 meses direto com a Net Computadores

20 MHz max. Clock Speed
Byte and Page-level Write Operations:
- 256 byte page
- 6 ms max. write cycle time
- No page or sector erase required
Low-Power CMOS Technology:
- Max. Write current: 5 mA at 5.5 V, 20 MHz
- Read current: 7 mA at 5.5 V, 20 MHz
- Standby current: 1 -A at 2.5 V (Deep power-down)
Electronic Signature for Device ID
Self-Timed Erase and Write Cycles:
- Page Erase (6 ms max.)
- Sector Erase (10 ms max.)
- Chip Erase (10 ms max.)
Sector Write Protection (32K byte/sector):
- Protect none, 1/4, 1/2 or all of array
Built-In Write Protection:
- Power-on/off data protection circuitry
- Write enable latch
- Write-protect pin
High Reliability:
- Endurance: 1 M erase/write cycles
- Data Retention: >200 years
- ESD Protection: >4000 V
Temperature Ranges Supported:
Pb-Free and RoHS Compliant
