25R8071 HBA IBM SAS/SATA RAID 3Gbps

Name: 25R8071 HBA IBM SAS/SATA RAID 3Gbps
Brand: IBM
SKU: 25R8071
Price: 511.00 BRL
Availability: InStock

PCI-E x8, RAID 0/1/1E - 4 Conectores Internos SATAII / 1 Conector Externo SAS SFF-8088 (Somente Esp

clique para ampliar

*As imagens podem ser ilustrativas

envio de 20 a 40 dias uteis

R$ 511,00

à vista no Pix ou Boleto

ou R$ 537,38 em 1x no cartão (via site)

ou R$ 567,24 no cartão em até 10x sem juros (apenas na loja física)

R$ 511,00

à vista no Pix ou Boleto

R$ 537,38
em 1x no cartão (via site)

R$ 567,24 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem antiestática

Garantia:

12 meses direto com a Net Computadores

NCM:

84733049

R$ 511,00

à vista no pix

Comprar

Condição:
Novo em embalagem antiestática

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

Cotação PJ mais de uma unidade

Indicar 25R8071

25R8071 HBA IBM SAS/SATA RAID 3Gbps
PCI-E x8, RAID 0/1/1E - 4 Conectores Internos SATAII / 1 Conector Externo SAS SFF-8088 (Somente Esp

Condição de 25R8071: Novo em embalagem antiestática

Garantia de 25R8071: 12 meses direto com a Net Computadores

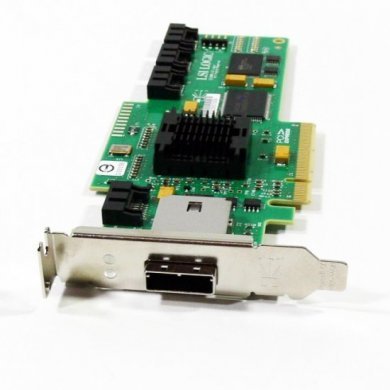

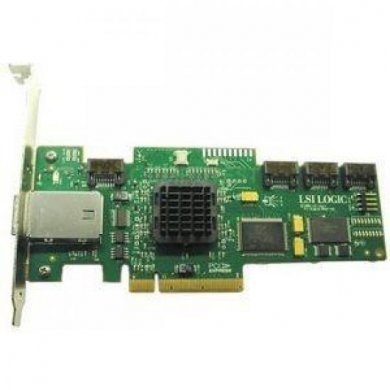

The IBM SAS HBA Controller (part number 25R8060 - 25R8071) provides an ideal solution for all servers and workstations needing ultra high speed data transfer in disk connectivity for data backup and mission critical applications. The low cost, host bus adapter supports direct attach to internal SAS/SATA II HDDs and tape or external tape and storage controller.

The PCI small form factor IBM SAS HBA Controller is based on LSI 1068E SAS processor offering. It can handle medium to large capacity server storage applications by connecting an 8 lane PCI-Express adapter with one external x4 SFF-8088 connector and four x1 internal 7 pin connectors. Specialized development on the IBM SAS HBA Controller enables support for integrated RAID 0, 1, 1E on System x3105 and System x3455 for an added overhead savings at lowest possible cost for high computing systems.

Features
3Gbps per SAS port
PCI-E small form-factor design (MD-2)
Four x1 internal 7 pin connectors / one x4 external SFF8088
8-lane 2.5 Gbps PCI-Express
Connects to both SAS and SATA HDDs and tape drives
Connects to external storage controllers via optional mini-sas cable
Integrated RAID 0, 1, 1E for specific systems
Supports all major operating systems including Open source drivers for Linux

Supported tape attach for IBM System x3105, x3400, x3500, x3455, x3550, x3650, x3655, x3755 Supported HDD attach with Integrated RAID 0, 1, 1E for only IBM System x3105, x3455. System Management provided via LSI Logics mini agent and My Storage management software, providing high-performance data protection in an easy-to-use package. With rigorous testing by IBM through the ServerProven program, you can maintain a high degree of confidence that your System x server storage subsystem is compatible and will reliably. The IBM SAS HBA Controller includes a one-year, limited warranty(1).

Maiores detalhes de 25R8071 no site do fabricante:
http://www-947.ibm.com/support/entry/portal/docdisplay?lndocid=migr-65573

Tags de 25R8071: SAS3444E, LSI 1068E, LSI SAS3444E, SFF8088, SFF-8088, SFF 8088, Mini Sas, 25R8071, 25R8060, x3105, x3400, x3500, x3455, x3550, x3650, x3655, x3755, Controladora HBA, Controladora de Backup, Placa HBA, L3-00124-01F, 25R8070, SAS3444E, IBM
