29F400TTC-70 Memoria Macronix 4Mbit MX29F400CTTI

NOR Flash Parallel 5V 4Mbit 512K x 8/256K x 16 70ns TSOP-48

29F400TTC-70 - Macronix
29F400TTC-70 Memoria Macronix 4Mbit MX29F400CTTI
29F400TTC-70 Memoria Macronix 4Mbit MX29F400CTTI
clique para ampliar
*As imagens podem ser ilustrativas
29F400TTC-70 Memoria Macronix 4Mbit MX29F400CTTI
29F400TTC-70 Memoria Macronix 4Mbit MX29F400CTTI
29F400TTC-70 Memoria Macronix 4Mbit MX29F400CTTI
29F400TTC-70 Memoria Macronix 4Mbit MX29F400CTTI
29F400TTC-70 Memoria Macronix 4Mbit MX29F400CTTI
29F400TTC-70 Memoria Macronix 4Mbit MX29F400CTTI

R$ 13,00

à vista no Pix ou Boleto

ou R$ 13,68 em 1x no cartão (via site)

ou R$ 14,44 no cartão em até 10x sem juros (apenas na loja física)

R$ 13,00

à vista no Pix ou Boleto

R$ 13,68
em 1x no cartão (via site)

R$ 14,44 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
3 meses direto com a Net Computadores

NCM:
85423120

R$ 13,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423120

Comprar via
MERCADO LIVRE
29F400TTC-70 Memoria Macronix 4Mbit MX29F400CTTI
NOR Flash Parallel 5V 4Mbit 512K x 8/256K x 16 70ns TSOP-48

Condição de 29F400TTC-70:    Novo em embalagem comercial

Garantia  de  29F400TTC-70:     3 meses direto com a Net Computadores



FEATURES
524,288 x 8/262,144 x 16 switchable
Single power supply operation
- 5.0V only operation for read, erase and program operation

Fast access time: 55/70/90/120ns

Low power consumption
- 40mA maximum active current(5MHz)
- 1uA typical standby current

Command register architecture
- Byte/word Programming (7us/12us typical)
- Sector Erase (Sector structure 16K-Bytex1, 8K-Bytex2, 32K-Bytex1, and 64K-Byte x7)

Auto Erase (chip e sector) and Auto Program
- Automatically erase any combination of sectors with

Erase Suspend capability.
- Automatically program and verify data at specified address

Erase suspend/Erase Resume
- Suspends an erase operation to read data from, or program data to, another sector that is not being erased, then resumes the erase.

Status Reply
- Data polling erase e Toggle bit for detection of program and cycle completion.

Ready/Busy pin (RY/BY)
- Provides a hardware method of detecting program or erase cycle completion.
- Sector protect/unprotect for 5V only system or 5V/12V system.

Sector protection
- Hardware method to disable any combination of sectors from program or erase operations

100,000 minimum erase/program cycles

Latch-up protected to 100mA from -1V to VCC 1V

Boot Code Sector Architecture
- T Top Boot Sector
- B Bottom Boot Sector

Low VCC write inhibit is equal to or less than 3.2V

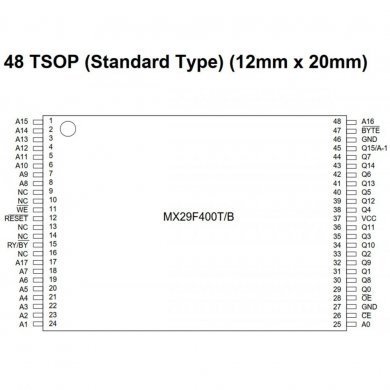

Package type:
- 48-pin TSOP

Compatibility with JEDEC standard
- Pinout and software compatible with single-power supply Flash

20 years data retention

Tags de 29F400TTC-70: MX29F400TTC70, 29F400TTC-70, 29F400TTC70, 29F400TTC, MX29LV160DTTI-70G-TR, MX29F400T/B, eprom 4Mbit, eprom 4MB, memoria Flash 4Mbit, memoria flash 4MB, memoria NAND 4Mb, memoria Nand 4Mbit, Macronix

29F400TTC-70 Memoria Macronix 4Mbit MX29F400CTTI NOR Flash Parallel 5V 4Mbit 512K x 8/256K x 16 70ns TSOP-48

Condição de 29F400TTC-70:
Novo em embalagem comercial

Garantia  de  29F400TTC-70:
3 meses direto com a Net Computadores


FEATURES
524,288 x 8/262,144 x 16 switchable
Single power supply operation
- 5.0V only operation for read, erase and program operation

Fast access time: 55/70/90/120ns

Low power consumption
- 40mA maximum active current(5MHz)
- 1uA typical standby current

Command register architecture
- Byte/word Programming (7us/12us typical)
- Sector Erase (Sector structure 16K-Bytex1, 8K-Bytex2, 32K-Bytex1, and 64K-Byte x7)

Auto Erase (chip e sector) and Auto Program
- Automatically erase any combination of sectors with

Erase Suspend capability.
- Automatically program and verify data at specified address

Erase suspend/Erase Resume
- Suspends an erase operation to read data from, or program data to, another sector that is not being erased, then resumes the erase.

Status Reply
- Data polling erase e Toggle bit for detection of program and cycle completion.

Ready/Busy pin (RY/BY)
- Provides a hardware method of detecting program or erase cycle completion.
- Sector protect/unprotect for 5V only system or 5V/12V system.

Sector protection
- Hardware method to disable any combination of sectors from program or erase operations

100,000 minimum erase/program cycles

Latch-up protected to 100mA from -1V to VCC 1V

Boot Code Sector Architecture
- T Top Boot Sector
- B Bottom Boot Sector

Low VCC write inhibit is equal to or less than 3.2V

Package type:
- 48-pin TSOP

Compatibility with JEDEC standard
- Pinout and software compatible with single-power supply Flash

20 years data retention

Tags de 29F400TTC-70: MX29F400TTC70, 29F400TTC-70, 29F400TTC70, 29F400TTC, MX29LV160DTTI-70G-TR, MX29F400T/B, eprom 4Mbit, eprom 4MB, memoria Flash 4Mbit, memoria flash 4MB, memoria NAND 4Mb, memoria Nand 4Mbit, Macronix
