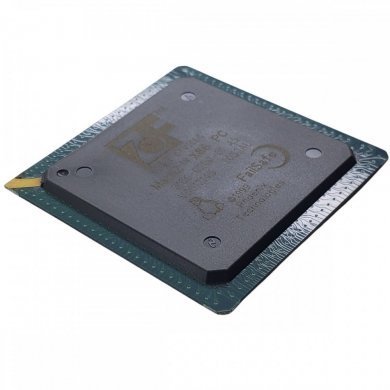

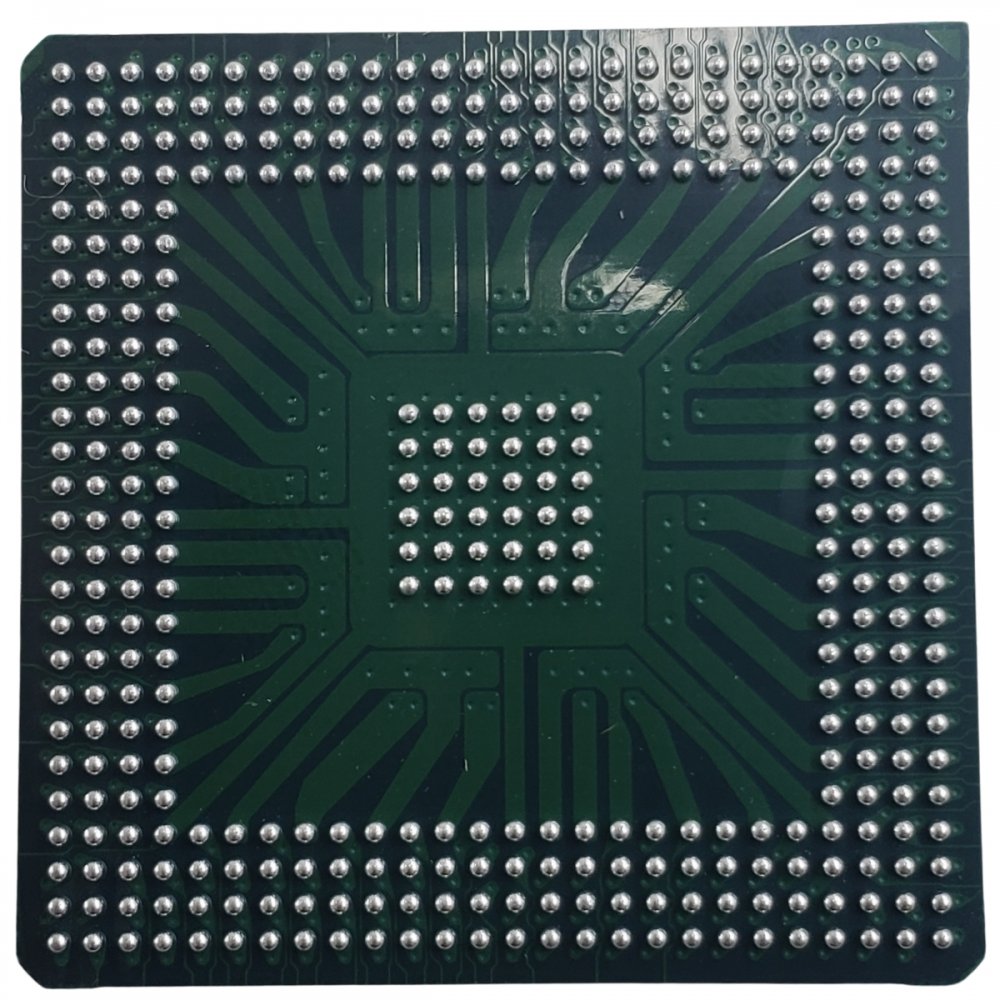

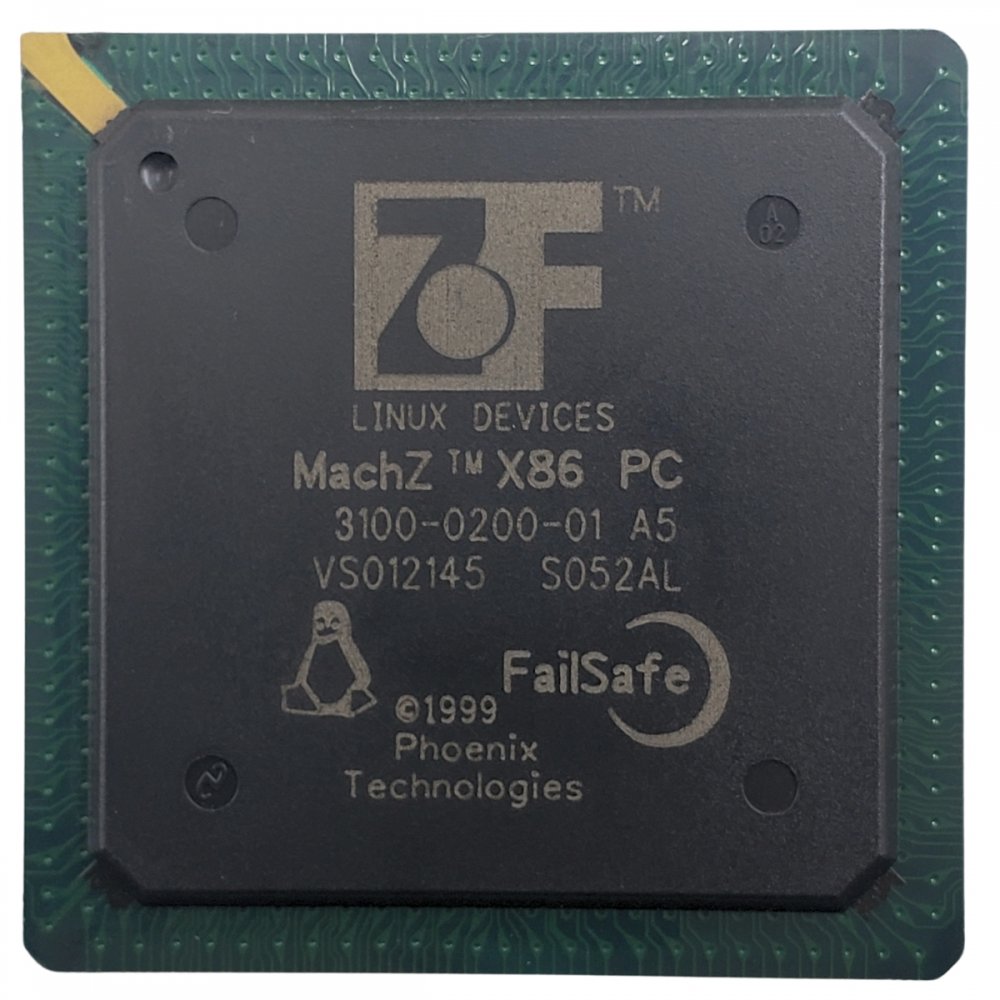

3100-0200-01 Processador ZFx86 486 32Bit 1W 100MHz BGA388i
Condição de 3100-0200-01:
Novo em embalagem antiestática
Garantia de 3100-0200-01:
3 meses direto com a Net Computadores
Outros PNs para este componente: 3100-0200-01 A5
Features
- Unequaled set of traditional PC H/W
- Ultra-low power less than 1W at 100MHz
- Lowest BOM cost in embedded market lowest
- OEM product cost Long product life process, packaging technology and roadmap ensure long-term availability
- System level architecture to minimize integration complexity
- FailSafe PC BIOS DR-DOS with features unique to embedded market (included with every ZFx86)
- DR-DOS 7.03 license included with every ZFx86
- BIOS supports CPU, support logic, super I/O devices, IRQ routing, boot block, setup, BIOS messages, POST tasks/codes, runtime services, interrupt vectors, BIOS data area, and extended BIOS data areas.
- Proven standard architecture both ISA and PCI fully implemented
- Shortest Time to Market
- Faster Design Cycle
- 186, 286, 386 e 486 Code Compatible
A True x86 System-on-a-Chip
Regardless of the level is a system until it boots. The ZFx86 is the only SOC that has includes a fully implemented BIOS with license included shortens integration, no processor an internal BOOT ROM that ensures your system will always be accessible, even if all external Flash memory has been corrupted. No other SOC Shortest Time to Market Faster Design Cycle 186, 286, 386
THE FIRST TRUE PC SYSTEM-ON-A-CHIP
Designed expressly for embedded applications. The ZFx86 PC-compatible microcontroller was designed from the ground up with the industrys most comprehensive set of traditional X86 PC ality. Unique proprietary FailSafe System features resolve the most critical issues that can stand in the way of creating successful and reliable OEM products.
ULTRA LOW POWER
Ideally suited to applications where low power is required for long battery life or in harsh environments where airflow for heat dissipation is restricted and heatsinks and fans are unacceptable.
INDUSTRY STANDARD ARCHITECTURE COMPLETELY IMPLEMENTED
The PC is the architecture of choice for embedded applications because of ease of software development, low manufacturing system cost and fast time-to-market. If the embedded processor selected is not fully PC compatible all these key measures of success can be lost.
ZFx86 provides the ultimate combination of a high integration device at the lowest BOM cost in the industry without sacrificing full PC compatibility. There are no multiplexed signals, no missing interrupts, and a full complement of standard peripherals. It is the fastest, most cost-effective means of integrating full PC motherboard ality in an OEM product.

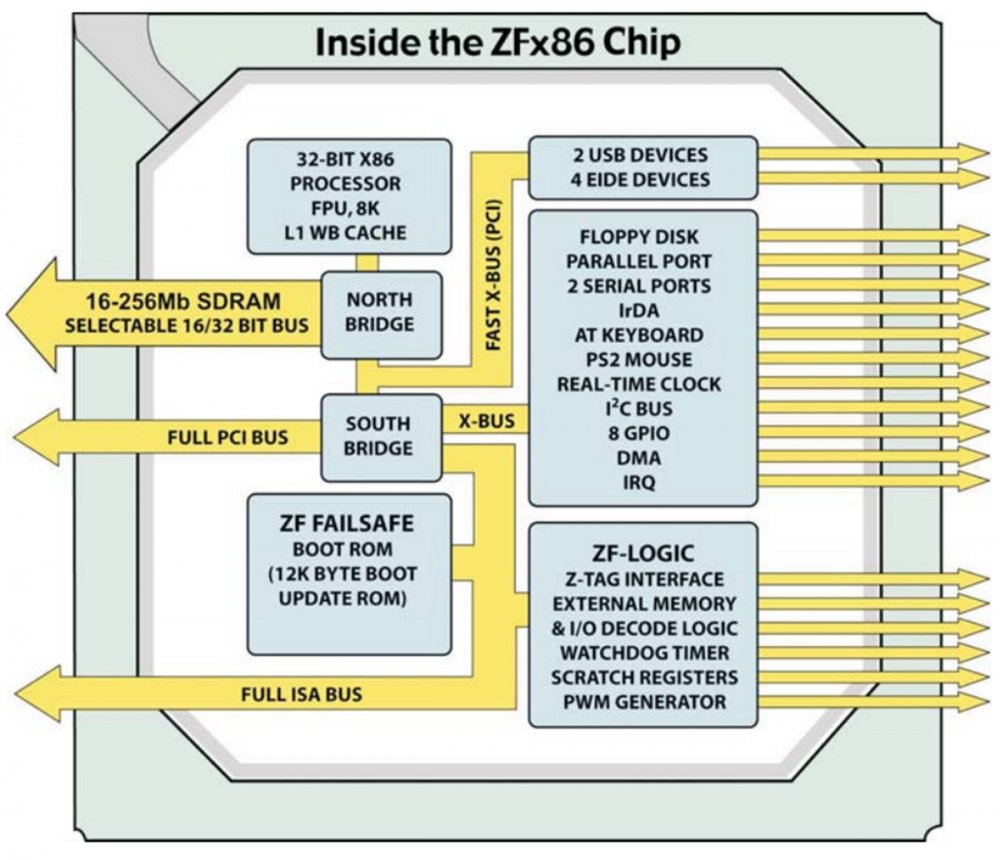

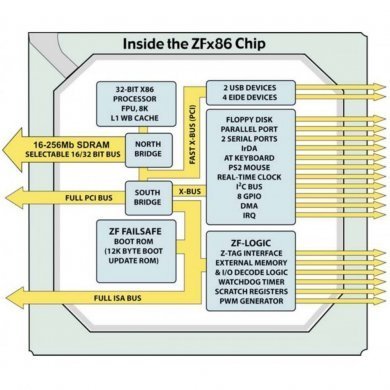

A high speed 32 bit processor is married to a superior SDRAM memory controller and a PCI expansion bus with an Ultra DMA IDE controller. A full ISA bus brings with it all the well-understood ISA devices to help solve many of the potential challenges unique to embedded applications. Enhanced with such ZF proprietary embedded features as FailSafe Boot ROM, the Z-tag interface, Dual Watchdog timer and ZF-Logic, integrated ISA bus decoding, ZFx86 allows for seamless and glueless system integration.
By combining the hardware and software needed to implement full PC compatibility in a single device, it lowers the exposure to development risks and significantly reduces time-to-market. This unique integrated design makes it ideal for applications that require computing intensive processes, low power consumption, high reliability and a small overall product size.
This unique integrated design makes it ideal for applications that require computing intensive processes, low power consumption, high reliability and a small overall product size. Since the ZFx86 is fully PC compatible you gain access to:
- The widest selection of hardware and software available.
- Proven architecture supported by hundreds of ISA, PCI, USB and I2C bus suppliers.
- Cost-effective, readily available development tools and operating systems.
Its Not a System Until It Boots
No processor regardless of the level of integrationis a system until it boots. If it doesnt come with a fully implemented PC BIOS and an operating system it wont run. ZFx86 is the first and only System-on-a-Chip that includes the BIOS and operating system software combined with an internal FailSafe boot ROM that ensures that your system will always be accessible, even if all external Flash memory has been corrupted.
Software Compatibility
The ZFx86 is fully compatible with all standard PC software. It will run any standard operating system capable of running on a fully compatible PC with FPU such as Linux, DOS, many RTOS, and Windows CE, Windows 9x, and Windows NT.
Maiores detalhes de 3100-0200-01 no site do fabricante:
https://www.zfmicro.com/zfx86.html
Tags de 3100-0200-01: 3100-0200-01 A5, 3100-0200-01 B1, 3100-0200-01-A5, 3100-0200-01-B1, 3100-0200-01, MZ104+ PC/104+ Computer TRI-M ZFx86, ZFx86 CPU, A True x86, 486 CPU, CPU Shack, Cyrix Cx486DX, BIOS ON CHIP, System-on-a-Chip, ZF Micro Solutions Inc, microcontrolador, ZF86, MCU, EEEPC, ZFX86-BGA388-C, ZF micro, ZFx86 486 PC-in-a-Chip, CHP-ZFX86-XXX, ZF Micro Devices
