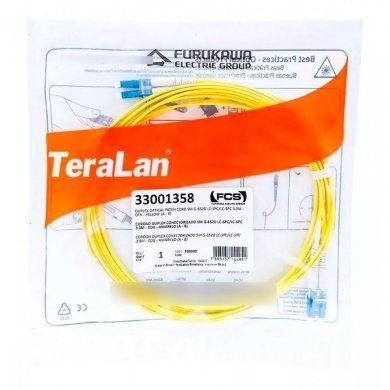

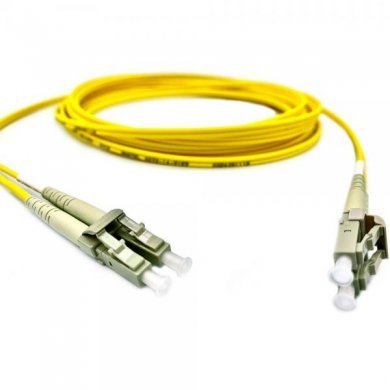

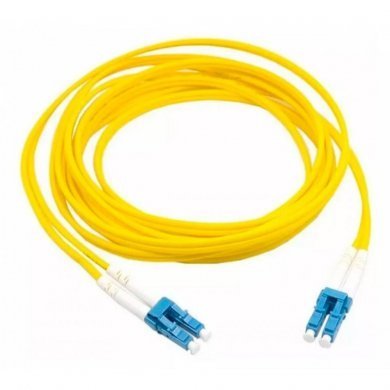

33001358 Furukawa Cordão Duplex Monomodo LC/LC-SPC 3M

Name: 33001358 Furukawa Cordão Duplex Monomodo LC/LC-SPC 3M
Brand: Furukawa
SKU: 33001358
Price: 88.00 BRL
Availability: InStock

2 fibras 9/125 LC para LC polimento SPC COG, cor Amarelo 3 metros

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 88,00

à vista no Pix ou Boleto

ou R$ 92,34 em 1x no cartão (via site)

ou R$ 97,48 no cartão em até 10x sem juros (apenas na loja física)

R$ 88,00

à vista no Pix ou Boleto

R$ 92,34
em 1x no cartão (via site)

R$ 97,48 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses Assist. Técnica do Fabricante

NCM:

85447010

Condição:
Novo em embalagem comercial

Garantia:
12 meses Assist. Técnica do Fabricante

NCM: 85447010

Cotação PJ mais de uma unidade

Indicar 33001358

33001358 Furukawa Cordão Duplex Monomodo LC/LC-SPC 3M
2 fibras 9/125 LC para LC polimento SPC COG, cor Amarelo 3 metros

Condição de 33001358: Novo em embalagem comercial

Garantia de 33001358: 12 meses Assist. Técnica do Fabricante

Description
Optical Patchcord is a single fiber or duplex cable with optical connectors on both
side

Advantage
Recommended for internal use only, interconnecting optical internal
distributors with networking equipments, in optical systems with low loss and
high bandwidth, like: high distance systems, backbone networks, video and
data transmission and distribution;
Exceeds performance requirements of EIA/TIA-568-C.3 standard;
Support for background requirements of IEEE 802.3 (Gigabit and 10 Gigabit
Ethernet) , ANSI T11.2 (Fibre Channel) standard and ITU-T-G-984 ;
Full assembled and tested in factory;
High performance for insertion loss and xx loss (backreflection);
Avaiable in diverse kinds of optical connectors;
Avaiable for singlemode and multimode optical fiber;
Avaiable in PC and APC polishing;
Avaiable in several lengths.

Color
Singlemode Standard (G.652B)   Yellow
Singlemode LWP (G.652D)   Yellow
Singlemode (G657)   Yellow
Singlemode NZD (G.655)   Yellow
Multimode OM1 (62,5m)   Orange
Multimode OM2 (50m)   Orange
Multimode OM3 (50m)   Acqua
Multimode OM4 (50m)   Acqua

Connector Type   LC, SC, ST, FC
Polish Type   PC (SPC/UPC) - Singlemode and multimode fibers
APC - Singlemode fibers

Standard
ISO 8877 - Information Technology - Telecommunications and information exchange
between systems - Interface connector and contact assignments for ISDN basic
access interface located at reference points S and T
ANSI/TIA/EIA-568-C.1
ANSI/TIA/EIA-568-C.3 - Optical Fiber Cabling Components Standard
ABNT NBR 14433 - Connectors mounted on optical cords or optical fiber cables and
adapters - Specification
ABNT NBR 14106 - Singlefiber Optical Cord
ABNT NBR 14705 - Classification of internal cables for telecommunications about
of flame behavior
