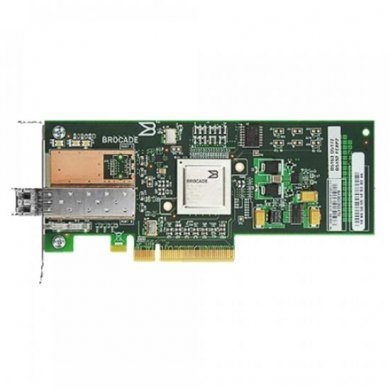

331-0237 Placa HBA Dell Brocade 815 Single Port

331-0237 Placa HBA Dell Brocade 815 Single Port 8GB Fibre Channel, PCI Express 2.0 x8 Low Profile

Condição de 331-0237:
Novo em embalagem comercial

Garantia  de  331-0237:
12 meses direto com a Net Computadores

Highlights
Maximizes bus throughput with a Fibre Channel to PCIe 2.0a Gen2 (x8) bus interface with intelligent lane negotiation
Enhances security with Fibre Channel-Security Protocol (FC-SP) for device authentication
Supports virtualized environments with N_Port ID Virtualization (NPIV) for 255 virtual ports
Uniquely enables end-to-end (server-to-storage) management in Brocade DCF environments
Offers I/O transfer rates with up to 500,000 IOPS per port at 8 Gbit/sec


Overview
The Brocade® 815 Single-Port 8 Gbps Host Bus Adapter from Dell™ provides a new level of server connectivity through unmatched hardware capabilities and unique software configurability. This HBA laid the foundation for extending fabric intelligence to servers, virtual machines, applications, and services -enabling end-to-end storage network management. Its Brocade Data Center Fabric (DCF) architecture provides a strategic framework to help simplify data center connectivity, optimize performance and scalability, and reduce cost and risk. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.

Manufacturer Part# : 6NM4P
Dell Part# : 331-0237

Compatibility
This product is compatible with the following systems:
PowerEdge 2970
PowerEdge R320
PowerEdge R410
PowerEdge R415
PowerEdge R420
PowerEdge R420XR
PowerEdge R510
PowerEdge R515
PowerEdge R520
PowerEdge R610
PowerEdge R620
PowerEdge R710
PowerEdge R715
PowerEdge R720
PowerEdge R720XD
PowerEdge R805
PowerEdge R810
PowerEdge R815
PowerEdge R820
PowerEdge R900
PowerEdge R905
PowerEdge R910
PowerEdge T410
PowerEdge T420
PowerEdge T610
PowerEdge T620
PowerEdge T710
PowerVault TL2000
PowerVault TL4000

Quick Specs
Device Type
Host bus adapter

Form Factor
Plug-in card - low profile

Interface (Bus) Type
PCI Express 2.0 x8

PCI Specification Revision
PCIe 2.0

Bus Voltage
3.3 V

Ports
8Gb Fibre Channel

Dimensions (WxDxH)
6.6 in x 2.7 in

Cabling Type
Fiber optic

Data Link Protocol
8Gb Fibre Channel

Max Transfer Distance
164 ft

Data Transfer Rate
8.5 Gbps

System Requirements
Microsoft Windows Server 2003, SunSoft Solaris 10, SuSE Linux Enterprise Server 9, Red Hat Enterprise Linux 4, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008, VMware ESX Server 3.5
General
Device Type
Host bus adapter

Form Factor
Plug-in card - low profile

Interface (Bus) Type
PCI Express 2.0 x8

PCI Specification Revision
PCIe 2.0

Bus Voltage
3.3 V
Networking
Ports
8Gb Fibre Channel

Connectivity Technology
Wired

Cabling Type
Fiber optic

Data Link Protocol
8Gb Fibre Channel

Fibre Channel
FC-SP, FCP-2, FCP-3, SCSI-FCP

Data Transfer Rate
8.5 Gbps

Max Transfer Distance
164 ft
Expansion / Connectivity
Expansion Slots
1 (total) / 0 (free) x SFP+

Interfaces
1 x 8Gb Fibre Channel - LC multi-mode x 2

Compatible Slots
1 x PCI Express 2.0 x8
Miscellaneous
Compliant Standards
CSA, TUV, C-Tick, BSMI, VCCI Class B ITE, GOST, BSMI CNS 13438 Class A, CISPR 22 Class B, EN55022, EN55024, EN55022 Class B, ICES-003 Class B, JEIDA, MIC Class B, UL 60950-1, IEC 60950-1, EN 60950-1
Software / System Requirements
OS Required
Microsoft Windows Server 2003, SunSoft Solaris 10, SuSE Linux Enterprise Server 9, Red Hat Enterprise Linux 4, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008, VMware ESX Server 3.5
Dimensions & Weight
Depth
6.6 in

Height
2.7 in
Environmental Parameters
Min Operating Temperature
32 °F

Max Operating Temperature
131 °F

Humidity Range Operating
5 - 93% (non-condensing)

Maiores detalhes de 331-0237 no site do fabricante:
