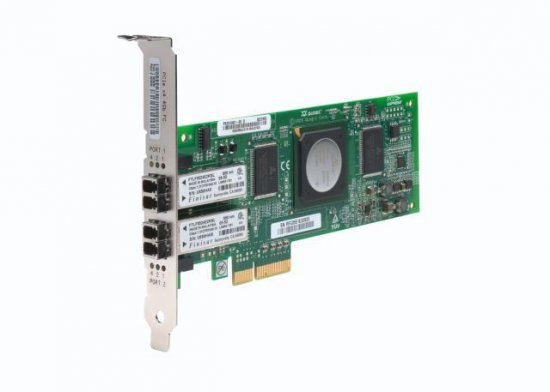

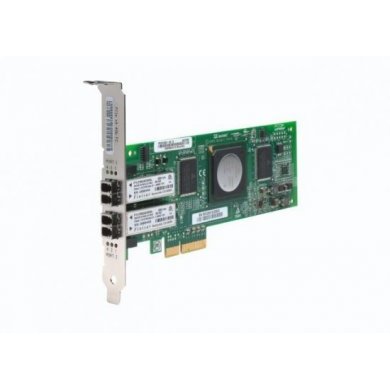

39R6527 IBM Lenovo HBA QLogic 4Gb Dual-Port Fibre Channel

PCI-E x4 para IBM System x, Form Factor: Plug-in Card - Low Profile, Connectivity Media: Multi-mod

39R6527 - IBM Lenovo
39R6527 IBM Lenovo HBA QLogic 4Gb Dual-Port Fibre Channel
*As imagens podem ser ilustrativas
IBM Lenovo HBA QLogic 4Gb Dual-Port Fibre ChannelIBM Lenovo HBA QLogic 4Gb Dual-Port Fibre Channel

R$ 4.856,00

à vista no Pix ou Boleto

ou R$ 5.110,96 em 1x no cartão (via site)

ou R$ 5.394,90 no cartão em até 10x sem juros (apenas na loja física)

R$ 4.856,00

à vista no Pix ou Boleto

R$ 5.110,96
em 1x no cartão (via site)

R$ 5.394,90 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses Assist. Técnica do Fabricante

NCM:
84733049

R$ 4.856,00

à vista no pix

Condição:
Novo em embalagem comercial

Garantia:
12 meses Assist. Técnica do Fabricante

NCM: 84733049

39R6527 IBM Lenovo HBA QLogic 4Gb Dual-Port Fibre Channel
PCI-E x4 para IBM System x, Form Factor: Plug-in Card - Low Profile, Connectivity Media: Multi-mod

Condição de 39R6527:    Novo em embalagem comercial

Garantia  de  39R6527:     12 meses Assist. Técnica do Fabricante



General
Device Type:  Network adapter - 2 ports
Form Factor:  Plug-in card - low profile
Interface (Bus) Type:  PCI Express x4
PCI Specification Revision:  PCIe 1.0a
Bus Voltage:  Universal (3.3 V & 5.0 V)
Width:  1 in
Depth:  6.6 in
Height:  2.6 in
Weight:  4 oz

Networking
Connectivity Technology:  Wired
Data Link Protocol:  4Gb Fibre Channel
Fibre Channel:  FC-AL-2, FC-FLA, FC-FS, FC-GS-2, FC-GS-3, FC-IP, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-Tape, FCP-2
Data Transfer Rate:  4.24 Gbps
Status Indicators:  Link activity
Features:  Auto-negotiation

Processor / Memory
RAM:  1 MB
Flash Memory:  1 MB
Expansion / Connectivity
Interfaces:  2 x network - 4Gb Fibre Channel - LC multi-mode x 2
Compatible Slots:  1 x PCI Express x4 - low-profile
Miscellaneous
Compliant Standards:  UL, TUV, VCCI Class B ITE, CISPR 22 Class B, BSMI CNS 13438 Class B, cUL, EN 61000-3-2, EN 61000-3-3, UL 60950, CSA 22.2 No. 60950, ICES-003 Class B, AS/NZ 3548 Class B, FCC Part 15 B, EN 60950-1, EN
Software / System Requirements
OS Required:  Microsoft Windows 2000 Server, Microsoft Windows 2000 Advanced Server, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Web Edition, Microsoft Windows Server 2003 Standa
Manufacturer Warranty
Service & Support:  1 year warranty
Service & Support Details:  Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature:  32 °F
Max Operating Temperature:  113 °F
Humidity Range Operating:  5 - 95%


• Compatible Products:
IBM eServer 326m 7969, IBM eServer 326m 7992, IBM eServer xSeries 226 8488, IBM eServer xSeries 226 8648, IBM eServer xSeries 236 8841, IBM eServer xSeries 306m 8491, IBM eServer xSeries 306m 8849, IBM eServer xSeries 336 8837, IBM eServer xSeries 346 8840, IBM System x3400 7973, IBM System x3400 7974, IBM System x3400 7975, IBM System x3400 7976, IBM System x3455 7984, IBM System x3455 7986, IBM System x3500 7977, IBM System x3550 7978, IBM System x3650 7979, IBM System x3655 7985

Tags de 39R6527: Q Logic, Qlogic, HBA, Fibre Channel, Fibra, IBM, System, 39R6527, Placa Fibra Óptica, Fibra Ótica, Controladora HBA, Controladora de Backup, Placa HBA, IBM Lenovo

39R6527 IBM Lenovo HBA QLogic 4Gb Dual-Port Fibre Channel PCI-E x4 para IBM System x, Form Factor: Plug-in Card - Low Profile, Connectivity Media: Multi-mod

Condição de 39R6527:
Novo em embalagem comercial

Garantia  de  39R6527:
12 meses Assist. Técnica do Fabricante


General
Device Type:  Network adapter - 2 ports
Form Factor:  Plug-in card - low profile
Interface (Bus) Type:  PCI Express x4
PCI Specification Revision:  PCIe 1.0a
Bus Voltage:  Universal (3.3 V & 5.0 V)
Width:  1 in
Depth:  6.6 in
Height:  2.6 in
Weight:  4 oz

Networking
Connectivity Technology:  Wired
Data Link Protocol:  4Gb Fibre Channel
Fibre Channel:  FC-AL-2, FC-FLA, FC-FS, FC-GS-2, FC-GS-3, FC-IP, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-Tape, FCP-2
Data Transfer Rate:  4.24 Gbps
Status Indicators:  Link activity
Features:  Auto-negotiation

Processor / Memory
RAM:  1 MB
Flash Memory:  1 MB
Expansion / Connectivity
Interfaces:  2 x network - 4Gb Fibre Channel - LC multi-mode x 2
Compatible Slots:  1 x PCI Express x4 - low-profile
Miscellaneous
Compliant Standards:  UL, TUV, VCCI Class B ITE, CISPR 22 Class B, BSMI CNS 13438 Class B, cUL, EN 61000-3-2, EN 61000-3-3, UL 60950, CSA 22.2 No. 60950, ICES-003 Class B, AS/NZ 3548 Class B, FCC Part 15 B, EN 60950-1, EN
Software / System Requirements
OS Required:  Microsoft Windows 2000 Server, Microsoft Windows 2000 Advanced Server, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Web Edition, Microsoft Windows Server 2003 Standa
Manufacturer Warranty
Service & Support:  1 year warranty
Service & Support Details:  Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature:  32 °F
Max Operating Temperature:  113 °F
Humidity Range Operating:  5 - 95%


• Compatible Products:
IBM eServer 326m 7969, IBM eServer 326m 7992, IBM eServer xSeries 226 8488, IBM eServer xSeries 226 8648, IBM eServer xSeries 236 8841, IBM eServer xSeries 306m 8491, IBM eServer xSeries 306m 8849, IBM eServer xSeries 336 8837, IBM eServer xSeries 346 8840, IBM System x3400 7973, IBM System x3400 7974, IBM System x3400 7975, IBM System x3400 7976, IBM System x3455 7984, IBM System x3455 7986, IBM System x3500 7977, IBM System x3550 7978, IBM System x3650 7979, IBM System x3655 7985

Tags de 39R6527: Q Logic, Qlogic, HBA, Fibre Channel, Fibra, IBM, System, 39R6527, Placa Fibra Óptica, Fibra Ótica, Controladora HBA, Controladora de Backup, Placa HBA, IBM Lenovo
