Placas Controladoras / HBAs / 405-AADP

Placas Controladoras / HBAs

405-AADP DELL CONTROLADORA SAS PERC H810 6GB/S

Name: 405-AADP DELL CONTROLADORA SAS PERC H810 6GB/S
Brand: DELL Brasil
SKU: 405-AADP
Price: 5026.00 BRL
Availability: InStock

JBOD 1GB - 2x SFF-8088 Externo, PCI-E 2.0 x8, RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 5.026,00

à vista no Pix ou Boleto

ou R$ 5.290,42 em 1x no cartão (via site)

ou R$ 5.584,33 no cartão em até 10x sem juros (apenas na loja física)

R$ 5.026,00

à vista no Pix ou Boleto

R$ 5.290,42
em 1x no cartão (via site)

R$ 5.584,33 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

84733049

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

Cotação PJ mais de uma unidade

Indicar 405-AADP

405-AADP DELL CONTROLADORA SAS PERC H810 6GB/S
JBOD 1GB - 2x SFF-8088 Externo, PCI-E 2.0 x8, RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD

Condição de 405-AADP: Novo em embalagem comercial

Garantia de 405-AADP: 12 meses direto com a Net Computadores

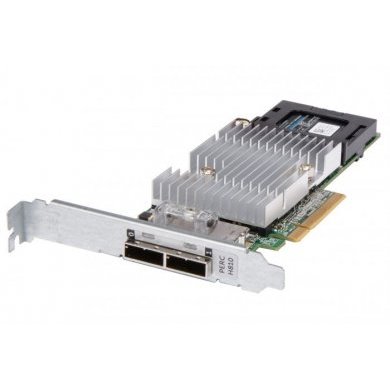

The PERC H810, Premium External RAID controller from DellTM, is based on LSI´s Thunderbolt (2208) ROC, which offers dual PPC 800 MHz cores, along with 6Gb/s SAS, 1333 DDR3 cache and PCIe 2.0 interface support. The PERC H810 operates on PERC 8.0 FW Stack and supports RAID Levels 0, 1, 10, 5, 50, 6, and 60.

The PERC H810 is available in either Low profile or Full Height Adapter form. The PERC H810 only supports External Storage and is targeted at Premium Enterprise customers. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.

Manufacturer Part# : YCFJ3

Dell Part# : 405-AADP

Compatibility

This product is compatible with the following systems:

PowerEdge R420

PowerEdge R420XR

PowerEdge R520

PowerEdge R720

PowerEdge R720XD

PowerEdge R820

PowerEdge R920

PowerEdge T620

PowerEdge VRTX

PowerVault MD1200

PowerVault NX3200

General

Device Type

Storage controller (RAID) - plug-in card

Host Bus

PCIe 2.0 x8

Storage Controller

Interface

SAS 2

Data Transfer Rate

600 MBps

Buffer Size

1 GB

Supported Devices

Hard drive, disk array (RAID)

Channel Qty

Max Storage Devices Qty

192

RAID Level

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60

Expansion / Connectivity

Interfaces

2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) (external)

Compatibility Information

Designed For

Dell PowerEdge R220, R320, R420, R520, R620, R720, R720xd, R820, R920, T320, T420, T620, VRTX M520, VRTX M620

Quick Specs

Device Type

Storage controller (RAID) - plug-in card

Bus Type

PCIe 2.0 x8

Interface

SAS 2

Data Transfer Rate

600 MBps

Buffer Size

1 GB

Supported Devices

Hard drive, disk array (RAID)

Channel Qty

Max Storage Devices Qty

192

RAID Level

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60

Designed For

PowerEdge R220, R320, R420, R520, R620, R720, R720xd, R820, R920, T320, T420, T620, VRTX M520, VRTX M620

Tags de 405-AADP: YCFJ3, 405-AADP, R420, R420XR, R520, R720, R720XD, R820, T620, VRTX, MD1200, NX3200, 342-3537, 3423537, W390D, CN-0W390D, DEL-342-3537-BN-OE, YCFJ3, H-810, 8PX3M, Controladora SAS Externa, R610, R620, PowerEdge R520, PowerEdge R720, PowerEdge R720XD, PowerEdge R820, PowerEdge T620, PERC 5e, Perc 6E, MD3000, SFF-8088, SFF8088, Controladora HBA, Controladora de Backup, Placa HBA, 405-AADP, 405AADP, DELL Brasil

405-AADP DELL CONTROLADORA SAS PERC H810 6GB/S JBOD 1GB - 2x SFF-8088 Externo, PCI-E 2.0 x8, RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD

Condição de 405-AADP:
Novo em embalagem comercial

Garantia de 405-AADP:
12 meses direto com a Net Computadores

Manufacturer Part# : YCFJ3

Dell Part# : 405-AADP

Compatibility

This product is compatible with the following systems:

PowerEdge R420

PowerEdge R420XR

PowerEdge R520

PowerEdge R720

PowerEdge R720XD

PowerEdge R820

PowerEdge R920

PowerEdge T620

PowerEdge VRTX

PowerVault MD1200

PowerVault NX3200

General

Device Type

Storage controller (RAID) - plug-in card

Host Bus

PCIe 2.0 x8

Storage Controller

Interface

SAS 2

Data Transfer Rate

600 MBps

Buffer Size

1 GB

Supported Devices

Hard drive, disk array (RAID)

Channel Qty

Max Storage Devices Qty

192

RAID Level

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60

Expansion / Connectivity

Interfaces

2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) (external)

Compatibility Information

Designed For

Dell PowerEdge R220, R320, R420, R520, R620, R720, R720xd, R820, R920, T320, T420, T620, VRTX M520, VRTX M620

Quick Specs

Device Type

Storage controller (RAID) - plug-in card

Bus Type

PCIe 2.0 x8

Interface

SAS 2

Data Transfer Rate

600 MBps

Buffer Size

1 GB

Supported Devices

Hard drive, disk array (RAID)

Channel Qty

Max Storage Devices Qty

192

RAID Level

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60

Designed For

PowerEdge R220, R320, R420, R520, R620, R720, R720xd, R820, R920, T320, T420, T620, VRTX M520, VRTX M620

Tags de 405-AADP: YCFJ3, 405-AADP, R420, R420XR, R520, R720, R720XD, R820, T620, VRTX, MD1200, NX3200, 342-3537, 3423537, W390D, CN-0W390D, DEL-342-3537-BN-OE, YCFJ3, H-810, 8PX3M, Controladora SAS Externa, R610, R620, PowerEdge R520, PowerEdge R720, PowerEdge R720XD, PowerEdge R820, PowerEdge T620, PERC 5e, Perc 6E, MD3000, SFF-8088, SFF8088, Controladora HBA, Controladora de Backup, Placa HBA, 405-AADP, 405AADP, DELL Brasil
