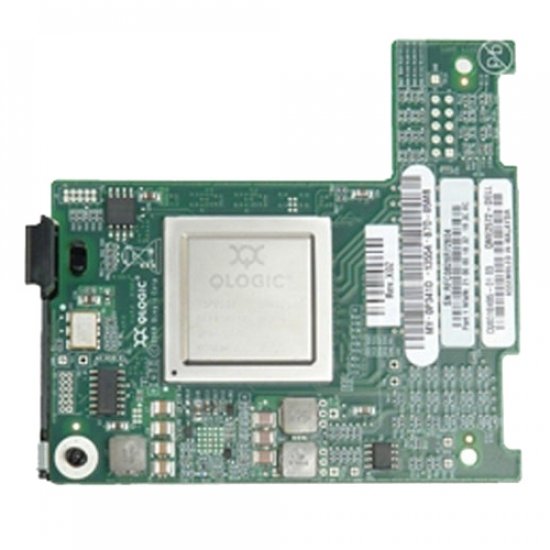

406-10714 HBA Dell QLogic QME2572 8Gbs FC8

406-10714 HBA Dell QLogic QME2572 8Gbs FC8 PCI Express x8 Plug-in card, Dual Port

Condição de 406-10714:
Novo em embalagem antiestática

Garantia  de  406-10714:
12 meses direto com a Net Computadores

Highlights
Enables SAN-level authentication by supporting Fibre Channel-Security Protocol
Backward compatible with 4 Gbps and 2 Gbps speeds
Supports N_Port ID Virtualization by allowing multiple logical connections


Overview
The QME2572 Fiber-Channel controller card from Dell facilitates optimization of internal links for improved high-speed performance for your Server. This module provides 8/4/2 Gbps FC connectivity for Dell blade servers. It also features StarPower technology that provides dynamic power management to provide necessary PCI Express bandwidth. Moreover, it offers improved data integrity by ensuring overlapping protection domains on both control and data paths.



Manufacturer Part# : T019D
Dell Part# : 406-10714

Compatibility
This product is compatible with the following systems:
PowerEdge M420
PowerEdge M520
PowerEdge M600
PowerEdge M605
PowerEdge M610
PowerEdge M620
PowerEdge M630
PowerEdge M710
PowerEdge M805
PowerEdge M905
PowerEdge M910

Device Type
Host bus adapter

Form Factor
Plug-in card

Interface (Bus) Type
PCI Express x8

PCI Specification Revision
PCIe 2.0

Ports
8Gb Fibre Channel x 2

Data Link Protocol
2Gb Fibre Channel, 4Gb Fibre Channel, 8Gb Fibre Channel

Data Transfer Rate
8.5 Gbps

System Requirements
Red Hat Linux, Red Hat Linux Advanced Server, Microsoft Windows Server 2003, SuSE Linux 10.0, Microsoft Windows Server 2008, VMware ESX Server 3.5, VMware ESXi 3.5
General
Device Type
Host bus adapter

Form Factor
Plug-in card

Interface (Bus) Type
PCI Express x8

PCI Specification Revision
PCIe 2.0
Networking
Ports
8Gb Fibre Channel x 2

Connectivity Technology
Wired

Data Link Protocol
2Gb Fibre Channel, 4Gb Fibre Channel, 8Gb Fibre Channel

Fibre Channel
FC-AL, FC-AL-2, FC-Tape, FCP-2, FCP-3

Data Transfer Rate
8.5 Gbps

Features
Full duplex capability, auto-negotiation, manageable, firmware upgradable, StarPower technology
Expansion / Connectivity
Interfaces
2 x 8Gb Fibre Channel

Compatible Slots
1 x PCI Express x8
Miscellaneous
Compliant Standards
UL, cUL, IEC 825-1/EN 60825-1 class 1, VCCI Class A ITE, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, AS/NZ 3548 Class A, MIC, ICES-003 Class A, EN 60950-1, RoHS, BSMI CNS 13438, FCC Part 15 A
Power
Power Consumption Operational
5.6 Watt
Software / System Requirements
Software Included
SANsurfer HBA Manager

OS Required
Red Hat Linux, Red Hat Linux Advanced Server, Microsoft Windows Server 2003, SuSE Linux 10.0, Microsoft Windows Server 2008, VMware ESX Server 3.5, VMware ESXi 3.5
Environmental Parameters
Min Operating Temperature
0 °C

Max Operating Temperature
55 °C

Humidity Range Operating
10 - 90%
