PCB Solda
R$ 10,00
à vista no Pix ou Boleto
ou R$ 9,80 em 1x no cartão (via site)
ou R$ 10,35 no cartão em até 10x sem juros (apenas na loja física)
R$ 10,00
à vista no Pix ou Boleto
R$ 9,80
em 1x no cartão (via site)
R$ 10,35 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 10,00
à vista no pix
Condição de 5556416-1: Novo em embalagem comercial
Garantia de 5556416-1: 3 meses direto com a Net Computadores
| Connector Type | Jack | |
|---|---|---|
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Mounting Type | Through Hole | |
| Orientation | Vertical | |
| Termination | Solder | |
| Shielding | Unshielded | |
| Ratings | Cat3 | |
| Features | Board Lock | |
| LED Color | Does Not Contain LED | |
| Ingress Protection | - | |
| Tab Direction | User Selectable | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | |
| Operating Temperature | -40°C ~ 85°C |
Tags de 5556416-1: 571-5556416-1, 5556416-1, A31428-ND, TE Connectivity, TE Connectivity

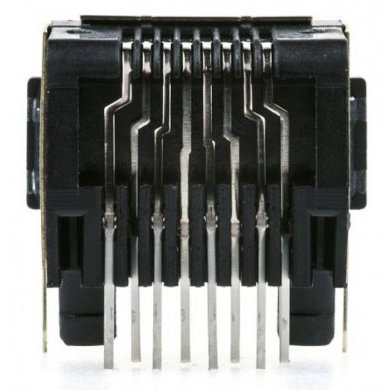

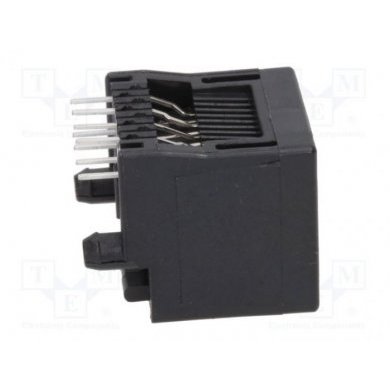

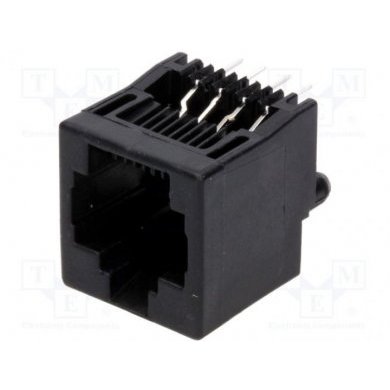

5556416-1 TE Conector Ethernet RJ45 modular 8P PCB Solda
Condição de 5556416-1:
Novo em embalagem comercial
Garantia de 5556416-1:
3 meses direto com a Net Computadores
| Connector Type | Jack | |
|---|---|---|
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Mounting Type | Through Hole | |
| Orientation | Vertical | |
| Termination | Solder | |
| Shielding | Unshielded | |
| Ratings | Cat3 | |
| Features | Board Lock | |
| LED Color | Does Not Contain LED | |
| Ingress Protection | - | |
| Tab Direction | User Selectable | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | |
| Operating Temperature | -40°C ~ 85°C |
Tags de 5556416-1: 571-5556416-1, 5556416-1, A31428-ND, TE Connectivity, TE Connectivity
