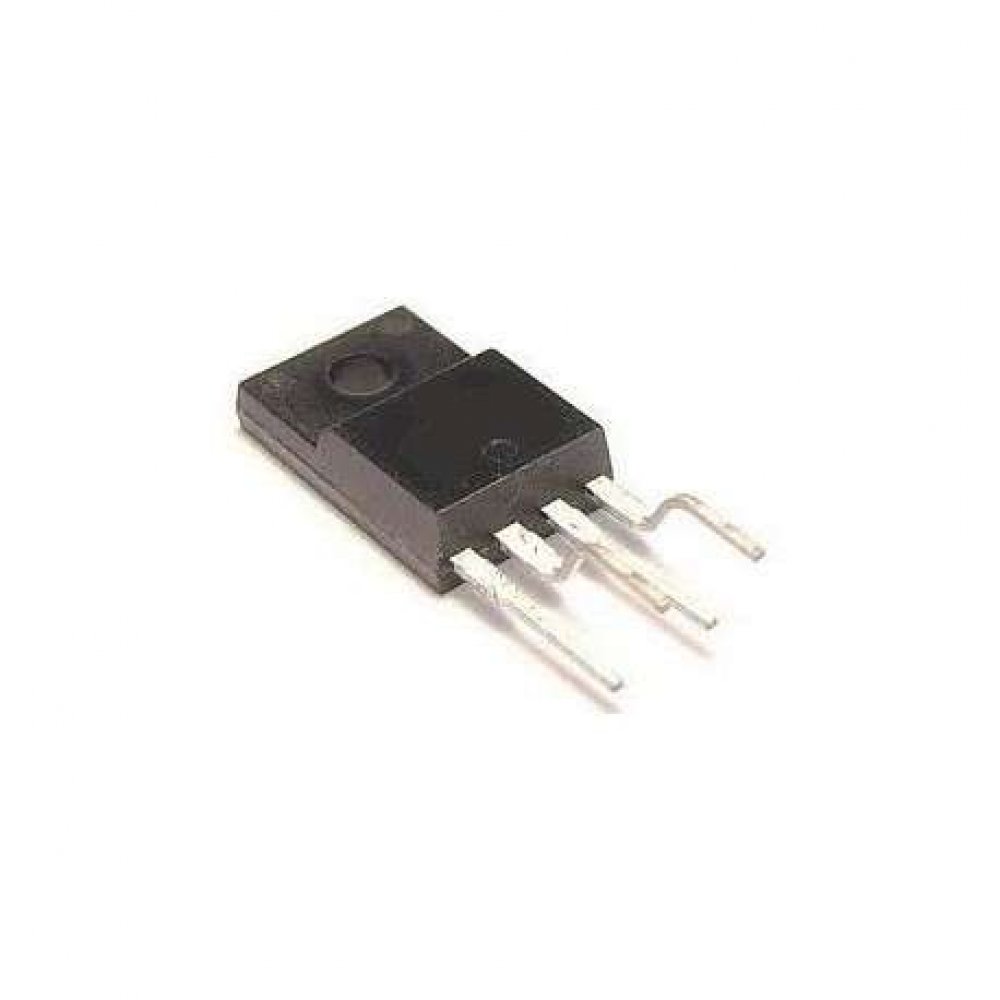

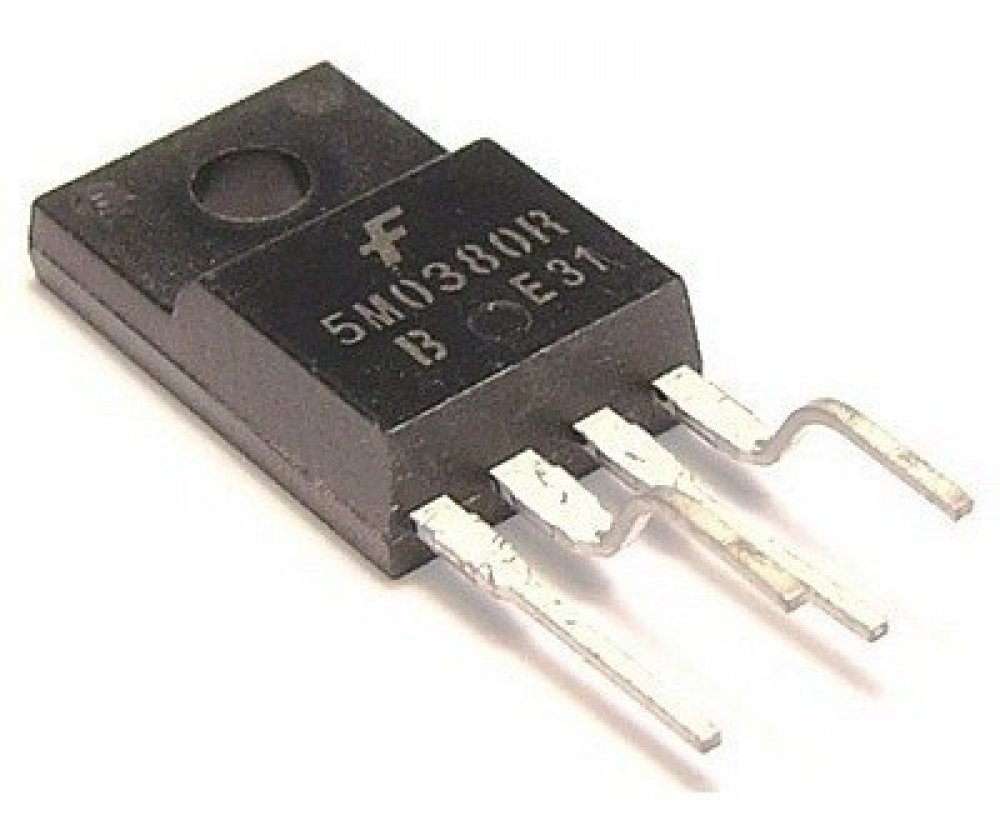

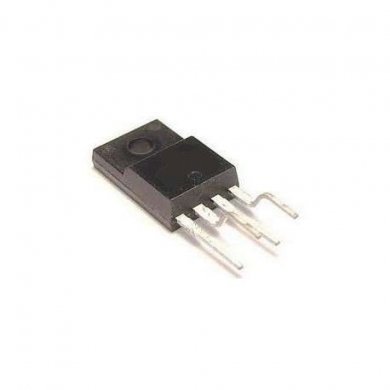

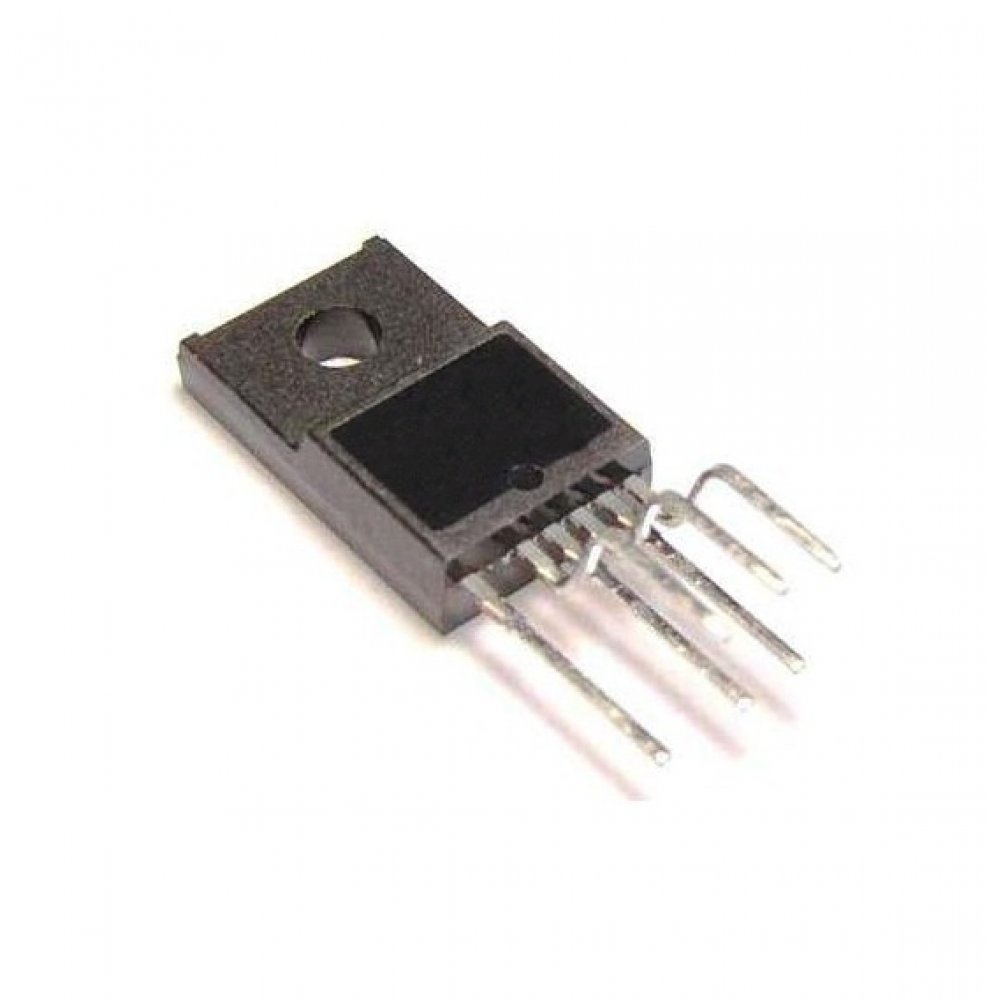

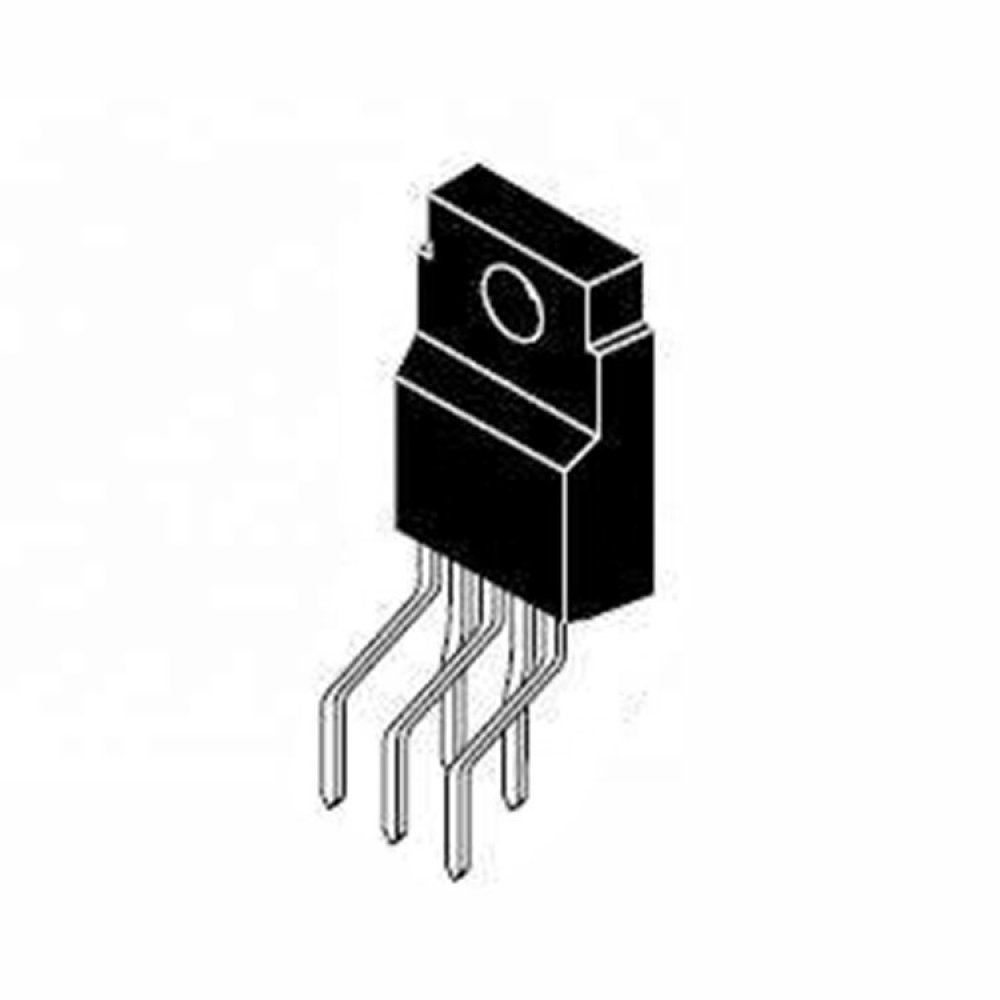

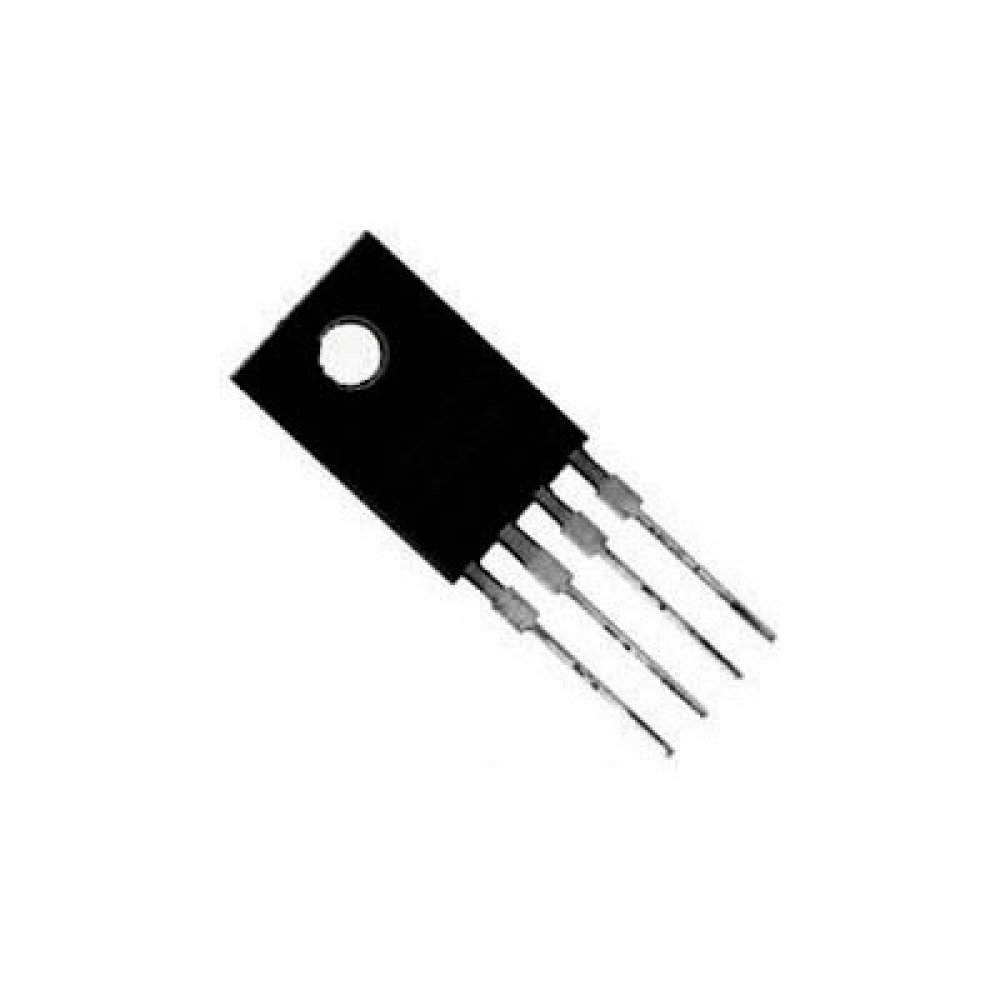

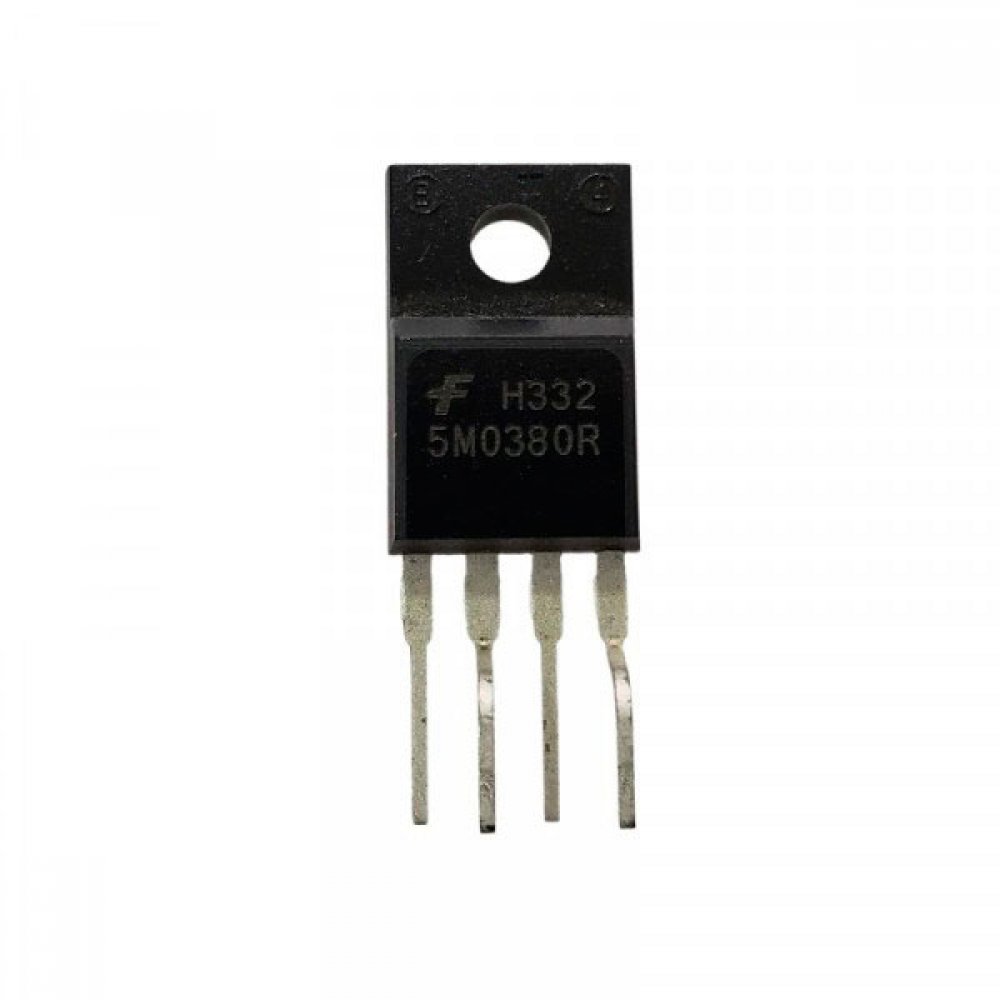

5M0380R Ci Power Switch FPS

Name: 5M0380R Ci Power Switch FPS
Brand: Fairchild Semiconductor
SKU: 5M0380R
Price: 17.00 BRL
Availability: InStock

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 17,00

à vista no Pix ou Boleto

ou R$ 17,02 em 1x no cartão (via site)

ou R$ 17,97 no cartão em até 10x sem juros (apenas na loja física)

R$ 17,00

à vista no Pix ou Boleto

R$ 17,02
em 1x no cartão (via site)

R$ 17,97 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Cotação PJ mais de uma unidade

Indicar 5M0380R

5M0380R Ci Power Switch FPS

Condição de 5M0380R: Novo em embalagem comercial

Garantia de 5M0380R: 3 meses direto com a Net Computadores

Outros PNs para este item: 5h0380

Description
The Fairchild Power Switch(FPS) product family is specially
designed for an off-line SMPS with minimal external
components. The Fairchild Power Switch(FPS) consists of a
high voltage power SenseFET and a current mode PWM IC.
Included PWM controller integrates the fixed frequency
oscillator, the under voltage lock-out, the leading edge
blanking, the optimized gate turn-on/turn-off driver, the
thermal shutdown protection, the over voltage protection,
and the temperature compensated precision current sources
for the loop compensation and the fault protection circuitry.
Compared to a discrete MOSFET and a PWM controller or
an RCCsolution, a Fairchild Power Switch(FPS) can reduce
the total component count, design size and weight and at the
same time increase efficiency, productivity, and system
reliability. It has a basic platform well suited for the cost
effective design in either a flyback converter or a forward
converter.

Features
? Precision Fixed Operating Frequency (100/67/50kHz)
? Low Start-up Current(Typ. 100uA)
? Pulse by Pulse Current Limiting
? Over Current Protection
? Over Voltage Protection (Min. 25V)
? Internal Thermal Shutdown Function
? Under Voltage Lockout
? Internal High Voltage Sense FET
? Auto-Restart Mode

Applications
? SMPS for VCR, SVR, STB, DVD e DVCD
? SMPS for Printer, Facsimile

Tags de 5M0380R: 5h0380, 5M0380R, 5H0380R, 5M0365R, KA5H0365R, KA5M0365R, KA5L0365R, KA5M0365RN, KA5L0365RN, KA5H0380R, KA5M0380R, KA5L0380R, Fairchild Semiconductor

5M0380R Ci Power Switch FPS

Condição de 5M0380R:
Novo em embalagem comercial

Garantia de 5M0380R:
3 meses direto com a Net Computadores

Outros PNs para este componente: 5h0380

Description
The Fairchild Power Switch(FPS) product family is specially
designed for an off-line SMPS with minimal external
components. The Fairchild Power Switch(FPS) consists of a
high voltage power SenseFET and a current mode PWM IC.
Included PWM controller integrates the fixed frequency
oscillator, the under voltage lock-out, the leading edge
blanking, the optimized gate turn-on/turn-off driver, the
thermal shutdown protection, the over voltage protection,
and the temperature compensated precision current sources
for the loop compensation and the fault protection circuitry.
Compared to a discrete MOSFET and a PWM controller or
an RCCsolution, a Fairchild Power Switch(FPS) can reduce
the total component count, design size and weight and at the
same time increase efficiency, productivity, and system
reliability. It has a basic platform well suited for the cost
effective design in either a flyback converter or a forward
converter.

Features
- Precision Fixed Operating Frequency (100/67/50kHz)
- Low Start-up Current(Typ. 100uA)
- Pulse by Pulse Current Limiting
- Over Current Protection
- Over Voltage Protection (Min. 25V)
- Internal Thermal Shutdown Function
- Under Voltage Lockout
- Internal High Voltage Sense FET
- Auto-Restart Mode

Applications
- SMPS for VCR, SVR, STB, DVD e DVCD
- SMPS for Printer, Facsimile

Tags de 5M0380R: 5h0380, 5M0380R, 5H0380R, 5M0365R, KA5H0365R, KA5M0365R, KA5L0365R, KA5M0365RN, KA5L0365RN, KA5H0380R, KA5M0380R, KA5L0380R, Fairchild Semiconductor
