caixa com 50 unidades
R$ 219,00
à vista no Pix ou Boleto
ou R$ 230,15 em 1x no cartão (via site)
ou R$ 242,93 no cartão em até 10x sem juros (apenas na loja física)
R$ 219,00
à vista no Pix ou Boleto
R$ 230,15
em 1x no cartão (via site)
R$ 242,93 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 219,00
à vista no pix
Condição de 6-554720-3: Novo em embalagem comercial
Garantia de 6-554720-3: 3 meses direto com a Net Computadores
| Regional Availability | Asia Australia/New Zealand EMEA Latin America North America |
| Portfolio | CommScope |
| Product Type | Modular plug |
| ANSI/TIA Category | 5 |
| Cable Type | Flat oval, unshielded |
| Conductor Type | Solid Stranded |
| Interface | RJ45 |
| Positions/Loaded Contacts | 8/8 |
| Termination Type | IDC |
| Compatible Cable Diameter, maximum | 8.89 mm 0.35 in |
| Compatible Cable Diameter, minimum | 2.54 mm 0.1 in |
| Compatible Insulated Conductor Diameter, maximum | 0.99 mm 0.039 in |
| Compatible Insulated Conductor Diameter, minimum | 0.86 mm 0.034 in |
| Contact Plating Thickness | 1.27 m |
| Compatible Conductor Gauge, solid | 26-24 AWG |
| Compatible Conductor Gauge, stranded | 26-24 AWG |
| Current Rating, maximum | 0.75 A |
| Insulation Resistance, minimum | 500 mOhm |
| Safety Voltage Rating | 150 Vac |
| Contact Base Material | Phosphor Bronze |
| Contact Plating Material | Gold |
| Material Type | Glass filled polycarbonate |
| Plug Insertion Life, minimum | 750 times |
| Operating Temperature | -10 C to 60 C ( 14 F to 140 F) |
| Relative Humidity | Up to 93%, non-condensing |
| Flammability Rating | UL 94 V-2 |
| Safety Standard | UL 1863 |
| Packaging quantity | 100 |
| Packaging Type | Bag Box Carton |
| Agency | Classification |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Tags de 6-554720-3: 1502585-3, RJ-45, AMP RJ-45, Tyco RJ45, Conector RJ45 AMP, Conector AMP RJ45, AMP RJ45, Tyco RJ45, rj-45, conector rj-45, RJ45AMP, 6-554720-3, 6 554720 3, AMP - COMMSCOPE, AMP COMMSCOPE, COMMSCOPE, 6-554720-3, 6 55472 0 3, 554720 3, 554720-3, 554720, 6-554720, 5-554720-3, 55547203, 5 554720 3, 5-554720-3-UNID, 5-554720-3, 55547203, MP-88U-F-1, conector AMP rj45, rj45 amp tyco, RJ45 cat.5, cat5e, RJ45 categoria 5, conector CommScope RJ45, conector de rede primeira linha, AMP

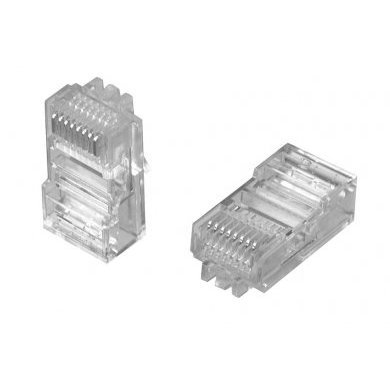

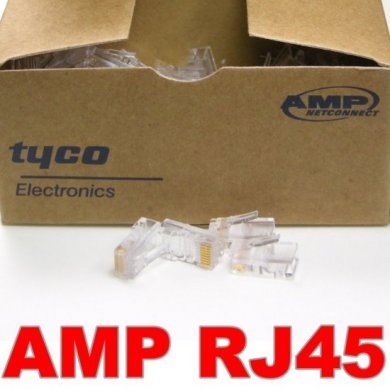

6-554720-3 AMP conector Tyco Eletronics RJ45 CAT5E 8V 50und caixa com 50 unidades
Condição de 6-554720-3:
Novo em embalagem comercial
Garantia de 6-554720-3:
3 meses direto com a Net Computadores
| Regional Availability | Asia Australia/New Zealand EMEA Latin America North America |
| Portfolio | CommScope |
| Product Type | Modular plug |
| ANSI/TIA Category | 5 |
| Cable Type | Flat oval, unshielded |
| Conductor Type | Solid Stranded |
| Interface | RJ45 |
| Positions/Loaded Contacts | 8/8 |
| Termination Type | IDC |
| Compatible Cable Diameter, maximum | 8.89 mm 0.35 in |
| Compatible Cable Diameter, minimum | 2.54 mm 0.1 in |
| Compatible Insulated Conductor Diameter, maximum | 0.99 mm 0.039 in |
| Compatible Insulated Conductor Diameter, minimum | 0.86 mm 0.034 in |
| Contact Plating Thickness | 1.27 m |
| Compatible Conductor Gauge, solid | 26-24 AWG |
| Compatible Conductor Gauge, stranded | 26-24 AWG |
| Current Rating, maximum | 0.75 A |
| Insulation Resistance, minimum | 500 mOhm |
| Safety Voltage Rating | 150 Vac |
| Contact Base Material | Phosphor Bronze |
| Contact Plating Material | Gold |
| Material Type | Glass filled polycarbonate |
| Plug Insertion Life, minimum | 750 times |
| Operating Temperature | -10 C to 60 C ( 14 F to 140 F) |
| Relative Humidity | Up to 93%, non-condensing |
| Flammability Rating | UL 94 V-2 |
| Safety Standard | UL 1863 |
| Packaging quantity | 100 |
| Packaging Type | Bag Box Carton |
| Agency | Classification |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Tags de 6-554720-3: 1502585-3, RJ-45, AMP RJ-45, Tyco RJ45, Conector RJ45 AMP, Conector AMP RJ45, AMP RJ45, Tyco RJ45, rj-45, conector rj-45, RJ45AMP, 6-554720-3, 6 554720 3, AMP - COMMSCOPE, AMP COMMSCOPE, COMMSCOPE, 6-554720-3, 6 55472 0 3, 554720 3, 554720-3, 554720, 6-554720, 5-554720-3, 55547203, 5 554720 3, 5-554720-3-UNID, 5-554720-3, 55547203, MP-88U-F-1, conector AMP rj45, rj45 amp tyco, RJ45 cat.5, cat5e, RJ45 categoria 5, conector CommScope RJ45, conector de rede primeira linha, AMP
