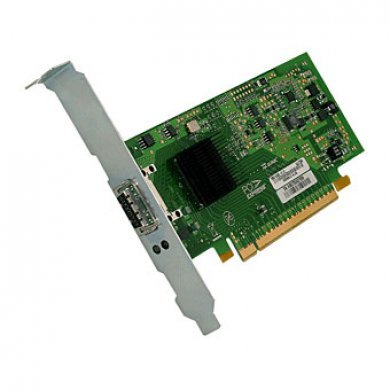

7104-HCA-LPX1P-DDR HBA QLOGIC 7104-HCA-LPX1P-DDR SILVERSTORM 7104, PCI Express x8 Lo

Name: 7104-HCA-LPX1P-DDR HBA QLOGIC 7104-HCA-LPX1P-DDR SILVERSTORM 7104, PCI Express x8 Lo
Brand: Qlogic
SKU: 7104-HCA-LPX1P-DDR
Price: 3932.00 BRL
Availability: InStock

Single or dual 4X (10 Gbps) IB ports, Max Power Consumption: 14 Watts, OS Required: Linux, Windows

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 3.932,00

à vista no Pix ou Boleto

ou R$ 4.137,98 em 1x no cartão (via site)

ou R$ 4.367,87 no cartão em até 10x sem juros (apenas na loja física)

R$ 3.932,00

à vista no Pix ou Boleto

R$ 4.137,98
em 1x no cartão (via site)

R$ 4.367,87 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

R$ 3.932,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 0

Cotação PJ mais de uma unidade

Indicar 7104-HCA-LPX1P-DDR

7104-HCA-LPX1P-DDR HBA QLOGIC 7104-HCA-LPX1P-DDR SILVERSTORM 7104, PCI Express x8 Lo
Single or dual 4X (10 Gbps) IB ports, Max Power Consumption: 14 Watts, OS Required: Linux, Windows

Condição de 7104-HCA-LPX1P-DDR: Novo em embalagem comercial

Garantia de 7104-HCA-LPX1P-DDR: 12 meses direto com a Net Computadores

An integral member of the QLogic family of interconnect offerings, the 7104-HCA-xxx series Double Data Rate (DDR) HCA is a single or dual port 4X IB HCA utilizing a x8 PCIe interface to enable high server bandwidth. It offers an aggregate to 40 Gbps of full-duplex bandwidth.

The QLogic HCA creates an expressway of balanced bandwidth between the server and the IB fabric, allowing information transfer at 20 Gbps, up to 20 times the bandwidth of current server interfaces. A comprehensive host environment of high-performance ULPs contained within the QLogic software family enables the HCA to provide unprecedented performance to core business applications that are supported by DataBase Management Systems (DBMS), clustering, HPBC, and high availability clustering.

Main Features:

Single 4X IB ports
PCIe x8 support
Fully PCIe compliant
Low profile design
Comprehensive suite of high performance Upper Level Protocols (ULPs)
Supports up to 130K queue pairs and 130K completion queuess

Main Specifications
Dimensions (WxDxH) :	Low profile form factor 6.60 in x 2.536 in (167.64 mm x 64.41 mm)
InfiniBand :	1 constant and 31 configurable Global IDs (GUIDs)
	8 virtual fabrics plus management lane
	Auto configurable MTU 256 to 2048 bytes (2048 default)
	Configurable up to 130K queue pairs and 130K completion queues1
	Configurable up to 256k memory regions/520K Windows regions1
	InfiniBand v1.1 and v1.2 compliant
	Maximum message size 2 GB
	Memory, work queue, and completion queue accesses protection
	Support acknowledge (ACK) coalescing
	Support for 64 configurable P_Keys per port
	Up to 8 RDMA read requests as target per queue pair
Management :	BMA, PMA, SMA, CM
	Fabric and device discovery
	Generates SMA traps
	InfiniBand Fabric Suite
PCI Express Compliant :	Low profile design
	PCI Express Base Specification 1.2 compatible
	PCI Express compliant
	x8 PCIe support
Transport :	Reliable Connection (RC)
	Unreliable Datagram (UD)
	RDMA read request
	RDMA write request and atomic operations
	Send/Receive
Expansion / Connectivity
Interface(s) :	Single 4X (10 Gb) speeds - copper HSSD
Host Driver/Upper Level Protocol (ULP) Support
ìDAPL :	ULP RDMA server-to-server access utilizing User Direct Access Program Library (ìDAPL) APIs
IPoIB :	ULP to allow Internet Protocol (IP) using InfiniBand (IB) as a link layer
MPI :	ULP for HPC clusters utilizing Message Passing Interface (MPI) function calls
RDS :	Sockets off-load driver provides reliable, in order, no duplicate delivery semantics for Oracle® Real Application Clusters (RAC)
SDP :	Sockets Direct Protocol (SDP) support for highperformance sockets-based data transfers
VirtualHBA :	Fibre Channel ULP and advanced functionality (port sharing, LUN management, SCSI Remote DMA Protocol (SRP)
VirtualNIC :	Ethernet ULP and advanced functionality (port sharing, load balancing, Ethernet IB switching)
WSD :	Windows Sockets Direct Protocol (SDP) support for high-performance zero-copy data transfers
Environmental Parameters
Humidity (Non-Condensing) :	Operating: 20% to 80%
	Storage: 5% to 90%
Max Power Consumption :	14 Watts
Operating Temperature :	10°C to 45°C at sea level
	03 km (10,000 feet)
	-30°C to 60°C (non-operating)
Rosh Compliant :	RoHS 5
Typical Power Consumption :	10 Watts
Software / System Requirements
OS Required :	Linux
	Windows 200x

Maiores detalhes de 7104-HCA-LPX1P-DDR no site do fabricante:
http://www.qlogic.com/SiteCollectionDocuments/Education_and_Resource/Datasheets/

Tags de 7104-HCA-LPX1P-DDR: 7104-HCA-LPX1P-DDR, HBA, PCI Express, Qlogic, Controladora HBA, Controladora de Backup, Placa HBA, Qlogic

7104-HCA-LPX1P-DDR HBA QLOGIC 7104-HCA-LPX1P-DDR SILVERSTORM 7104, PCI Express x8 Lo Single or dual 4X (10 Gbps) IB ports, Max Power Consumption: 14 Watts, OS Required: Linux, Windows

Condição de 7104-HCA-LPX1P-DDR:
Novo em embalagem comercial

Garantia de 7104-HCA-LPX1P-DDR:
12 meses direto com a Net Computadores

Main Features:

Single 4X IB ports
PCIe x8 support
Fully PCIe compliant
Low profile design
Comprehensive suite of high performance Upper Level Protocols (ULPs)
Supports up to 130K queue pairs and 130K completion queuess

Main Specifications
Dimensions (WxDxH) :	Low profile form factor 6.60 in x 2.536 in (167.64 mm x 64.41 mm)
InfiniBand :	1 constant and 31 configurable Global IDs (GUIDs)
	8 virtual fabrics plus management lane
	Auto configurable MTU 256 to 2048 bytes (2048 default)
	Configurable up to 130K queue pairs and 130K completion queues1
	Configurable up to 256k memory regions/520K Windows regions1
	InfiniBand v1.1 and v1.2 compliant
	Maximum message size 2 GB
	Memory, work queue, and completion queue accesses protection
	Support acknowledge (ACK) coalescing
	Support for 64 configurable P_Keys per port
	Up to 8 RDMA read requests as target per queue pair
Management :	BMA, PMA, SMA, CM
	Fabric and device discovery
	Generates SMA traps
	InfiniBand Fabric Suite
PCI Express Compliant :	Low profile design
	PCI Express Base Specification 1.2 compatible
	PCI Express compliant
	x8 PCIe support
Transport :	Reliable Connection (RC)
	Unreliable Datagram (UD)
	RDMA read request
	RDMA write request and atomic operations
	Send/Receive
Expansion / Connectivity
Interface(s) :	Single 4X (10 Gb) speeds - copper HSSD
Host Driver/Upper Level Protocol (ULP) Support
ìDAPL :	ULP RDMA server-to-server access utilizing User Direct Access Program Library (ìDAPL) APIs
IPoIB :	ULP to allow Internet Protocol (IP) using InfiniBand (IB) as a link layer
MPI :	ULP for HPC clusters utilizing Message Passing Interface (MPI) calls
RDS :	Sockets off-load driver provides reliable, in order, no duplicate delivery semantics for Oracle® Real Application Clusters (RAC)
SDP :	Sockets Direct Protocol (SDP) support for highperformance sockets-based data transfers
VirtualHBA :	Fibre Channel ULP and advanced ality (port sharing, LUN management, SCSI Remote DMA Protocol (SRP)
VirtualNIC :	Ethernet ULP and advanced ality (port sharing, load balancing, Ethernet IB switching)
WSD :	Windows Sockets Direct Protocol (SDP) support for high-performance zero-copy data transfers
Environmental Parameters
Humidity (Non-Condensing) :	Operating: 20% to 80%
	Storage: 5% to 90%
Max Power Consumption :	14 Watts
Operating Temperature :	10°C to 45°C at sea level
	03 km (10,000 feet)
	-30°C to 60°C (non-operating)
Rosh Compliant :	RoHS 5
Typical Power Consumption :	10 Watts
Software / System Requirements
OS Required :	Linux
	Windows 200x
