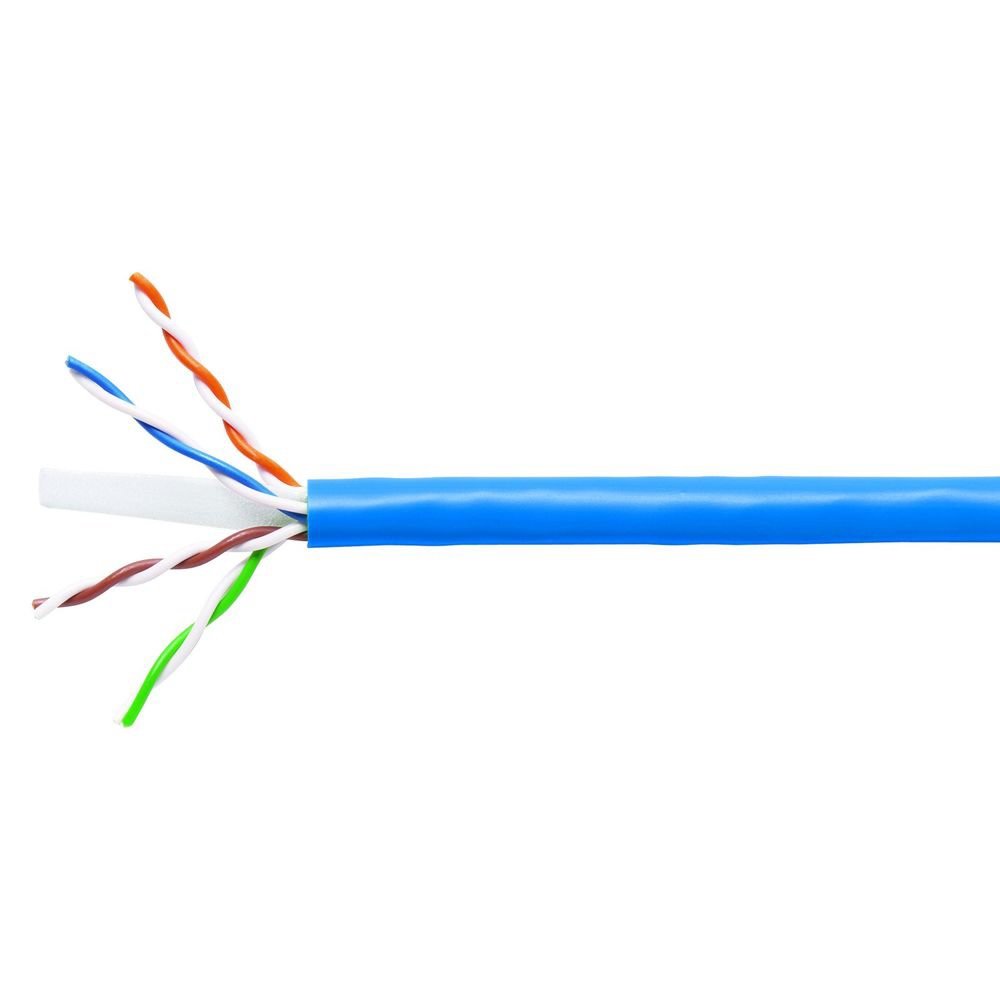

760051458 COMMSCOPE CABO UTP CAT6 XL 4P X 23 AWG AZUL 305 MTS

CMR - COMMSCOPE SYSTIMAX SOLUTIONS

760051458 COMMSCOPE CABO UTP CAT6 XL 4P X 23 AWG AZUL 305 MTS

*As imagens podem ser ilustrativas

COMMSCOPE CABO UTP CAT6 XL 4P X 23 AWG AZUL 305 MTS

avise-me quando disponível

R$ 3.185,00

à vista no Pix ou Boleto

ou R$ 3.351,76 em 1x no cartão (via site)

ou R$ 3.537,97 no cartão em até 10x sem juros (apenas na loja física)

R$ 3.185,00

à vista no Pix ou Boleto

R$ 3.351,76
em 1x no cartão (via site)

R$ 3.537,97 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses Assist. Técnica do Fabricante

NCM:

85444900

Condição:
Novo em embalagem comercial

Garantia:
12 meses Assist. Técnica do Fabricante

NCM: 85444900

Cotação PJ mais de uma unidade

Indicar 760051458

760051458 COMMSCOPE CABO UTP CAT6 XL 4P X 23 AWG AZUL 305 MTS
CMR - COMMSCOPE SYSTIMAX SOLUTIONS

Condição de 760051458: Novo em embalagem comercial

Garantia de 760051458: 12 meses Assist. Técnica do Fabricante

CABO UTP CAT6 XL 4P X 23 AWG MODELO 1071 CINZA CMR DESCRIÇÃO Construction Materials
Jacket Material PVC
Conductor Material Bare copper
Insulation Material Polyolefin
Separator Material Polyolefin
Dimensions
Cable Length 305 m 1000 ft
Cable Weight 25.60 lb/kft
Diameter Over Jacket 5.893 mm 0.232 in
Jacket Thickness 0.559 mm 0.022 in
Electrical Specifications
ANSI/TIA Category 6
Product Specifications
dc Resistance Unbalance, maximum 5 %
dc Resistance, maximum 7.61 ohms/100 m
Mutual Capacitance 5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP) 69 %
Operating Frequency, maximum 300 MHz
Operating Voltage, maximum 80 V
Transmission Standards ANSI/TIA568C.2 CENELEC EN 5028861 ISO/IEC 11801 Class E
Dielectric Strength, minimum 1500 Vac 2500 Vdc
Environmental Specifications
Environmental Space Nonplenum
Flame Test Method CMG CMR
Installation Temperature 0 C to 60 C ( 32 F to 140 F)
Operating Temperature 20 C to 60 C (4 F to 140 F)
UL Temperature Rating 75 C 167 F
General Specifications
Cable Type U/UTP (unshielded)
Pairs, quantity 4
Cable Component Type Horizontal
Packaging Type WE TOTE box
Brand GigaSPEED XL SYSTIMAX
Jacket Color Slate
Product Number 1071E
Conductor Gauge, singles 23 AWG
Conductor Type, singles Solid
Conductors, quantity 8
Ordering Note Not available in Europe, the Middle East, or Africa
Separator Type Bisector
Mechanical Specifications
Pulling Tension, maximum 11 kg 25 lb.

Maiores detalhes de 760051458 no site do fabricante:
https://www.commscope.com/product-type/cables/twisted-pair-cables/category-6-cab

Vídeo de 760051458 COMMSCOPE CABO UTP CAT6 XL 4P X 23 AWG AZUL 305 MTS

Tags de 760051458: 760051458, 30050, CABO UTP CAT6 XL 4P X 23 AWG MODELO 1071 CINZA CMR, CAT 6, COMMSCOPE, SYSTIMAX, Cable UTP GIGA 1071 XL 4PX23 AWG CZ, COMMSCOPE SYSTIMAX SOLUTIONS, cabo cat 6 cmr, cmr, 760050963, COMMSCOPE

760051458 COMMSCOPE CABO UTP CAT6 XL 4P X 23 AWG AZUL 305 MTS CMR - COMMSCOPE SYSTIMAX SOLUTIONS

Condição de 760051458:
Novo em embalagem comercial

Garantia de 760051458:
12 meses Assist. Técnica do Fabricante

CABO UTP CAT6 XL 4P X 23 AWG MODELO 1071 CINZA CMR

DESCRIÇÃO

Construction Materials
Jacket Material PVC
Conductor Material Bare copper
Insulation Material Polyolefin
Separator Material Polyolefin
Dimensions
Cable Length 305 m 1000 ft
Cable Weight 25.60 lb/kft
Diameter Over Jacket 5.893 mm 0.232 in
Jacket Thickness 0.559 mm 0.022 in
Electrical Specifications
ANSI/TIA Category 6
Product Specifications
dc Resistance Unbalance, maximum 5 %
dc Resistance, maximum 7.61 ohms/100 m
Mutual Capacitance 5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP) 69 %
Operating Frequency, maximum 300 MHz
Operating Voltage, maximum 80 V
Transmission Standards ANSI/TIA568C.2 CENELEC EN 5028861 ISO/IEC 11801 Class E
Dielectric Strength, minimum 1500 Vac 2500 Vdc
Environmental Specifications
Environmental Space Nonplenum
Flame Test Method CMG CMR
Installation Temperature 0 C to 60 C ( 32 F to 140 F)
Operating Temperature 20 C to 60 C (4 F to 140 F)
UL Temperature Rating 75 C 167 F
General Specifications
Cable Type U/UTP (unshielded)
Pairs, quantity 4
Cable Component Type Horizontal
Packaging Type WE TOTE box
Brand GigaSPEED XL SYSTIMAX
Jacket Color Slate
Product Number 1071E
Conductor Gauge, singles 23 AWG
Conductor Type, singles Solid
Conductors, quantity 8
Ordering Note Not available in Europe, the Middle East, or Africa
Separator Type Bisector
Mechanical Specifications
Pulling Tension, maximum 11 kg 25 lb.

Maiores detalhes de 760051458 no site do fabricante:
https://www.commscope.com/product-type/cables/twisted-pair-cables/category-6-cab

Vídeo de 760051458 COMMSCOPE CABO UTP CAT6 XL 4P X 23 AWG AZUL 305 MTS

Tags de 760051458: 760051458, 30050, CABO UTP CAT6 XL 4P X 23 AWG MODELO 1071 CINZA CMR, CAT 6, COMMSCOPE, SYSTIMAX, Cable UTP GIGA 1071 XL 4PX23 AWG CZ, COMMSCOPE SYSTIMAX SOLUTIONS, cabo cat 6 cmr, cmr, 760050963, COMMSCOPE
