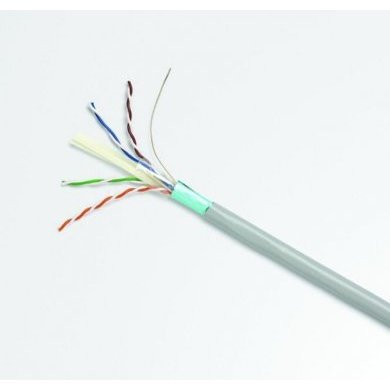

760168377 COMMSCOPE CABO FTP 10G 4P X 23 AWG 6A CZ LSZH CX 305M

Name: 760168377 COMMSCOPE CABO FTP 10G 4P X 23 AWG 6A CZ LSZH CX 305M
Brand: COMMSCOPE
SKU: 760168377
Price: 8701.00 BRL
Availability: InStock

Low Smoke Zero Halogen (LSZH)

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 8.701,00

à vista no Pix ou Boleto

ou R$ 9.158,66 em 1x no cartão (via site)

ou R$ 9.667,48 no cartão em até 10x sem juros (apenas na loja física)

R$ 8.701,00

à vista no Pix ou Boleto

R$ 9.158,66
em 1x no cartão (via site)

R$ 9.667,48 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses Assist. Técnica do Fabricante

NCM:

85444900

Condição:
Novo em embalagem comercial

Garantia:
12 meses Assist. Técnica do Fabricante

NCM: 85444900

Cotação PJ mais de uma unidade

Indicar 760168377

760168377 COMMSCOPE CABO FTP 10G 4P X 23 AWG 6A CZ LSZH CX 305M
Low Smoke Zero Halogen (LSZH)

Condição de 760168377: Novo em embalagem comercial

Garantia de 760168377: 12 meses Assist. Técnica do Fabricante

DESCRIÇÃO Construction Materials
Jacket Material Low Smoke Zero Halogen (LSZH)
Conductor Material Bare copper
Drain Wire Material Tinned copper
Insulation Material Polyolefin
Separator Material Polyolefin
Shield (Tape) Material Polyester/Aluminum shield
Dimensions
Cable Length 305 m | 1000 ft
Cable Weight 35.15 lb/kft
Diameter Over Jacket 7.518 mm | 0.296 in
Jacket Thickness 0.508 mm | 0.020 in
Electrical Specifications
ANSI/TIA Category 6A
dc Resistance Unbalance, maximum 4 %
dc Resistance, maximum 8.00 ohms/100 m
Mutual Capacitance 5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP) 68 %
Operating Frequency, maximum 500 MHz
Operating Voltage, maximum 80 V
Transmission Standards ANSI/TIA-568-C.2
Environmental Specifications
Environmental Space Low Smoke Zero Halogen (LSZH)
Smoke Test Method IEC 61034-2
Acid Gas Test Method IEC 60754-2
CPR Cable Classifications EuroClass Dca | s2 | d2 | a1
Flame Test Method IEC 60332-3-22
Installation Temperature 0 °C to 60 °C ( 32 °F to 140 °F)
Operating Temperature -20 °C to 60 °C (-4 °F to 140 °F)
General Specifications
Cable Type F/UTP (shielded)
Pairs, quantity 4
Cable Component Type Horizontal
Packaging Type Reel
Brand GigaSPEED X10D® | SYSTIMAX®
Jacket Color Slate
Product Number 3291B
Conductor Gauge, singles 23 AWG
Conductor Type, singles Solid
Conductors, quantity 8
Drain Wire Gauge 24 AWG
Drain Wire Type Solid
Separator Type Isolator
Mechanical Specifications
Pulling Tension, maximum 11 kg | 25 lb

Maiores detalhes de 760168377 no site do fabricante:
https://www.commscope.com/product-type/networking-systems/structured-cabling/ite

Vídeo de 760168377 COMMSCOPE CABO FTP 10G 4P X 23 AWG 6A CZ LSZH CX 305M

Tags de 760168377: COMMSCOPE CABO FTP 10G 4P X 24 AWG 6A CZ LSZH, LSZH, Unshielded Twisted Pair, UTP Unshielded Twisted Pair, Cabo Ethernet UTP (Unshielded Twisted Pair) Cat-6a (1gB/S), CLASSE e, 24awg, 2 pares trançados, isolação TPE (High Flex), cor cinza (gray), classe de tensão 300V, classificação M³I³C³E³ (uso industrial), IEC 24702, 24AWG, Giga Speed x 10D - 3291B Cat.6A F/UTP LSZH - Commscope / Systimax,Commscope, Systimax, cat 6A, amp, amp CAT 6A, CAT 6A CINZA, CAT 6A CZ, CABO DE REDE 10 GIGA, CABO DE REDE 10 GB, 30534, COMMSCOPE
