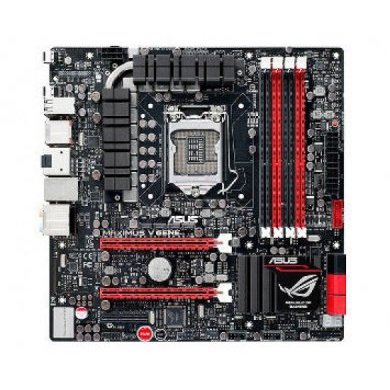

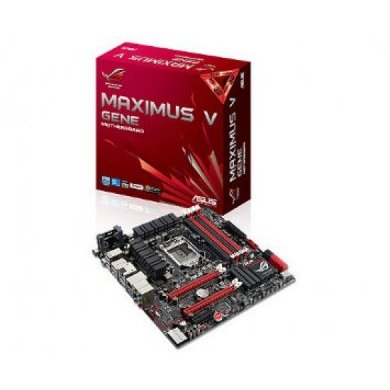

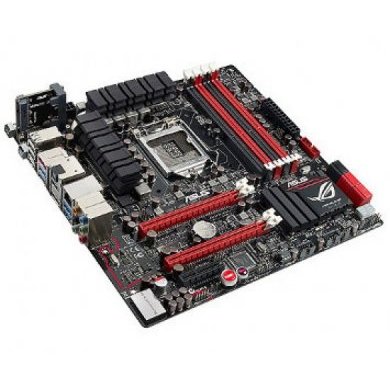

90-MIBI20-G0EAY1VZ Placa Mãe ASUS LGA1155 MAXIMUS V GENE T DDR3 para Core i3 i5 i7, DDR3 1333 e 1066MHz até 32GB, 2x PCI-E x16 e 1x PCI-E x1, Som, Vídeo e Red
Condição de 90-MIBI20-G0EAY1VZ:
Novo em embalagem comercial
Garantia de 90-MIBI20-G0EAY1VZ:
12 meses direto com a Net Computadores
Caracteristicas:
Processador - Intel Core i3/i5/i7
Soquete - LGA1155
Memória - Máx: 32GB DDR3 1600/1333MHz com 4 Sockets, Dual Channel
Chipset - Intel Z77
Controladora de Disco - SATA300 com 2 Canais, SATA600 Com 2 Canais, 1 mini-SATA 300 RAID (0,1,5,10)Video - Integrated Graphics
Áudio - SupremeFX III built-in 8-Channel High Definition Audio
Rede - 10/100/1000Mbps
Form Factor - ATX
Slots - 2 PCIe 3.0/2.0 x16, 1 PCIe 2.0 x4, 1 mini-PCIe 2.0 x1
Portas - 4 USB 3.0 2(opt), 4 USB 2.0 4(opt), 1 Display Port, 1 HDMI, 1 RJ-45
Conector - Fonte de Alimentação: 24pin 8pin (12V)
Medidas do produto (L/A/P)0 / 0 / 0 mm
Medidas embalagem (L/A/P)285 / 85 / 280 mm
Especificações:
CPU
Intel Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel 32 nm CPU
Supports Intel Turbo Boost Technology 2.0
Chipset
Intel Z77
Memory
4 x DIMM, Max. 32GB, DDR3 2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort ports
Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Multi-GPU Support
Supports NVIDIA SLI Technology
Supports AMD CrossFireX Technology
Supports LucidLogix Virtu MVP Technology
Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red)
1 x PCIe 2.0 x4 (black)
1 x mini-PCIe 2.0 x1
Storage
Intel Z77 chipset :
2 x SATA 6Gb/s port(s), red
2 x SATA 3Gb/s port(s), black
1 x eSATA 3Gb/s port(s), red
1 x mini-SATA 3Gb/s port(s), black
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology
ASMedia PCIe SATA controller
2 x SATA 6Gb/s port(s), red
LAN
Intel, 1 x Gigabit LAN Controller(s)
Audio
SupremeFX III built-in 8-Channel High Definition Audio CODEC
Output Signal-to-Noise Ratio (A-Weighted): 110 dB
Output THD N at 1kHz: 95 dB
Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature:
SupremeFX Shielding Technology
1500 uF Audio Power Capacitor
Gold-plated jacks
X-Fi Xtreme Fidelity
EAX Advanced HD 5.0
THX TruStudio PRO
Creative ALchemy
Blu-ray audio layer Content Protection
Optical S/PDIF out port(s) at back panel
USB Ports
Intel Z77 chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel Z77 chipset :
8 x USB 2.0 port(s) (4 at back panel, black white, 4 at mid-board)
ASMedia USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
Overclocking Features
mPCIe Combo (mPCIe/mSATA combo card)
ROG Connect :
RC Diagram
RC Remote
RC Poster
GPU TweakIt
Extreme Engine Digi II :
8 -phase CPU power design 4 -phase iGPU power design
2 -phase QPI/DRAM power design
ProbeIt
UEFI BIOS features :
ROG BIOS Print
GPU.DIMM Post
GameFirst
iROG
Extreme Tweaker
Loadline Calibration
USB BIOS Flashback
Overclocking Protection :
ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS Hybrid Processor - TurboV EVO :
CPU Level Up
ASUS EPU :
EPU
ASUS Exclusive Features :
AI Suite II
Ai Charger
USB 3.0 Boost
Disk Unlocker
ASUS EZ DIY :
ASUS O.C. Profile
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS Q-Design :
ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
ASUS Q-Slot
ASUS Q-DIMM
ASUS Q-Connector

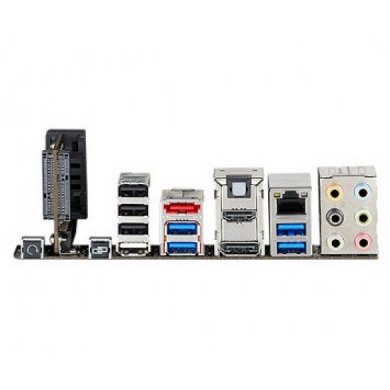

Back I/O Ports
1 x DisplayPort
1 x HDMI
1 x eSATA 3Gb/s
1 x LAN (RJ45) port(s)
4 x USB 3.0
4 x USB 2.0 (one port can be switched to ROG Connect)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
2 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
8 x ProbeIt Measurement Points
1 x Power-on button(s)
1 x Reset button(s)
1 x Go Button(s)
1 x mPCIe Combo header(s)
Accessories
Users manual
I/O Shield
2 x SATA 3Gb/s cable(s)
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x ROG Connect cable(s)
1 x 12 in 1 ROG Cable Label(s)
1 x ROG Door Hanger(s)
BIOS
64Mb UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
Manageability
WfM2.0, DMI2.0, WOL by PME, PXE
Support Disc
Drivers
Sound Blaster X-Fi 2 Utility
Kaspersky Anti-Virus
DAEMON Tools Pro Standard
ROG CPU-Z
ASUS AI Suite II
ASUS WebStorage
ASUS Utilities
Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
