Host Interface : PCI-X 266MHz, Ports/Channels : 1 LC Fibre Channel Multi Mode, 4 Gbps Fibre Channel
R$ 3.969,00
à vista no Pix ou Boleto
ou R$ 4.177,19 em 1x no cartão (via site)
ou R$ 4.409,26 no cartão em até 10x sem juros (apenas na loja física)
R$ 3.969,00
à vista no Pix ou Boleto
R$ 4.177,19
em 1x no cartão (via site)
R$ 4.409,26 no cartão
em até 10x sem juros
(apenas na loja física)
Condição de AB429A: Novo em embalagem comercial
Garantia de AB429A: 12 meses direto com a Net Computadores
| Product number | AB429A |
|---|---|
| Description | PCI-X single-channel, 4Gb fibre channel adapter |
| Bus specifications | Standard PCI-X 64-bit, 266/133/66 MHz Compliant with PCI-X specification v2 Compatible with 3.3V slots |
| Dimensions | L=6.6 in (168 mm) W=2.51 in (63.8 mm) H=0.385 in (9.8 mm) |
| Transfer rate | 4Gb, 2Gb or 1Gb auto--negotiates |
| Backward Compatibility | PCI 33MHz PCI 66MHz PCI-X 66MHz PCI-X 100MHz PCI-X 133MHz |
| Host Interface | PCI-X 266MHz 64-bit |
| Ports/Channels | 1 x LC |
| Topology : | Topology : |
| Fibre Channel Fibre Channel | Class 2 Class 3 |
| Max transfer rate | 800 MB/s full duplex per channel 400 MB/s half duplex per channel |
| Supported configurations with Microsoft Windows Server 2003 Enterprise and Datacenter Editions (maximum adapters) | Superdome [sx2000] (24/partition), rx8640 (12), rx7640 (8), rx6600 (6), rx3600 (6) |
| Supported servers with RHEL4U4, SLES10 | Superdome (sx1000) (8) Rx8620 (8) Rx7620 (8) |
| Boot support | Yes (Windows)1 Yes (Linux)1 |
| Operating systems | Microsoft Windows Server 2003 Enterprise and Datacenter Editions Red Hat Enterprise Linux Version 4 Update 4 (RHEL4U4) SUSE Linux Enterprise Server 10 (SLES 10) |
| Connector type | LC (SFF) |
| Fibre channel protocols | FCP (SCSI-FCP), FC-Tape (FCP-2) |
| Fibre channel topology | arbitrated loop (NL_Port), and switched fabric (N_Port) |
| Fibre channel protocol compliance | SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FC-AL-2), Fibre Channel-Private Loop DirectAttach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-3), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS) |
| DC power characteristics | 6.5 W (nominal); 7.5 W (max) |
Maiores detalhes de AB429A no site do fabricante:
http://www.hp.com/products1/serverconnectivity/storagesnf2/4gbfibre/specificatio
Tags de AB429A: AB429A, HBA, PCI-X, Hewlett Packard, Controladora HBA, Placa HBA, Hewlett Packard

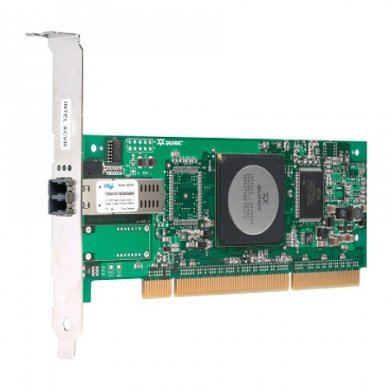

AB429A HBA HP StorageWorks FC1143, PCI-X, 4GB, 1 Porta LC Fibre Channel Host Interface : PCI-X 266MHz, Ports/Channels : 1 LC Fibre Channel Multi Mode, 4 Gbps Fibre Channel
Condição de AB429A:
Novo em embalagem comercial
Garantia de AB429A:
12 meses direto com a Net Computadores
| Product number | AB429A |
|---|---|
| Description | PCI-X single-channel, 4Gb fibre channel adapter |
| Bus specifications | Standard PCI-X 64-bit, 266/133/66 MHz Compliant with PCI-X specification v2 Compatible with 3.3V slots |
| Dimensions | L=6.6 in (168 mm) W=2.51 in (63.8 mm) H=0.385 in (9.8 mm) |
| Transfer rate | 4Gb, 2Gb or 1Gb auto--negotiates |
| Backward Compatibility | PCI 33MHz PCI 66MHz PCI-X 66MHz PCI-X 100MHz PCI-X 133MHz |
| Host Interface | PCI-X 266MHz 64-bit |
| Ports/Channels | 1 x LC |
| Topology : | Topology : |
| Fibre Channel Fibre Channel | Class 2 Class 3 |
| Max transfer rate | 800 MB/s full duplex per channel 400 MB/s half duplex per channel |
| Supported configurations with Microsoft Windows Server 2003 Enterprise and Datacenter Editions (maximum adapters) | Superdome [sx2000] (24/partition), rx8640 (12), rx7640 (8), rx6600 (6), rx3600 (6) |
| Supported servers with RHEL4U4, SLES10 | Superdome (sx1000) (8) Rx8620 (8) Rx7620 (8) |
| Boot support | Yes (Windows)1 Yes (Linux)1 |
| Operating systems | Microsoft Windows Server 2003 Enterprise and Datacenter Editions Red Hat Enterprise Linux Version 4 Update 4 (RHEL4U4) SUSE Linux Enterprise Server 10 (SLES 10) |
| Connector type | LC (SFF) |
| Fibre channel protocols | FCP (SCSI-FCP), FC-Tape (FCP-2) |
| Fibre channel topology | arbitrated loop (NL_Port), and switched fabric (N_Port) |
| Fibre channel protocol compliance | SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FC-AL-2), Fibre Channel-Private Loop DirectAttach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-3), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS) |
| DC power characteristics | 6.5 W (nominal); 7.5 W (max) |
Maiores detalhes de AB429A no site do fabricante:
http://www.hp.com/products1/serverconnectivity/storagesnf2/4gbfibre/specificatio
Tags de AB429A: AB429A, HBA, PCI-X, Hewlett Packard, Controladora HBA, Placa HBA, Hewlett Packard
