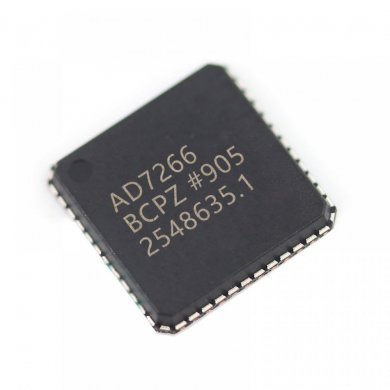

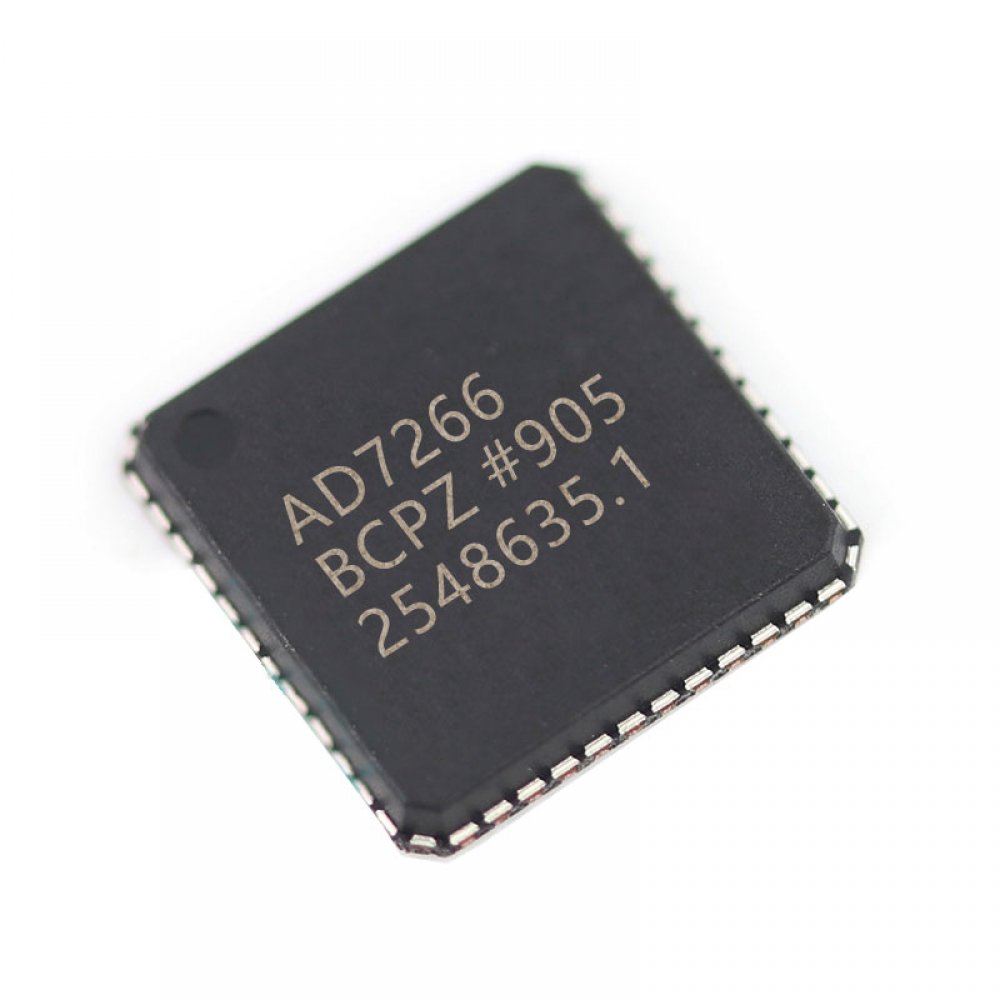

2MSPS 12-Bit 3 Channel - LFCSP-32
R$ 116,00
à vista no Pix ou Boleto
ou R$ 121,24 em 1x no cartão (via site)
ou R$ 127,97 no cartão em até 10x sem juros (apenas na loja física)
R$ 116,00
à vista no Pix ou Boleto
R$ 121,24
em 1x no cartão (via site)
R$ 127,97 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 116,00
à vista no pix
Condição:
Novo em embalagem antiestática
Garantia:
3 meses direto com a Net Computadores
NCM: 85423190
Condição de AD7266: Novo em embalagem antiestática
Garantia de AD7266: 3 meses direto com a Net Computadores
Outros PNs para este item: AD7266BCPZ
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Analog to Digital Converters - ADC |
| RoHS: | |
| Series: | AD7266 |
| Mounting Style: | SMD/SMT |
| Package / Case: | LFCSP-32 |
| Resolution: | 12 bit |
| Number of Channels: | 6 Channel |
| Interface Type: | Microwire, QSPI, SPI |
| Sampling Rate: | 2 MS/s |
| Input Type: | Differential/Pseudo-Differential/Single-Ended |
| Architecture: | SAR |
| SNR - Signal to Noise Ratio: | 71dB |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | 125 C |
| Packaging: | Tray |
| Brand: | Analog Devices |
| Development Kit: | EVAL-AD7266EDZ |
| DNL - Differential Nonlinearity: | - 0.99 LSB/1.5 LSB |
| Gain Error: | /- 2.5 LSB |
| Height: | 0.83 mm |
| INL - Integral Nonlinearity: | /- 1.5 LSB |
| Input Voltage: | 2.5 V/5 V |
| Length: | 5 mm |
| Moisture Sensitive: | Yes |
| Number of ADC Inputs: | 12 Input/6 Input |
| Number of Converters: | 2 Converter |
| Operating Supply Voltage: | 2.7 V to 5.25 V |
| Pd - Power Dissipation: | 33.6 mW |
| Product Type: | ADCs - Analog to Digital Converters |
| Reference Type: | External, Internal |
| Sample and Hold: | Yes |
Maiores detalhes de AD7266 no site do fabricante:
https://www.analog.com/media/en/technical-documentation/data-sheets/ad7266.pdf
Tags de AD7266: AD7266BCPZ, AD7266, conversor analogico digital, AD7266BSUZ-REEL7, AD7266BSUZ, AD7266BCPZ-REEL7, ADC 12bits, ADC 12 bits, ADC 12-bits, Analog Devices
AD7266 Conversor analogico digital ADC Dual 12Bit 3CH 2MSPS 12-Bit 3 Channel - LFCSP-32
Condição de AD7266:
Novo em embalagem antiestática
Garantia de AD7266:
3 meses direto com a Net Computadores
Outros PNs para este componente: AD7266BCPZ
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Analog to Digital Converters - ADC |
| RoHS: | |
| Series: | AD7266 |
| Mounting Style: | SMD/SMT |
| Package / Case: | LFCSP-32 |
| Resolution: | 12 bit |
| Number of Channels: | 6 Channel |
| Interface Type: | Microwire, QSPI, SPI |
| Sampling Rate: | 2 MS/s |
| Input Type: | Differential/Pseudo-Differential/Single-Ended |
| Architecture: | SAR |
| SNR - Signal to Noise Ratio: | 71dB |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | 125 C |
| Packaging: | Tray |
| Brand: | Analog Devices |
| Development Kit: | EVAL-AD7266EDZ |
| DNL - Differential Nonlinearity: | - 0.99 LSB/1.5 LSB |
| Gain Error: | /- 2.5 LSB |
| Height: | 0.83 mm |
| INL - Integral Nonlinearity: | /- 1.5 LSB |
| Input Voltage: | 2.5 V/5 V |
| Length: | 5 mm |
| Moisture Sensitive: | Yes |
| Number of ADC Inputs: | 12 Input/6 Input |
| Number of Converters: | 2 Converter |
| Operating Supply Voltage: | 2.7 V to 5.25 V |
| Pd - Power Dissipation: | 33.6 mW |
| Product Type: | ADCs - Analog to Digital Converters |
| Reference Type: | External, Internal |
| Sample and Hold: | Yes |
Maiores detalhes de AD7266 no site do fabricante:
https://www.analog.com/media/en/technical-documentation/data-sheets/ad7266.pdf
Tags de AD7266: AD7266BCPZ, AD7266, conversor analogico digital, AD7266BSUZ-REEL7, AD7266BSUZ, AD7266BCPZ-REEL7, ADC 12bits, ADC 12 bits, ADC 12-bits, Analog Devices
