Fibra Óptica / MÓDULOS GBIC SFP / MULTIMODO ÓPTICO E RJ45 / AFCT-5715APZ

Fibra Óptica / MÓDULOS GBIC SFP

AFCT-5715APZ Broadcom Avago Transceiver SFP 1.25 GBd

1310nm LC Duplex

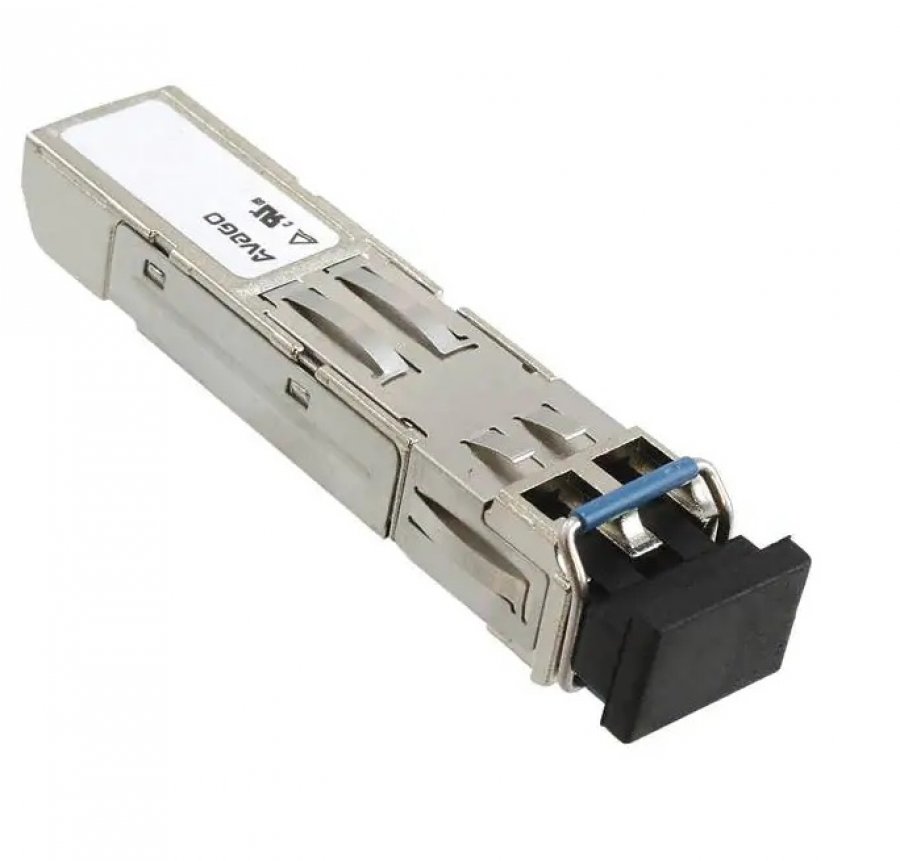

AFCT-5715APZ Broadcom Avago Transceiver SFP 1.25 GBd

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 1.387,00

à vista no Pix ou Boleto

ou R$ 1.459,46 em 1x no cartão (via site)

ou R$ 1.540,54 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.387,00

à vista no Pix ou Boleto

R$ 1.459,46
em 1x no cartão (via site)

R$ 1.540,54 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

85176259

R$ 1.387,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 85176259

Cotação PJ mais de uma unidade

Indicar AFCT-5715APZ

AFCT-5715APZ Broadcom Avago Transceiver SFP 1.25 GBd
1310nm LC Duplex

Condição de AFCT-5715APZ: Novo em embalagem comercial

Garantia de AFCT-5715APZ: 12 meses direto com a Net Computadores

The Avago AFCT-5710ALZ / AFBR-571xZ family of SFP optical transceivers offers a wide range of gigabit ethernet design options, including optional DMI features, two temperature ranges, and choice of standard or bail delatch.
The AFBR-5715Z family targets those applications requiring DMI features. The AFBR-5710Z family is a streamlined product designed for those applications where DMI features are not needed.

[PDF] AV02-2366EN_DS_AFCT-571xZ_2012-09-12

Features

ROHS-6 Compliant
Optional Digital Diagnostic Monitoring available
- AFCT-5710Z family: without DMI
- AFCT-5715Z family: with DMI
Per SFF-8472, diagnostic features on AFCT-5705Z family enable Diagnostic Monitoring Interface for optical transceivers with real-time monitoring of:
- Transmitted optical power
- Received optical power
- Laser bias current
- Temperature
- Supply voltage
Compliant to IEEE 802.3Z Gigabit Ethernet (1.25 GBd) 1000BASE-LX e Small Form Factor Pluggable (SFP) Multi-Source Agreement (MSA)
Manufactured in an ISO 9001 compliant facility
Hot-pluggable
Temperature options:
- (Extended) -10°C to 85°C
- (Industrial) -40°C to 85°C
3.3 V dc power supply
1310 nm longwave laser
Eye safety certified:
- US 21 CFR(J)
- IEC 60825-1 ( All)
LC-Duplex fiber connector compatible
Link Lengths at 1.25 GBd:
- 0.5 to 550 m
- 50 ?m MMF
- 0.5 to 550 m
- 62.5 ?m MMF
- 0.5 m to 10 km
- SMF

Tags de AFCT-5715APZ: AFCT-5715APZ, Transceiver AFCT-5715APZ, GBIC AFCT-5715APZ, Mini Gbic AFCT-5715APZ, Transceiver AFCT5715APZ, Avago AFCT-5715APZ, Broadcom AFCT-5715APZ, Broadcom AFCT5715APZ, Broadcom

AFCT-5715APZ Broadcom Avago Transceiver SFP 1.25 GBd 1310nm LC Duplex

Condição de AFCT-5715APZ:
Novo em embalagem comercial

Garantia de AFCT-5715APZ:
12 meses direto com a Net Computadores

[PDF] AV02-2366EN_DS_AFCT-571xZ_2012-09-12

Features

ROHS-6 Compliant
Optional Digital Diagnostic Monitoring available
- AFCT-5710Z family: without DMI
- AFCT-5715Z family: with DMI
Per SFF-8472, diagnostic features on AFCT-5705Z family enable Diagnostic Monitoring Interface for optical transceivers with real-time monitoring of:
- Transmitted optical power
- Received optical power
- Laser bias current
- Temperature
- Supply voltage
Compliant to IEEE 802.3Z Gigabit Ethernet (1.25 GBd) 1000BASE-LX e Small Form Factor Pluggable (SFP) Multi-Source Agreement (MSA)
Manufactured in an ISO 9001 compliant facility
Hot-pluggable
Temperature options:
- (Extended) -10°C to 85°C
- (Industrial) -40°C to 85°C
3.3 V dc power supply
1310 nm longwave laser
Eye safety certified:
- US 21 CFR(J)
- IEC 60825-1 ( All)
LC-Duplex fiber connector compatible
Link Lengths at 1.25 GBd:
- 0.5 to 550 m
- 50 -m MMF
- 0.5 to 550 m
- 62.5 -m MMF
- 0.5 m to 10 km
- SMF
