| General Information |
| Product Type : | Wireless Access Point | | Manufacturer Part Number : | AIR-AP1121G-A-K9 | | Manufacturer Website Address : | www.cisco.com/web/CA/ | |

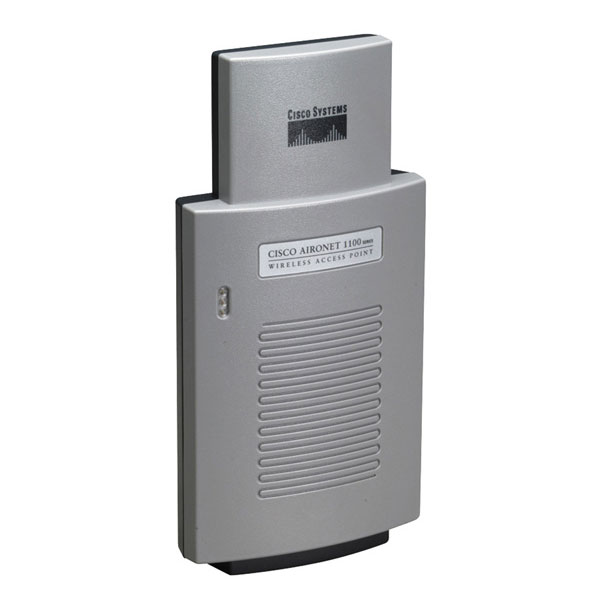

| | Manufacturer : | Cisco Systems, Inc | | Product Name : | Aironet 1100 1121G Wireless Access Point | | Product Line : | Aironet | | Product Series : | 1100 |
|
| Wireless Specifications |
| Antenna : | 2.2dBi Diversity Dipole Antenna Integrated | | Frequency Band/Bandwidth : | 2.412 GHz to 2.462 GHz IEEE 802.11b/g FCC | | Receiver Sensitivity : | -95 dBm - 1Mbps IEEE 802.11b -91 dBm - 2Mbps IEEE 802.11b -89 dBm - 5.5Mbps IEEE 802.11b -90 dBm - 6Mbps IEEE 802.11g -84 dBm - 9Mbps IEEE 802.11g -88 dBm - 11Mbps IEEE 802.11b -82 dBm - 12Mbps IEEE 802.11g -80 dBm - 18Mbps IEEE 802.11g -77 dBm - 24Mbps IEEE 802.11g -73 dBm - 36Mbps IEEE 802.11g -72 dBm - 48Mbps IEEE 802.11g -72 dBm - 54Mbps IEEE 802.11g | | Transmission Speed : | 54Mbps | | Transmit Power : | 100 mW IEEE 802.11b 20 dBm IEEE 802.11b 50 mW IEEE 802.11b 17 dBm IEEE 802.11b 30 mW IEEE 802.11g 15 dBm IEEE 802.11g 20 mW IEEE 802.11g 13 dBm IEEE 802.11g 10 mW IEEE 802.11g 10 dBm IEEE 802.11g 5 mW IEEE 802.11g 7 dBm IEEE 802.11g 1 mW IEEE 802.11g 0 dBm IEEE 802.11g | | Access Method : | CSMA/CA | | Antenna Range : | 27 m@ 54Mbps Indoors IEEE 802.11g 29 m@ 48Mbps Indoors IEEE 802.11g 30 m@ 36Mbps Indoors IEEE 802.11g 43 m@ 24Mbps Indoors IEEE 802.11g 55 m@ 18Mbps Indoors IEEE 802.11g 64 m@ 12Mbps Indoors IEEE 802.11g 76 m@ 9Mbps Indoors IEEE 802.11g 91 m@ 6Mbps Indoors IEEE 802.11g 76 m@ 54Mbps Outdoors IEEE 802.11g 183 m@ 18Mbps Outdoors IEEE 802.11g 396 m@ 6Mbps Outdoors IEEE 802.11g | | Channels : | 11 Channel(s)Operating IEEE 802.11b/g Americas 3 Channel(s)Non-overlapping | | Modulation : | OFDM: - BPSK @ 6 and 9 Mbps
- QPSK @ 12 and 18 Mbps
- 16-QAM @ 24 and 36 Mbps
- 64-QAM @ 48 and 54 Mbps
DSSS: - DBPSK @ 1 Mbps
- DQPSK @ 2 Mbps
- CCK @ 5.5 and 11 Mbps
| | Transmission Speed Details : | 1Mbps IEEE 802.11b 2Mbps IEEE 802.11b 5.5Mbps IEEE 802.11b 6Mbps IEEE 802.11g 9Mbps IEEE 802.11g 11Mbps IEEE 802.11b 12Mbps IEEE 802.11g 18Mbps IEEE 802.11g 24Mbps IEEE 802.11g 36Mbps IEEE 802.11g 48Mbps IEEE 802.11g 54Mbps IEEE 802.11g | | Wireless Security : | - Cisco Wireless Security Suite including:
- Authentication:
- 802.1X support including LEAP, PEAP, EAP-TLS, EAP-TTLS and EAP-SIM to yield mutual authentication and dynamic, per-user, per-session WEP keys
- MAC address and by standard 802.11 authentication mechanisms
- Encryption:
- Support for static and dynamic IEEE 802.11 WEP keys of 40 bits and 128 bits
- TKIP encryption enhancements: key hashing (per-packet keying), message integrity check (MIC) and broadcast key rotation via Cisco TKIP or WPA TKIP
- AES ready with full support in 2004
| | Wireless Technology : | IEEE 802.11b/g |
|
| Interfaces/Ports |

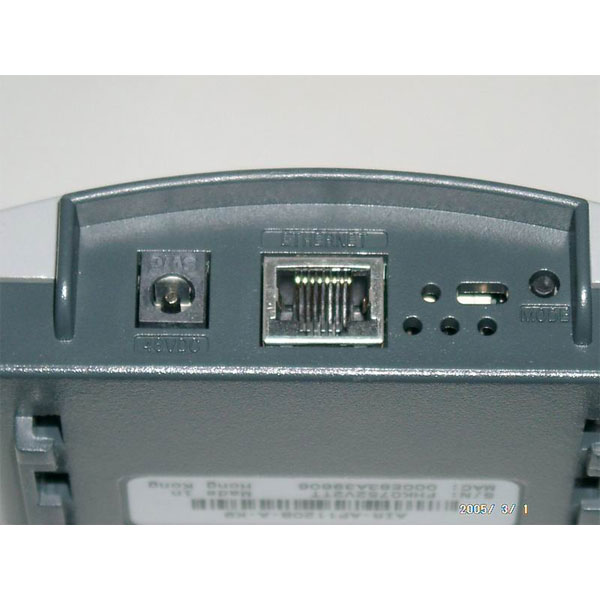

| Interfaces/Ports : | 1 x RJ-45 10/100Base-TX Auto-sensing Uplink | | Channels : | 11 Channel(s)Operating IEEE 802.11b/g Americas 3 Channel(s)Non-overlapping |
|
| Media & Performance |
| Data Transfer Rate : | 10Mbps Ethernet 100Mbps Fast Ethernet | | Connectivity Media : | Twisted Pair |
|
| I/O Expansions |
| Expansion Slots : | Not Applicable | | Modules : | Not Applicable | | Slot Details : | Not Applicable |
|
| Network & Communication |
| Antenna : | 2.2dBi Diversity Dipole Antenna Integrated | | Data Transfer Rate : | 10Mbps Ethernet 100Mbps Fast Ethernet | | Frequency Band/Bandwidth : | 2.412 GHz to 2.462 GHz IEEE 802.11b/g FCC | | Protocols : | BootP DHCP HTTP TFTP FTP PEAP TKIP ARP | | Receiver Sensitivity : | -95 dBm - 1Mbps IEEE 802.11b -91 dBm - 2Mbps IEEE 802.11b -89 dBm - 5.5Mbps IEEE 802.11b -90 dBm - 6Mbps IEEE 802.11g -84 dBm - 9Mbps IEEE 802.11g -88 dBm - 11Mbps IEEE 802.11b -82 dBm - 12Mbps IEEE 802.11g -80 dBm - 18Mbps IEEE 802.11g -77 dBm - 24Mbps IEEE 802.11g -73 dBm - 36Mbps IEEE 802.11g -72 dBm - 48Mbps IEEE 802.11g -72 dBm - 54Mbps IEEE 802.11g | | Stackable : | Not Applicable | | Transmit Power : | 100 mW IEEE 802.11b 20 dBm IEEE 802.11b 50 mW IEEE 802.11b 17 dBm IEEE 802.11b 30 mW IEEE 802.11g 15 dBm IEEE 802.11g 20 mW IEEE 802.11g 13 dBm IEEE 802.11g 10 mW IEEE 802.11g 10 dBm IEEE 802.11g 5 mW IEEE 802.11g 7 dBm IEEE 802.11g 1 mW IEEE 802.11g 0 dBm IEEE 802.11g | | Antenna Range : | 27 m@ 54Mbps Indoors IEEE 802.11g 29 m@ 48Mbps Indoors IEEE 802.11g 30 m@ 36Mbps Indoors IEEE 802.11g 43 m@ 24Mbps Indoors IEEE 802.11g 55 m@ 18Mbps Indoors IEEE 802.11g 64 m@ 12Mbps Indoors IEEE 802.11g 76 m@ 9Mbps Indoors IEEE 802.11g 91 m@ 6Mbps Indoors IEEE 802.11g 76 m@ 54Mbps Outdoors IEEE 802.11g 183 m@ 18Mbps Outdoors IEEE 802.11g 396 m@ 6Mbps Outdoors IEEE 802.11g | | Channels : | 11 Channel(s)Operating IEEE 802.11b/g Americas 3 Channel(s)Non-overlapping | | Wireless Technology : | IEEE 802.11b/g |
|
| Management & Protocols |
| Protocols : | BootP DHCP HTTP TFTP FTP PEAP TKIP ARP | | Operating System : | - Cisco 1100 Series IOS Wireless LAN
| | Status Indicators : | - Three indicators on the top panel report:
- Association status
- Operation
- Error/warning
- Firmware upgrade
- Configuration
- Network/modem
- Radio status
| | Management : | - CiscoWorks
- CiscoView
- Resource Manager Essentials
- Campus Manager
- Telnet
- SNMP
|
|
| Memory |
| Memory : | 16MB RAM Installed 8MB Flash Memory Installed |
|
| Controls/Indicators |
| Controls : | Duplex-mode Switch | | Status Indicators : | - Three indicators on the top panel report:
- Association status
- Operation
- Error/warning
- Firmware upgrade
- Configuration
- Network/modem
- Radio status
|
|
| Power Description |
| Input Voltage : | 100 V ACto 240 V AC Power Supply 33 V DCto 57 V DC Device | | Power Supply : | AC External | | Frequency : | 50 Hz or 60 Hz | | Power Consumption : | 4.9W |
|
| Environmental Conditions |
| Humidity : | 10% to 90% Non-condensing Operating | | Temperature : | 0 ¦C to 40 ¦C Operating |
|
| Physical Characteristics |
| Dimensions : | 20.57cm Height x 10.41cm Width x 3.81cm Depth | | Shipping Dimensions : | 11.43cm Height x 43.54cm Width x 23.34cm Depth | | Shipping Weight : | 1.87 kg | | Weight : | 297.67 g | | Form Factor : | Wall-mountable Ceiling-mountable Desktop |
|
| Miscellaneous |
| Additional Information : | Wireless medium: - Orthogonal Frequency Division Multiplexing (OFDM)
- Direct sequence spread spectrum (DSSS)
| | Package Contents : | - Cisco Aironet 1100 Series Access point power pack
- Wall or ceiling mounting bracket
- Security hasp adapter
- Cubical partition mounting bracket assembly
- Horizontal surface mounting holster
- Mounting hardware kit
- Product registration card
- S11W7K9-12213JA: Cisco 1100 Series IOS Wireless LAN
| | Operating System : | - Cisco 1100 Series IOS Wireless LAN
| | Certifications & Standards : | Safety: - UL 1950
- CSA 22.2 No. 950-95
- IEC 60950
- EN 60950
Radio Approvals: - FCC Part 15.247
- RSS-210 (Canada)
EMI and Susceptibility (Class B): - FCC Part 15.107 and 15.109
- ICES-003 (Canada)
- 802.1X and TKIP
- WPA
- AES ready
Other: - IEEE 802.3
- IEEE 802.11b
- IEEE 802.11g
- FCC Bulletin OET-65C
- RSS-102
- Wi-Fi Certified
SNMP compliance:
| | Management : | - CiscoWorks
- CiscoView
- Resource Manager Essentials
- Campus Manager
- Telnet
- SNMP
|
|
| Warranty |
| Standard Warranty : | 1 Year(s) |
|
