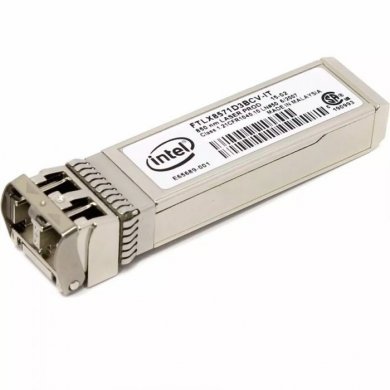

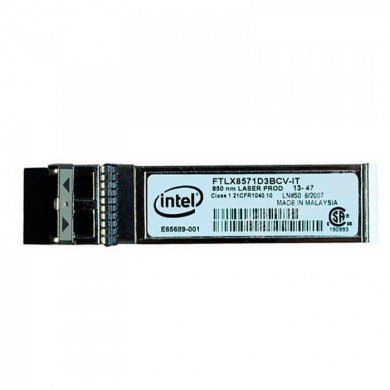

AOC-E10GSFPSR Intel Supermicro Tranceiver 10G SFP+

Name: AOC-E10GSFPSR Intel Supermicro Tranceiver 10G SFP+
Brand: SUPERMICRO
SKU: AOC-E10GSFPSR
Price: 500.00 BRL
Availability: InStock

10GBase-SR 1000Base-SX Dual Rate SFP+ 850nm LC FTLX8571D3BCVIT1

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 500,00

à vista no Pix ou Boleto

ou R$ 525,54 em 1x no cartão (via site)

ou R$ 554,74 no cartão em até 10x sem juros (apenas na loja física)

R$ 500,00

à vista no Pix ou Boleto

R$ 525,54
em 1x no cartão (via site)

R$ 554,74 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem antiestática

Garantia:

24 meses direto com a Net Computadores

NCM:

85176259

R$ 500,00

à vista no pix

Comprar

Condição:
Novo em embalagem antiestática

Garantia:
24 meses direto com a Net Computadores

NCM: 85176259

Cotação PJ mais de uma unidade

Indicar AOC-E10GSFPSR

AOC-E10GSFPSR Intel Supermicro Tranceiver 10G SFP+
10GBase-SR 1000Base-SX Dual Rate SFP+ 850nm LC FTLX8571D3BCVIT1

Condição de AOC-E10GSFPSR: Novo em embalagem antiestática

Garantia de AOC-E10GSFPSR: 24 meses direto com a Net Computadores

The Supermicro AOC-E10GSFPSR is a flexible 10Gb Ethernet SFP transceiver. Supporting fiber optic cable for long distance connections, it is an attractive choice for those looking to extend the reach of their server systems beyond the standard 8m with copper cable.
Compatible Intel X710 X520
Key Features
- Hot-pluggable SFP
- Supports rate selectable 1.25Gb/s or 9.95 to 10.3Gb/s bit rates
- Power dissipation < 1W
- RoHS 6/6 compliant (lead free)
- Commercial temperature range 0°C to 70°C
- Single 3.3 Vdc power supply
- Max. link length 300m on 2000MHz-km MMF
- Ucooled 850nm VCSEL laser
- Receiver limiting electrical interface
- Duplex LC connector
- Built-in digital diagnostic s
Compatibility:
Add-on Cards: AOC-STGN-i2S
Switches: SSE-G24-TG4, SSE-G48-TG4, SSE-X24S, SBM-GEM-X2C , SBM-XEM-X10SM, SBM-XEM-002M
Motherboards: X8DTU-6TF
Servers: 1026T-6RFT , 6016T-6RFT , 2026T-6RFT , 6026T-6RFT , 1027R-72RFTP, 6017R-72RFTP, 1027R-72BRFTP, 6027R-72RFTP , 2027R-72RFTP
Cable: Fiber Optic SR (850nm) cable, LC to LC Multimode (Not Included) AOC-E10GSFPSR Cable
Specifications
- Network Standards Physical Layer Interface:
- 1000BASE-SX 1G Ethernet
- 10GBASE-SR 10G Ethernet
- SFP Module Specifications:
- Electrical interface: SFF-8431 Rev. 4.1
- I2C Register interface: SFF-8472 Rev. 1.02
- Mechanical: SFF-8432 Rev. 5.0
- Supported Distance at 10G:
- 300m with 50µm Fiber: OM3 2000 MHz-km
- 82m with 50µm Fiber: OM2 500 MHz-km
- 66m with 50µm Fiber: 400 MHz-km
- 33m with 62.5µm Fiber: OM1 200 MHz-km
- 26m with 62.5µm Fiber: 160 MHz-km
- Supported Distance at 1G:
- >550m with 50µm Fiber: OM3 2000 MHz-km
- 550m with 50µm Fiber: OM2 500 MHz-km
- 500m with 50µm Fiber: 400 MHz-km
- 275m with 62.5µm Fiber: OM1 200 MHz-km
- 220m with 62.5µm Fiber: 160 MHz-km
- Environment Specifications:
- Operating temperature: 0°C to 70°C case temperature

Maiores detalhes de AOC-E10GSFPSR no site do fabricante:
http://www.supermicro.com/products/accessories/addon/aoc-e10gsfpsr.cfm
