AOC-S3108L-H8IR Controladora LSI Supermicro SAS/SATA 12G

8 Canais 12Gbs 2GB Cache / 2 Conectores IPASS SFF-8643 / RAID 0, 1, 5, 6, 10, 50, 60 / PCI-E 3.0 x8

AOC-S3108L-H8IR - SUPERMICRO
AOC-S3108L-H8IR Controladora LSI Supermicro SAS/SATA 12G
*As imagens podem ser ilustrativas
Controladora LSI Supermicro SAS/SATA 12GControladora LSI Supermicro SAS/SATA 12GControladora LSI Supermicro SAS/SATA 12G

R$ 1.566,00

à vista no Pix ou Boleto

ou R$ 1.647,80 em 1x no cartão (via site)

ou R$ 1.739,34 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.566,00

à vista no Pix ou Boleto

R$ 1.647,80
em 1x no cartão (via site)

R$ 1.739,34 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
12 meses direto com a Net Computadores

NCM:
84733049

R$ 1.566,00

à vista no pix

Condição:
Novo em embalagem antiestática

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

AOC-S3108L-H8IR Controladora LSI Supermicro SAS/SATA 12G
8 Canais 12Gbs 2GB Cache / 2 Conectores IPASS SFF-8643 / RAID 0, 1, 5, 6, 10, 50, 60 / PCI-E 3.0 x8

Condição de AOC-S3108L-H8IR:    Novo em embalagem antiestática

Garantia  de  AOC-S3108L-H8IR:     12 meses direto com a Net Computadores



AOC-S3108L-H8IR SAS 3.0
Chipset: LSI SAS 3108
Portas: 2 IPASS SFF-8643
Suporta até 240 HDD
Suporte RAID: 0, 1, 5, 6, 10, 50, 60
Memória: 2GB 1866MHz DDR3
Interface PCI-e x8

Suporte para Windows 2012, 2k8 64/32 bit, RedHat Enterprise and SUSE Linux
- Power management support
- Port independent auto-negotiation
- On board hardware IO Processor
- 8-port (8 internal) 12Gb/s per port
- 2GB 1866MHz DDR3 on-card cache
- Automatically negotiates PCI-E link widths
- Supports SSP, SMP, STP and SATA protocols
- Advanced array configuration and management utilities
- Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates

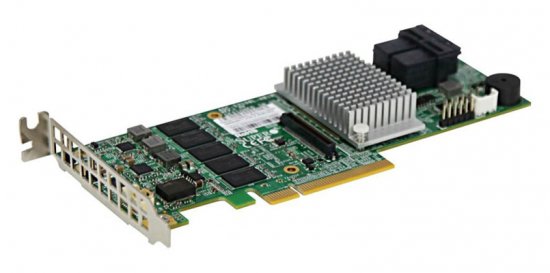

Supermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID Adapter
The Supermicro MegaRAID Low Profile AOC-S3108L-H8iR features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the LSI Logic SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.

With the option of SuperCap/TFM unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.
Use a LSI SAS 3108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth. This RAID adapter delivers an intelligent and robust RAID solution.

The AOC-S3108L-H8iR supports up to 240 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60. The AOC-S3108L-H8iR-16DD supports up to 16 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60.

- LSI SAS 3108 8-port PCI-E SAS-3 controller
- 8-port (8 internal) 12Gb/s per port
- Supports RAID 0, 1, 5, 6, 10, 50, 60
- On board hardware IO Processor
- 2GB 1866MHz DDR3 on-card cache
- Advanced array configuration and management utilities
- Automatically negotiates PCI-E link widths
- Power management support
- Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data
   transfer rates
- Port independent auto-negotiation
- Supports SSP, SMP, STP and SATA protocols
- Optional Supercap/TFM Unit for cached data protection
   (BTR-TFM8G-LSICVM02) - operating temperature (Ambient)
   from 10C - 55C
- OS Support : Windows 2012, 2k8 64/32 bit, RedHat
   Enterprise and SUSE Linux


Maiores detalhes de AOC-S3108L-H8IR no site do fabricante:
http://www.supermicro.com/products/accessories/addon/aoc-s3108l-h8ir.cfm


Tags de AOC-S3108L-H8IR: Controladora SAS SATA, BTR-0018L-KIT, LSI SAS 3108, RAID0110565060, Super X9DRi-LN4F+, 6027R-E1CR12N, AOC-CHCD-PRO2-ESW, BTR-TFM8G-LSICVM02, MCP-240-001270N, AOC-S3108L-H8iR-16DD, Controladora para SSD, Controladora RAID SSD, controladora RAID de 12GB/s por porta, 12GBs, BTR-TFM8G-LSICVM02, Controladora SATA, X10SRi-F, X10SRW-F, X9SRH-7F, X9DR3-LN4F+, X9DRW-CF31, X9DRT-PIBQ, Controladora Raid, Placa Raid, AOC-S3108L-H8IR, AOC S3108L H8IR, Controladora com 2Gb Cache, Controladora RAID, AOCS3108LH8IR, SFF-8643, SFF8643, SUPERMICRO

AOC-S3108L-H8IR Controladora LSI Supermicro SAS/SATA 12G 8 Canais 12Gbs 2GB Cache / 2 Conectores IPASS SFF-8643 / RAID 0, 1, 5, 6, 10, 50, 60 / PCI-E 3.0 x8

Condição de AOC-S3108L-H8IR:
Novo em embalagem antiestática

Garantia  de  AOC-S3108L-H8IR:
12 meses direto com a Net Computadores


AOC-S3108L-H8IR SAS 3.0
Chipset: LSI SAS 3108
Portas: 2 IPASS SFF-8643
Suporta até 240 HDD
Suporte RAID: 0, 1, 5, 6, 10, 50, 60
Memória: 2GB 1866MHz DDR3
Interface PCI-e x8

Suporte para Windows 2012, 2k8 64/32 bit, RedHat Enterprise and SUSE Linux
- Power management support
- Port independent auto-negotiation
- On board hardware IO Processor
- 8-port (8 internal) 12Gb/s per port
- 2GB 1866MHz DDR3 on-card cache
- Automatically negotiates PCI-E link widths
- Supports SSP, SMP, STP and SATA protocols
- Advanced array configuration and management utilities
- Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates

Supermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID Adapter
The Supermicro MegaRAID Low Profile AOC-S3108L-H8iR features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the LSI Logic SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.

With the option of SuperCap/TFM unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.
Use a LSI SAS 3108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth. This RAID adapter delivers an intelligent and robust RAID solution.

The AOC-S3108L-H8iR supports up to 240 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60. The AOC-S3108L-H8iR-16DD supports up to 16 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60.

- LSI SAS 3108 8-port PCI-E SAS-3 controller
- 8-port (8 internal) 12Gb/s per port
- Supports RAID 0, 1, 5, 6, 10, 50, 60
- On board hardware IO Processor
- 2GB 1866MHz DDR3 on-card cache
- Advanced array configuration and management utilities
- Automatically negotiates PCI-E link widths
- Power management support
- Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data
   transfer rates
- Port independent auto-negotiation
- Supports SSP, SMP, STP and SATA protocols
- Optional Supercap/TFM Unit for cached data protection
   (BTR-TFM8G-LSICVM02) - operating temperature (Ambient)
   from 10C - 55C
- OS Support : Windows 2012, 2k8 64/32 bit, RedHat
   Enterprise and SUSE Linux


Maiores detalhes de AOC-S3108L-H8IR no site do fabricante:
http://www.supermicro.com/products/accessories/addon/aoc-s3108l-h8ir.cfm


Tags de AOC-S3108L-H8IR: Controladora SAS SATA, BTR-0018L-KIT, LSI SAS 3108, RAID0110565060, Super X9DRi-LN4F+, 6027R-E1CR12N, AOC-CHCD-PRO2-ESW, BTR-TFM8G-LSICVM02, MCP-240-001270N, AOC-S3108L-H8iR-16DD, Controladora para SSD, Controladora RAID SSD, controladora RAID de 12GB/s por porta, 12GBs, BTR-TFM8G-LSICVM02, Controladora SATA, X10SRi-F, X10SRW-F, X9SRH-7F, X9DR3-LN4F+, X9DRW-CF31, X9DRT-PIBQ, Controladora Raid, Placa Raid, AOC-S3108L-H8IR, AOC S3108L H8IR, Controladora com 2Gb Cache, Controladora RAID, AOCS3108LH8IR, SFF-8643, SFF8643, SUPERMICRO
