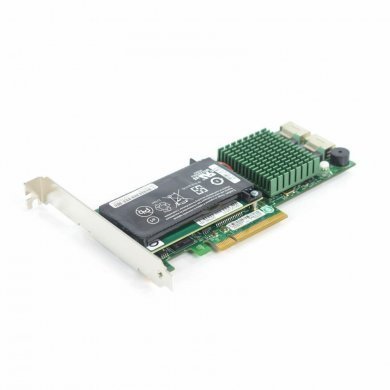

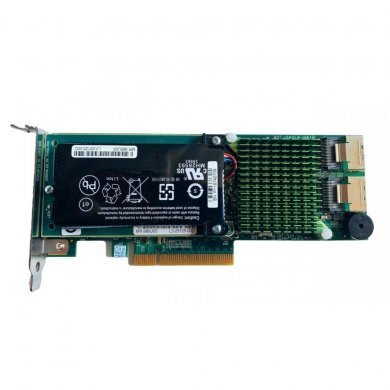

AOC-SASLP-H8IR Supermicro controladora SAS/SATA RAID 3Gbps

8 canais 3Gbps 512MB Cache / 2x Conectores internos / RAID 0, 1, 5, 6, 10, 50 e 60 / PCI-E x8

AOC-SASLP-H8IR Supermicro controladora SAS/SATA RAID 3Gbps

*As imagens podem ser ilustrativas

Supermicro controladora SAS/SATA RAID 3Gbps

avise-me quando disponível

R$ 993,00

à vista no Pix ou Boleto

ou R$ 1.045,20 em 1x no cartão (via site)

ou R$ 1.103,27 no cartão em até 10x sem juros (apenas na loja física)

R$ 993,00

à vista no Pix ou Boleto

R$ 1.045,20
em 1x no cartão (via site)

R$ 1.103,27 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Seminovo testado e pronto para uso!

Garantia:

3 meses direto com a Net Computadores

NCM:

84733049

Condição:
Seminovo testado e pronto para uso!

Garantia:
3 meses direto com a Net Computadores

NCM: 84733049

Cotação PJ mais de uma unidade

Indicar AOC-SASLP-H8IR

AOC-SASLP-H8IR Supermicro controladora SAS/SATA RAID 3Gbps
8 canais 3Gbps 512MB Cache / 2x Conectores internos / RAID 0, 1, 5, 6, 10, 50 e 60 / PCI-E x8

Condição de AOC-SASLP-H8IR: Seminovo testado e pronto para uso!

Garantia de AOC-SASLP-H8IR: 3 meses direto com a Net Computadores

Outros PNs para este item: AOC-SASLP-H8IR-FI005

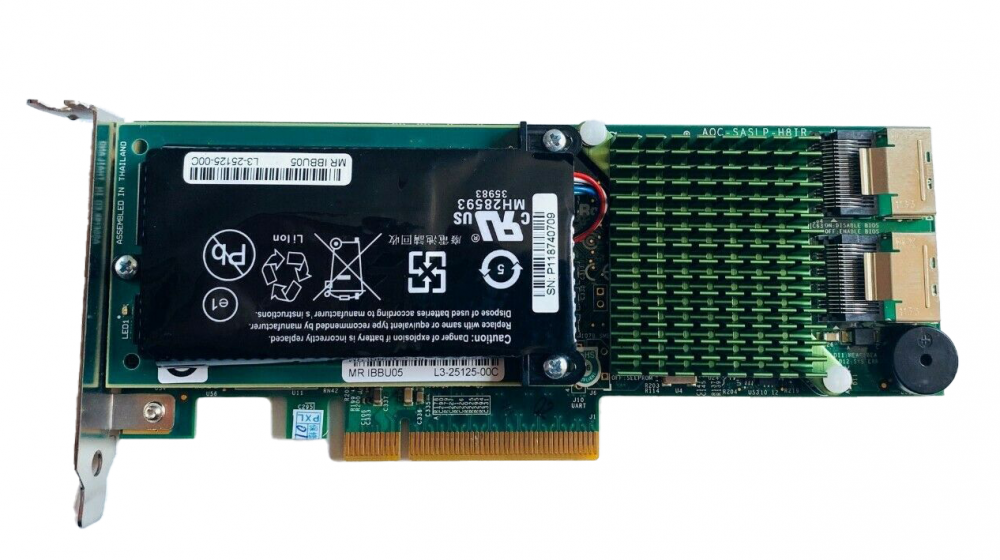

*Acompanha BBU (bateria)

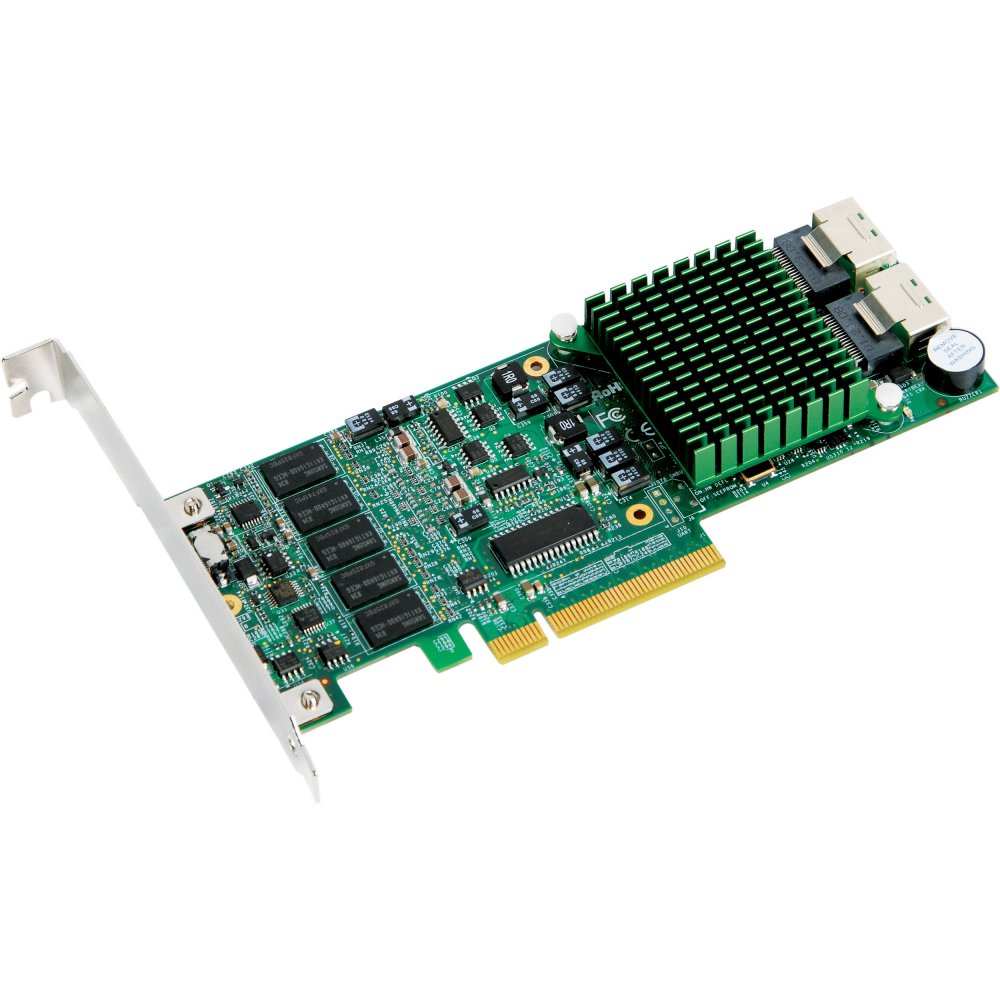

Supermicro Low Profile 3Gb/s Eight-Port SAS Internal RAID Adapter

The Supermicro UIO MegaRAID Low Profile AOC-USASLP-H8iR features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the Broadcom SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.

With the option of battery backup unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.

Using a Broadcom 1078 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth, this UIO internal RAID adapter deliver an intelligent and robust RAID solution.

The AOC-USASLP-H8iR supports up to 240 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60.

Compliance

RoHS	RoHS Compliant 6/6


Dimensions

6,88cm x 16,91cm (H x L)

Key Features

Broadcom 1078 8-port PCI-E SAS controller 8-port (8 internal) 3Gb/s per port Supports RAID 0, 1, 5, 6, 10, 50, 60 On board hardware IO Processor 512MB 667MHz DDR2 on-card cache Advanced array configuration and management utilities Automatically negotiates PCI-E link widths Power management support Supports 1.5 and 3.0 Gb/s SAS and SATA data transfer rates Port independent auto-negotiation Supports SSP, SMP, STP and SATA protocols Optional Battery Backup Unit for cached data protection (BTR-0012L-0000-LSI) - operating temperature (Ambient) from 10C° - 45C° OS Support : Windows 2008/2003/Vista/XP, RedHat Enterprise and SUSE Linux

Compatible UIO Motherboards and Servers

Motherboards
H8SMU
H8DMU
PDSMU
X7DAL-E
X7DAL-E
X7DBN
X7DBU
X7DCU
X7DWA-N
X7DWN
X7DWU

Servers
6015B-UR
6015B-NTR
6015B-NT
6015B-U
5015M-NT
5015M-UR
5015M-Ni

Maiores detalhes de AOC-SASLP-H8IR no site do fabricante:
https://www.supermicro.com/en/products/accessories/addon/AOC-USASLP-H8iR.php

Tags de AOC-SASLP-H8IR: CBL - 0108L-02, AOC-SASLP-H8IR, AOC SASLP H8IR, AOC-SASLP-H8IR-FI005, AOC SASLP H8IR FI005, Supermicro controladora SAS/SATA RAID 3Gbps, Supermicro controladora SAS/SATA RAID, Supermicro controladora SAS/SATA, Supermicro controladora SAS, Supermicro controladora, controladora Supermicro, controladora 8 canais 3Gbps 512MB Cache, controladora 8 canais 3Gbps, controladora 8 canais, controladora 8 portas, controladora sas II, controladora sas 2, controladora sas 300mbs, controladora sas 300mbps, controladora sas 300mb/s, low profile, low-profile, controladora low profile, controladora raid perfil baixo, controladora sas perfil baixo, controladora raid sas perfil baixo, controladora raid 2 conectores internos, controladora sas 2 conectores internos, controladora raid sas 2 conectores internos, RAID 0 1 5 6 10 50 e 60, raid 0, raid 1, raid 5, raid 6, raid 10, raid 50, raid 60, controladora PCI-E x8, controladora PCI E x8, controladora PCI-Express x8, controladora sas 3gbps, controladora sas 3 gbps, supermicro, AOC-SAS2LP-H8IR, Controladora Supermicr0 Aoc-sas2lp-h8ir Raid Sas Pci-ex8 51, AOC-USAS2LP-H8iR, A21534-6O, Supermicro AOC-SASLP-H8iR 8-port PCIe RAID Adapter SAS/SATA 512MB 3Gb/s, 202615166228, Add-on Card AOC-USASLP-H8iR, AOC-USASLP-H8iR Controladora SAS Supermicro 8 Portas, Supermicro controladora SAS/SATA RAID 6Gbs, Supermicro Low-Profile SAS 8-Port with CDR, Supermicro AOC-SASLP-H8IR Storage Controller Card, Supermicro AOC-SASLP-H8IR RAID controller PCI Express, Supermicro AOC-SASLP-H8iR 8-port RAID Adapter SAS, MR IBBU05, L3-25125-00C, LS1111001B, L3 25125 00C, Bateria IBBU 4V, Bateria IBBU, LSI 35983-01 Rev.B 5.2Wh, LSI 35983-01 Rev.B, LSI 35983-01 5.2Wh, LSI 35983-01, 35983-01, megaraid, mega raid, mega-raid, L1-25125-00, Broadcom 1078, 1078, 512MB 667MHz DDR2 cache integrado, 512MB 667MHz DDR2 cache, cache 512MB DDR2, 1.5 Gb/s SAS SATA, 3.0 Gb/s SAS SATA, controladora SSP, controladora SMP, controladora STP, controladora SATA, Battery Backup Unit, BBU, IBBU, BTR-0012L-0000-LSI, UIO MegaRAID, UIO, controladora 240 HDs, controladora 240 HD, controladora 240 discos, controladora low-profile, controladora supermicro low profile, H8SMU, H8DMU+, PDSMU, X7DAL-E, X7DAL-E+, X7DBN, X7DBU, X7DCU, X7DWA-N, X7DWN+, X7DWU, 6015B-UR, 6015B-NTR, 6015B-NT, 6015B-U, 5015M-NT, 5015M-UR, 5015M-Ni, FI005, CBL- 0108L-02, CBL 0108L 02, usado, seminovo, SUPERMICRO

AOC-SASLP-H8IR Supermicro controladora SAS/SATA RAID 3Gbps 8 canais 3Gbps 512MB Cache / 2x Conectores internos / RAID 0, 1, 5, 6, 10, 50 e 60 / PCI-E x8

Condição de AOC-SASLP-H8IR:
Seminovo testado e pronto para uso!

Garantia de AOC-SASLP-H8IR:
3 meses direto com a Net Computadores

Outros PNs para este componente: AOC-SASLP-H8IR-FI005

Compliance

RoHS	RoHS Compliant 6/6


Dimensions

6,88cm x 16,91cm (H x L)

Key Features

Broadcom 1078 8-port PCI-E SAS controller 8-port (8 internal) 3Gb/s per port Supports RAID 0, 1, 5, 6, 10, 50, 60 On board hardware IO Processor 512MB 667MHz DDR2 on-card cache Advanced array configuration and management utilities Automatically negotiates PCI-E link widths Power management support Supports 1.5 and 3.0 Gb/s SAS and SATA data transfer rates Port independent auto-negotiation Supports SSP, SMP, STP and SATA protocols Optional Battery Backup Unit for cached data protection (BTR-0012L-0000-LSI) - operating temperature (Ambient) from 10C° - 45C° OS Support : Windows 2008/2003/Vista/XP, RedHat Enterprise and SUSE Linux
