Key Features

The key features of this add-on card include the following:
? Low-Profile Standard Form Factor in 3.9-inch in Length
? PCI Express 2.1 (2.5GT/s or 5GT/s)
? Four RJ-45 ports
? Intel® I/O Acceleration Technology (I/O AT) supported
? Support of VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
? Jumbo Frame Support of up to 9.5KB
? IEEE 802.3az ? Energy Efficient Ethernet (EEE)
? Low Power Consumption (5W Typical)
? iSCSI Remote Boot support
? Flexible I/O Virtualization and Quality of Service (QoS)
? PXE Boot Support
? RoHS compliant 6/6
Specifications

General

? Intel® i350 GbE controller
? Compact size low-profile standard form factor
? PCI-E 2.1 x4 (2.5GT/s or 5GT/s) interface
? Four RJ-45 connectors
? Intel® PROSet Utility for Windows® Device Manager
? Intel® I/O Acceleration Technology (I/O AT)
? Power consumption: about 5W
Ethernet Features

? IEEE 802.3 auto-negotiation for speed, duplex, and flow control
? IEEE 802.3x and 802.3z compliant flow control support
? Automatic cross-over detection function (MDI/MDI-X)
? 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications compliant
? IEEE 1588 protocol and 802.1AS implementation
Power Management and Efficiency

? IEEE 802.3az ? Energy Efficient Ethernet (EEE) which reduces power consumption of the PHY by about 50%
? DMA Coalescing reduces platform power consumption
? Active State Power Management (ASPM) support
? LAN disable function
? MAC Power Management controls
? Low Power Link Up ? Link Speed Control

Tags de AOC-SGP-I4: AOC-SGP-I4, AOCSGPI4, 647594-B21, AOC-SGP-I2, AT-2973T/4-901, ST1000SPEX4, E1G44HT, A5506-60102, Placa de Rede 4 portas, DFE-580TX, A5506A, A5506B, H0554E-000-B02, FW21154AE, A5506-6, placa quad port, Placa de Rede Quad Port, Placa de Rede Server, MCP-240-00061-0N, SUPERMICRO

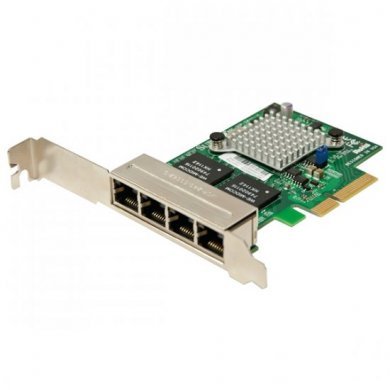

AOC-SGP-I4 Placa de Rede Supermicro Quad Gigabit Intel i350 PCI-E 2.1 x4, 4x RJ45 10/100/1000 Espelho Alto e Baixo

Condição de AOC-SGP-I4:
Novo em embalagem antiestática

Garantia de AOC-SGP-I4:
12 meses direto com a Net Computadores

Key Features

The key features of this add-on card include the following:
- Low-Profile Standard Form Factor in 3.9-inch in Length
- PCI Express 2.1 (2.5GT/s or 5GT/s)
- Four RJ-45 ports
- Intel® I/O Acceleration Technology (I/O AT) supported
- Support of VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
- Jumbo Frame Support of up to 9.5KB
- IEEE 802.3az - Energy Efficient Ethernet (EEE)
- Low Power Consumption (5W Typical)
- iSCSI Remote Boot support
- Flexible I/O Virtualization and Quality of Service (QoS)
- PXE Boot Support
- RoHS compliant 6/6
Specifications

General

- Intel® i350 GbE controller
- Compact size low-profile standard form factor
- PCI-E 2.1 x4 (2.5GT/s or 5GT/s) interface
- Four RJ-45 connectors
- Intel® PROSet Utility for Windows® Device Manager
- Intel® I/O Acceleration Technology (I/O AT)
- Power consumption: about 5W
Ethernet Features

- IEEE 802.3 auto-negotiation for speed, duplex, and flow control
- IEEE 802.3x and 802.3z compliant flow control support
- Automatic cross-over detection (MDI/MDI-X)
- 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications compliant
- IEEE 1588 protocol and 802.1AS implementation
Power Management and Efficiency

- IEEE 802.3az - Energy Efficient Ethernet (EEE) which reduces power consumption of the PHY by about 50%
- DMA Coalescing reduces platform power consumption
- Active State Power Management (ASPM) support
- LAN disable
- MAC Power Management controls
- Low Power Link Up - Link Speed Control
