KVM Switch / Chaveadores KVM / AP5201

KVM Switch / Chaveadores KVM

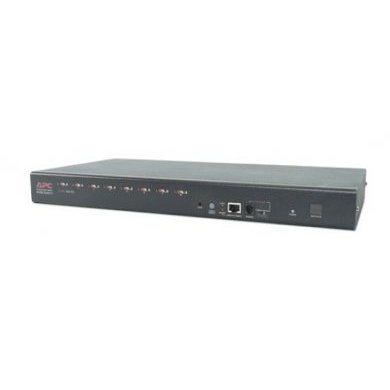

AP5201 Switch KVM APC 8 Portas Multi-Plataforma

Name: AP5201 Switch KVM APC 8 Portas Multi-Plataforma
Brand: APC
SKU: AP5201
Price: 8047.00 BRL
Availability: InStock

Utiliza Cabos AP5250 AP5253

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 8.047,00

à vista no Pix ou Boleto

ou R$ 8.470,46 em 1x no cartão (via site)

ou R$ 8.941,04 no cartão em até 10x sem juros (apenas na loja física)

R$ 8.047,00

à vista no Pix ou Boleto

R$ 8.470,46
em 1x no cartão (via site)

R$ 8.941,04 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses Assist. Técnica do Fabricante

NCM:

85365090

Condição:
Novo em embalagem comercial

Garantia:
12 meses Assist. Técnica do Fabricante

NCM: 85365090

Cotação PJ mais de uma unidade

Indicar AP5201

AP5201 Switch KVM APC 8 Portas Multi-Plataforma
Utiliza Cabos AP5250 AP5253

Condição de AP5201: Novo em embalagem comercial

Garantia de AP5201: 12 meses Assist. Técnica do Fabricante

General Information

Product Type :	Analog KVM Switch
Manufacturer Part Number :	AP5201
Manufacturer Website Address :	www.apc.com
Marketing Information :	The KVM Switch can connect up to 32 switches to provide direct control of 16 computers or controlof up to 512 computers through serial connections, using only one keyboard, monitor, and mouse.Automatic scanning feature, Cascading Capabilities, Hot Pluggable Operation, Keep Alive , Microsoft Intellimouse support, Occupies 1U of rack space, On-Screen Display (OSD) capability, PC mouse/keyboard/video support, Powder coat paint finish, Status Indicator LEDs
Manufacturer :	American Power Conversion Corp
Product Name :	8 Port Multi-Platform Analog KVM Switch
Brand Name :	APC

Technical Information

Number of Computers :	8
Graphics Resolution :	1920 x 1440
Scan Intervals :	1 to 255 seconds
Number of Users :	1 x Local User
Video Signals :	VGA SVGA MultiSync

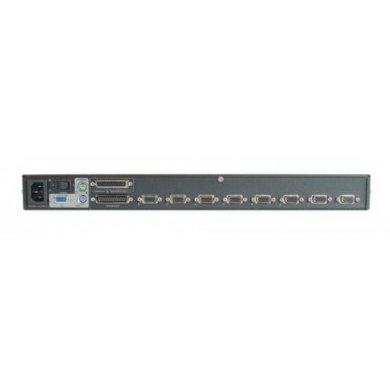

Interfaces/Ports

Computer Ports :	8 x SPDB-15 Female
Other Ports :	1 x RJ-45 Network 1 x RJ-11 Flash-upgrade 1 x 25-pin DB-25 Female Daisy-chain Out 1 x 25-pin DB-25 Male Daisy-chain In
User/Console Ports :	1 x 15-pin HD-15 Female VGA/SVGA 1 x mini-DIN (PS/2) Female Keyboard 1 x mini-DIN (PS/2) Female Mouse

Power Description

Input Voltage :	100 V AC to 240 V AC 9 V DC
Frequency :	50 Hz or 60 Hz
Power Consumption :	8 W Maximum

Environmental Conditions

Humidity :	0 to 80% Relative Humidity
Temperature :	32 °F (0.0 °C) to 122 °F (50.0 °C) Operating -4 °F (-20.0 °C) to 140 °F (60.0 °C) Storage

Physical Characteristics

Dimensions :	1.75 Height x 17 Width x 8.25 Depth
Shipping Dimensions :	5 Height x 20 Width x 13 Depth
Shipping Weight :	11 lb
Weight :	10 lb
Color :	Black
Form Factor :	1U 19 Rack-mountable

Miscellaneous

Additional Information :	The keep-alive feature assures all the keyboard and mouse connections work properly if the KVM Switch loses power temporarily. Auto-sensing of KVM station positions for serially-connected installations, which are indicated on the front panel LED. Port names automatically reconfigure when the station sequence is changed. No software is required; select a computer by using the On-Screen Display (OSD) menu or Hot Key combination. AutoScan offers monitoring of connected computers.
Package Contents :	1 x KVM Switch AP5201 (8 port) 1 x Configuration cable 1 x L5-15 to IEC power cable 2 x Brackets for a 19-inch enclosure 1 x Installation Manual 1 x KVM Switch Utility CD 1 x Warranty card
Compatibility :	Microsoft Intellimouse Microsoft Intellimouse explorer Logitech FirstMouse
Platform Support :	PC
Certifications e Standards :	FCC Part 15 Class A ICES Class A: Canadian ICES-003 VCCI Class A AS/NZS 3548 (C-Tick) Class A ICES-003 IEC 60950 UL 60950
System Requirements :	Console: VGA, SVGA, or Multisync monitor capable of the highest resolution that you plan to use on any computer in the installation PS/2-style mouse PS/2-style keyboard Computer: VGA, SVGA or Multisync card 6-pin mini-DIN (PS/2 style) mouse port (The KVM Switch does not support serial mice. You cannot use serial-to-PS/2 adapters with the cables) Keyboard port: 6-pin mini-DIN (PS/2 style) keyboard port with 5VDC on pin 4 and ground on pin 3 5-pin DIN (AT style) keyboard port with 5VDC on pin 5 and ground on pin 4 If your computer uses an AT-style keyboard socket, purchase a PS/2-to-AT keyboard adapter to plug the cable into the keyboard port on the computer

Warranty

Parts Warranty/Labor :	2 Year
Standard Warranty :	2 Year

Maiores detalhes de AP5201 no site do fabricante:
http://www.apc.com/resource/include/techspec_index.cfm?base_sku=AP5201
