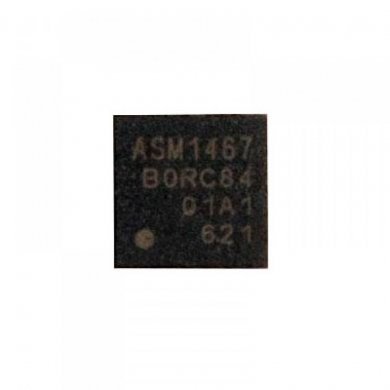

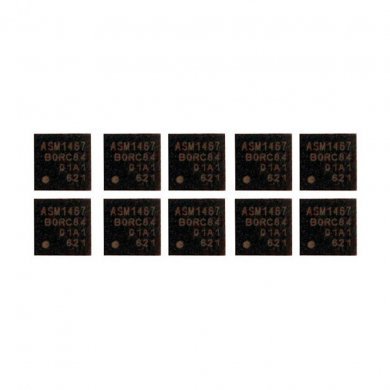

ASM1467-KIT10 CI ASMEDIA REDRIVER NGFF INTERFACE - Kit 10 und

Name: ASM1467-KIT10 CI ASMEDIA REDRIVER NGFF INTERFACE - Kit 10 und
Brand: ASMEDIA
SKU: ASM1467-KIT10
Price: 15.00 BRL
Availability: InStock

4X4 MM2 QFN 20L

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 15,00

à vista no Pix ou Boleto

ou R$ 15,79 em 1x no cartão (via site)

ou R$ 16,67 no cartão em até 10x sem juros (apenas na loja física)

R$ 15,00

à vista no Pix ou Boleto

R$ 15,79
em 1x no cartão (via site)

R$ 16,67 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85389010

R$ 15,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85389010

Cotação PJ mais de uma unidade

Indicar ASM1467-KIT10

ASM1467-KIT10 CI ASMEDIA REDRIVER NGFF INTERFACE - Kit 10 und
4X4 MM2 QFN 20L

Condição de ASM1467-KIT10: Novo em embalagem comercial

Garantia de ASM1467-KIT10: 3 meses direto com a Net Computadores

The ASM1467 is a one lane (Dual-channel) high speed interface redriver for NGFF interface, using to recover the high speed signal degradation and optimize the signal performance over a variety physical mediums, supporting training signaling and input signal detection and level squelch with link power management. ASM1467 is also implemented with ASMedia Python Technology for the signal performance optimization automatically, and also support configurable Emphasis by strapping pin.

One lane (Dual Channel) High speed interface redriver
Two differential signal pairs
100 ohm differential CML IOs
Implement ASMedia patented Python technology
Pin configurable for Output Emphasis Control
Input signal automatic detection and level squelch for each channel
PCI Express or SATA mode selection by strapping pin17 ~ MOSEL
PCI Express Base Revision 2.0 Compatible
Link Power Management Support
Serier ATA Rev3.0 Comaptible
SATA PHY 1i/1m/2i/2m/3i capable
Out-Of-Band (OOB) Signaling Support
Three ways for Signal Performance Optimization
Python mode: recover the signal automatically
Manual mode: fine tune singal performance through strapping pins
SMbus mode: enhance signal performance via programming internal registers
Refer to the Top marking section to identify the parts of Python or Manual mode
No matter Python or Manual, the system could program internal register via SMbus
Low power operation design
Single 3.3V power supply

Tags de ASM1467-KIT10: ASM1467-KIT10, ASM1467, ASMEDIA

ASM1467-KIT10 CI ASMEDIA REDRIVER NGFF INTERFACE - Kit 10 und 4X4 MM2 QFN 20L

Condição de ASM1467-KIT10:
Novo em embalagem comercial

Garantia de ASM1467-KIT10:
3 meses direto com a Net Computadores

One lane (Dual Channel) High speed interface redriver
Two differential signal pairs
100 ohm differential CML IOs
Implement ASMedia patented Python technology
Pin configurable for Output Emphasis Control
Input signal automatic detection and level squelch for each channel
PCI Express or SATA mode selection by strapping pin17 ~ MOSEL
PCI Express Base Revision 2.0 Compatible
Link Power Management Support
Serier ATA Rev3.0 Comaptible
SATA PHY 1i/1m/2i/2m/3i capable
Out-Of-Band (OOB) Signaling Support
Three ways for Signal Performance Optimization
Python mode: recover the signal automatically
Manual mode: fine tune singal performance through strapping pins
SMbus mode: enhance signal performance via programming internal registers
Refer to the Top marking section to identify the parts of Python or Manual mode
No matter Python or Manual, the system could program internal register via SMbus
Low power operation design
Single 3.3V power supply
