Fibra Óptica / CONVERSORES DE MÍDIA / MULTIMODO / AT-MC102XL-10

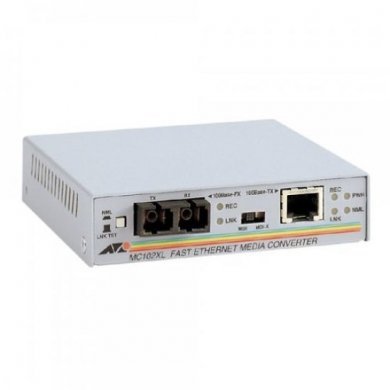

AT-MC102XL-10 Conversor de Mídia Allied Telesis

Name: AT-MC102XL-10 Conversor de Mídia Allied Telesis
Brand: Allied Telesis
SKU: AT-MC102XL-10
Price: 1847.00 BRL
Availability: InStock

100BTX to 100BFX SC MMF (2KM) Interfaces: 1x RJ45, 1x SC / Connectivity Media 100Base-TX / 100Base-

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 1.847,00

à vista no Pix ou Boleto

ou R$ 1.943,59 em 1x no cartão (via site)

ou R$ 2.051,57 no cartão em até 10x sem juros (apenas na loja física)

R$ 1.847,00

à vista no Pix ou Boleto

R$ 1.943,59
em 1x no cartão (via site)

R$ 2.051,57 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem antiestática

Garantia:

6 meses direto com a Net Computadores

NCM:

85176299

R$ 1.847,00

à vista no pix

Comprar

Condição:
Novo em embalagem antiestática

Garantia:
6 meses direto com a Net Computadores

NCM: 85176299

Cotação PJ mais de uma unidade

Indicar AT-MC102XL-10

AT-MC102XL-10 Conversor de Mídia Allied Telesis
100BTX to 100BFX SC MMF (2KM) Interfaces: 1x RJ45, 1x SC / Connectivity Media 100Base-TX / 100Base-

Condição de AT-MC102XL-10: Novo em embalagem antiestática

Garantia de AT-MC102XL-10: 6 meses direto com a Net Computadores

Features

	Interfaces/Ports		1 x RJ-45 1 x SC
	Number of Ports		2
	Product Name		AT-MC100 Media Converter
	Manufacturer Part Number		AT-MC102XL-10
	Manufacturer		Allied Telesis, Inc
	Manufacturer Website Address		www.alliedtelesis.com
	Product Type		Media Converter
	Product Series		AT-MC100
	Connectivity Media		100Base-TX UTP 100Base-FX 1310 nm Multi-mode Fiber
	Network Technology		100Base-TX 100Base-FX
	Weight		10.40 oz
	Dimensions		1 Height x 4.12 Width x 3.75 Depth
	Standard Warranty		Lifetime

Tech Specs

	Interfaces/Ports		1 x RJ-45 1 x SC
	Status Indicators		Front Panel: Power: Indicates power is applied to the converter Link (2): Indicates a valid receive link exists Receive (2): Indicates valid data being received by converter Normal/Test: Fiber test or normal operation
	Number of Ports		2
	Altitude		0 ft to 10000 ft Operating
	Humidity		5 to 95% Operating
	Temperature		32F (0C) to 104F (40C) Operating
	Manufacturer Website Address		www.alliedtelesis.com
	Product Series		AT-MC100
	Manufacturer		Allied Telesis, Inc
	Product Type		Media Converter
	Brand Name		Allied Telesis
	Manufacturer Part Number		AT-MC102XL-10
	Product Name		AT-MC100 Media Converter
	Distance Support		1.24 Mile
	Connectivity		UTP Fiber
	Connectivity Media		100Base-TX UTP 100Base-FX 1310 nm Multi-mode Fiber
	Additional Information		Half and Full Duplex operation Transparent to 802.1Q packets Fits the AT-MCR12 rackmount chassis MDI/MDIX MissingLink Link Test External Power Supply: 100-240vAC, 50/60Hz /- 3% PACKET TRANSMISSION CHARACTERISTICS: Round Trip Delay: 0.4s Maximum Bit Error Rate (BER): < 10 -12 TWISTED PAIR INTERFACE: UTP Differential Output Voltage: - Typical: 980mv - Min: 950mv - Max: 1050mv Overshoot Voltage: - Typical: 4% - Max: 5% Single Amplitude Symmetry: - Typical: 1.0062 - Min: 0.98 - Max: 1.02 Rise and Fall Time: - Rise: - Typical: 4.6ns - Min: 3.0ns - Max: 5.0ns - Fall: - Typical: 4.2ns - Min: 3.0ns - Max: 5.0ns Rise and Fall Time Symmetry: - Typical: 0.4ns - Max: 0.5ns Port Type (Connector): 100FX MMF: - Launch Power (dBm): - Max: -14.0 - Avg: -16.8 - Min: -19.0 - Receive Power (dBm): - Min. Sensitivity: -31.8 - Typical Sensitivity: -34.5 - Saturation: -14.0
	Certifications e Standards		IEEE 802.3U-LAN EMC: FCC Class A Safety: UL-Cul CSA/CSA NRTL TUV CE
	Network Technology		100Base-TX 100Base-FX
	Shipping Dimensions		3 Height x 5.80 Width x 11.25 Depth
	Color		White
	Shipping Weight		2.42 lb
	Dimensions		1 Height x 4.12 Width x 3.75 Depth
	Weight		10.40 oz
	Input Voltage		12 V DC 5%
	Power Consumption		6 W Operating
	Protocols		Fast Ethernet

Tags de AT-MC102XL-10: Allied Telesis, AT-MC102XL-10, 100Base-TX UTP, AT-MC102XL, Conversor de Midia, Conversor Midia, AT-MC102XL10, ATMC102XL10, 990-000445-10, Allied Telesis

AT-MC102XL-10 Conversor de Mídia Allied Telesis 100BTX to 100BFX SC MMF (2KM) Interfaces: 1x RJ45, 1x SC / Connectivity Media 100Base-TX / 100Base-

Condição de AT-MC102XL-10:
Novo em embalagem antiestática

Garantia de AT-MC102XL-10:
6 meses direto com a Net Computadores

Features

	Interfaces/Ports		1 x RJ-45 1 x SC
	Number of Ports		2
	Product Name		AT-MC100 Media Converter
	Manufacturer Part Number		AT-MC102XL-10
	Manufacturer		Allied Telesis, Inc
	Manufacturer Website Address		www.alliedtelesis.com
	Product Type		Media Converter
	Product Series		AT-MC100
	Connectivity Media		100Base-TX UTP 100Base-FX 1310 nm Multi-mode Fiber
	Network Technology		100Base-TX 100Base-FX
	Weight		10.40 oz
	Dimensions		1 Height x 4.12 Width x 3.75 Depth
	Standard Warranty		Lifetime

Tech Specs

	Interfaces/Ports		1 x RJ-45 1 x SC
	Status Indicators		Front Panel: Power: Indicates power is applied to the converter Link (2): Indicates a valid receive link exists Receive (2): Indicates valid data being received by converter Normal/Test: Fiber test or normal operation
	Number of Ports		2
	Altitude		0 ft to 10000 ft Operating
	Humidity		5 to 95% Operating
	Temperature		32F (0C) to 104F (40C) Operating
	Manufacturer Website Address		www.alliedtelesis.com
	Product Series		AT-MC100
	Manufacturer		Allied Telesis, Inc
	Product Type		Media Converter
	Brand Name		Allied Telesis
	Manufacturer Part Number		AT-MC102XL-10
	Product Name		AT-MC100 Media Converter
	Distance Support		1.24 Mile
	Connectivity		UTP Fiber
	Connectivity Media		100Base-TX UTP 100Base-FX 1310 nm Multi-mode Fiber
	Additional Information		Half and Full Duplex operation Transparent to 802.1Q packets Fits the AT-MCR12 rackmount chassis MDI/MDIX MissingLink Link Test External Power Supply: 100-240vAC, 50/60Hz /- 3% PACKET TRANSMISSION CHARACTERISTICS: Round Trip Delay: 0.4s Maximum Bit Error Rate (BER): < 10 -12 TWISTED PAIR INTERFACE: UTP Differential Output Voltage: - Typical: 980mv - Min: 950mv - Max: 1050mv Overshoot Voltage: - Typical: 4% - Max: 5% Single Amplitude Symmetry: - Typical: 1.0062 - Min: 0.98 - Max: 1.02 Rise and Fall Time: - Rise: - Typical: 4.6ns - Min: 3.0ns - Max: 5.0ns - Fall: - Typical: 4.2ns - Min: 3.0ns - Max: 5.0ns Rise and Fall Time Symmetry: - Typical: 0.4ns - Max: 0.5ns Port Type (Connector): 100FX MMF: - Launch Power (dBm): - Max: -14.0 - Avg: -16.8 - Min: -19.0 - Receive Power (dBm): - Min. Sensitivity: -31.8 - Typical Sensitivity: -34.5 - Saturation: -14.0
	Certifications e Standards		IEEE 802.3U-LAN EMC: FCC Class A Safety: UL-Cul CSA/CSA NRTL TUV CE
	Network Technology		100Base-TX 100Base-FX
	Shipping Dimensions		3 Height x 5.80 Width x 11.25 Depth
	Color		White
	Shipping Weight		2.42 lb
	Dimensions		1 Height x 4.12 Width x 3.75 Depth
	Weight		10.40 oz
	Input Voltage		12 V DC 5%
	Power Consumption		6 W Operating
	Protocols		Fast Ethernet
