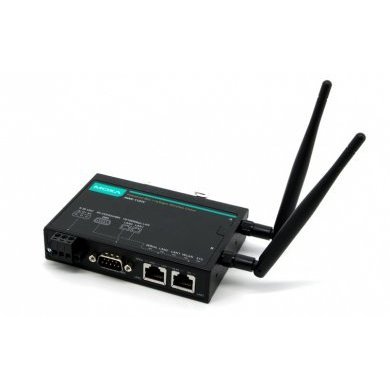

AWK-1137C-US Moxa Industrial 802.11a/b/g/n Wireless Client 2 xRJ45 10/100/1000BTX, 1 x RS232/422/485 DB9M, Duas Antenas
Condição de AWK-1137C-US:
Novo em embalagem comercial
Garantia de AWK-1137C-US:
12 meses direto com a Net Computadores
Moxa AWK-1137C Series Industrial 802.11a/b/g/n Wireless Client w/(2) RJ45 10/100/1000BTX, (1) RS232/422/485 DB9M, 9-30 VDC redundant dual DC inputs (terminal blocks) e (2) dual band omni-directional antennas (US band)
WLAN Interface
Standards IEEE 802.11a/b/g/n for Wireless LAN
IEEE 802.11i for Wireless Security
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
Spread Spectrum and Modulation (typical) - DSSS with DBPSK, DQPSK, CCK
- OFDM with BPSK, QPSK, 16QAM, 64QAM
- 802.11b: CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps,
DBPSK @ 1 Mbps
- 802.11a/g: 64QAM @ 54/48 Mbps, 16QAM @ 36/24 Mbps,
QPSK @ 18/12 Mbps, BPSK @ 9/6 Mbps
- 802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps (multiple rates
supported)
Operating Channels (central frequency) US:
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.745 to 5.825 GHz (5 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
EU:
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
JP:
2.412 to 2.484 GHz (14 channels, DSSS)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
Security - SSID broadcast enable/disable
- Firewall for MAC/IP/Protocol/Port-based filtering
- 64-bit and 128-bit WEP encryption, WPA/WPA2-Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP, and AES)
Transmission Rates 802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 to 300 Mbps (multiple rates supported)
TX Transmit Power 802.11b:
Typ. 261.5 dBm @ 1 Mbps, Typ. 261.5 dBm @ 2 Mbps
Typ. 261.5 dBm @ 5.5 Mbps, Typ. 251.5 dBm @ 11 Mbps
802.11g:
Typ. 231.5 dBm @ 6 to 24 Mbps, Typ. 221.5 dBm @ 36 Mbps
Typ. 201.5 dBm @ 48 Mbps, Typ. 191.5 dBm @ 54 Mbps
802.11n (2.4 GHz):
Typ. 231.5 dBm @ MCS0/8 20 MHz
Typ. 171.5 dBm @ MCS7/15 20 MHz
Typ. 231.5 dBm @ MCS0/8 40 MHz
Typ. 171.5 dBm @ MCS7/15 40 MHz
802.11a:
Typ. 231.5 dBm @ 6 to 24 Mbps
Typ. 211.5 dBm @ 36 Mbps
Typ. 201.5 dBm @ 48 Mbps,
Typ. 181.5 dBm @ 54 Mbps
802.11n (5 GHz):
Typ. 231.5 dBm @ MCS0/8 20 MHz
Typ. 181.5 dBm @ MCS7/15 20 MHz
Typ. 231.5 dBm @ MCS0/8 40 MHz,
Typ. 181.5 dBm @ MCS7/15 40 MHz
Note Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated below:
Table EnviarEnviar
RX Receive Sensitivity 802.11b:
-89 dBm @ 1 Mbps, -89 dBm @ 2 Mbps
-89 dBm @ 5.5 Mbps, -88 dBm @ 11 Mbps
802.11g:
-88 dBm @ 6 Mbps, -88 dBm @ 9 Mbps
-88 dBm @ 12 Mbps, -87 dBm @ 18 Mbps
-84 dBm @ 24 Mbps, -81 dBm @ 36 Mbps
-77 dBm @ 48 Mbps, -75 dBm @ 54 Mbps
802.11n (2.4 GHz):
-70 dBm @ MCS7 20 MHz, -70 dBm @ MCS15 20 MHz
-64 dBm @ MCS7 40 MHz, -65 dBm @ MCS15 40 MHz
802.11a:
-90 dBm @ 6 Mbps, -88 dBm @ 9 Mbps
-87 dBm @ 12 Mbps, -85 dBm @ 18 Mbps
-81 dBm @ 24 Mbps, -78 dBm @ 36 Mbps
-74 dBm @ 48 Mbps, -73 dBm @ 54 Mbps
802.11n (5 GHz):
-69 dBm @ MCS7 20 MHz, -70 dBm @ MCS15 20 MHz
-64 dBm @ MCS7 40 MHz, -66 dBm @ MCS15 40 MHz
- Protocol Support
General Protocols Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, DHCP, VLAN
- Interface
Default Antennas 2 dual-band omni-directional antennas, 2 dBi, RP-SMA (male)
Connector for External Antennas RP-SMA (female)
LAN Ports 2, RJ45, 10/100/1000BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Serial Port 1, RS232/422/485, DB9 male connector
Reset Present
LED Indicators SYS, WLAN, LAN1, LAN2, Serial
- Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
Baudrate 75 bps to 921.6 kbps
Serial Data Log 256 KB
- Serial Signals
RS-232 TxD, RxD, RTS, CTS, DCD, GND
RS-422 Tx , Tx-, Rx , Rx-, GND
RS-485-4w Tx , Tx-, Rx , Rx-, GND
RS-485-2w Data , Data-, GND
- Management
Serial Operation Modes Real COM, RCF2217, TCP Server, TCP Client, UDP
Device Management Wireless Search Utility, MXconfig, SNMP
Network Monitoring MXview
- Physical Characteristics
Housing Metal casing for high EMC-levels; provides IP30 protection
Weight 470 g (1.03 lb)
Dimensions 77.1 x 115.5 x 26 mm (3.035 x 4.55 x 1.024 in)
Installation DIN-rail mounting (standard), wall mounting (with optional kit)
- Environmental Limits
Operating Temperature Standard Models: 0 to 60C (32 to 140F)
Wide Temp. Models: -40 to 75C (-40 to 167F)
Storage Temperature -40 to 85C (-40 to 185F)
Ambient Relative Humidity 5% to 95% (non-condensing)
- Power Requirements
Input Voltage 9 to 30 VDC, redundant dual DC power inputs
Connector 3-pin removable terminal block, 500 V insulation
Power Consumption 11.7 W
Reverse Polarity Protection Present
- Standards and Certifications
Safety UL 60950-1
EMC EN 55032/55024, EN 61000-6-2/6-4
EMI FCC Part 15B
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
Radio FCC ID SLE-1137C, MIC, RED, NCC, KC, RCM, ANATEL, EAC, WPC
Vehicle E-Mark E1
