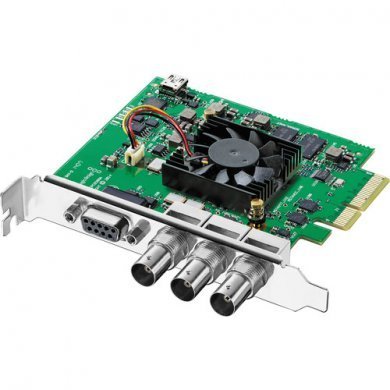

BDLKSDI4K BlackMagic DeckLink SDI 4K Capture & Playback

Name: BDLKSDI4K BlackMagic DeckLink SDI 4K Capture & Playback
Brand: Blackmagic Design
SKU: BDLKSDI4K
Price: 3124.00 BRL
Availability: InStock

Card PCI Express X4

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 3.124,00

à vista no Pix ou Boleto

ou R$ 3.287,82 em 1x no cartão (via site)

ou R$ 3.470,48 no cartão em até 10x sem juros (apenas na loja física)

R$ 3.124,00

à vista no Pix ou Boleto

R$ 3.287,82
em 1x no cartão (via site)

R$ 3.470,48 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

84718000

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84718000

Cotação PJ mais de uma unidade

Indicar BDLKSDI4K

BDLKSDI4K BlackMagic DeckLink SDI 4K Capture & Playback
Card PCI Express X4

Condição de BDLKSDI4K: Novo em embalagem comercial

Garantia de BDLKSDI4K: 12 meses direto com a Net Computadores

Key Features

SD/HD/3G/6G-SDI Input/Output
PCIe Interface
UHD / DCI 4K 4:2:2 by Single-Link 6G-SDI
1080p 4:4:4 by Single-Link 3G-SDI

The Decklink SDI 4K Capture e Playback Card from Blackmagic Design features a single multi-rate SDI input and multi-rate SDI output. These multi-rate connections accept single-link SD, HD, 3G, and 6G-SDI signals, providing support for resolutions from SD to Ultra HD 4K (3840x2160) and DCI 4K (4096x2160). Additionally, the Decklink SDI 4K includes RS-422
Connections SDI Video Inputs
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4.
SDI Video Outputs
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4.
SDI Audio Inputs
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
SDI Audio Outputs
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
Sync Input
Tri-Sync or Black Burst.
Device Control
Sony? compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
Computer Interface
PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots.

Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR

Maiores detalhes de BDLKSDI4K no site do fabricante:

Tags de BDLKSDI4K: BDLKSDI4K, BlackMagic Decklink BDLKSDI4K, Placa BDLKSDI4K, Placa Black Magic, Placa Black Magic Design, DeckLink SDI 4K, Blackmagic Design, Blackmagic Design

BDLKSDI4K BlackMagic DeckLink SDI 4K Capture & Playback Card PCI Express X4

Condição de BDLKSDI4K:
Novo em embalagem comercial

Garantia de BDLKSDI4K:
12 meses direto com a Net Computadores

Key Features

SD/HD/3G/6G-SDI Input/Output
PCIe Interface
UHD / DCI 4K 4:2:2 by Single-Link 6G-SDI
1080p 4:4:4 by Single-Link 3G-SDI

The Decklink SDI 4K Capture e Playback Card from Blackmagic Design features a single multi-rate SDI input and multi-rate SDI output. These multi-rate connections accept single-link SD, HD, 3G, and 6G-SDI signals, providing support for resolutions from SD to Ultra HD 4K (3840x2160) and DCI 4K (4096x2160). Additionally, the Decklink SDI 4K includes RS-422
Connections SDI Video Inputs
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4.
SDI Video Outputs
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4.
SDI Audio Inputs
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
SDI Audio Outputs
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
Sync Input
Tri-Sync or Black Burst.
Device Control
Sony- compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
Computer Interface
PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots.

Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR

Maiores detalhes de BDLKSDI4K no site do fabricante:

Tags de BDLKSDI4K: BDLKSDI4K, BlackMagic Decklink BDLKSDI4K, Placa BDLKSDI4K, Placa Black Magic, Placa Black Magic Design, DeckLink SDI 4K, Blackmagic Design, Blackmagic Design
