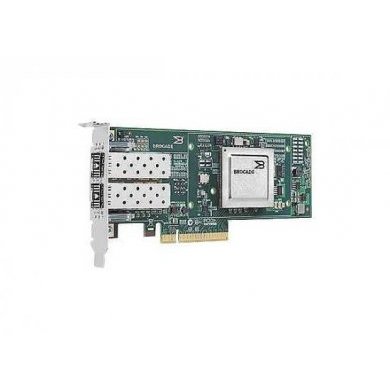

BR-1020-1010-IP Placa de Rede Brocade 1020 CNA Dual Port

BR-1020-1010-IP Placa de Rede Brocade 1020 CNA Dual Port Fibre Channel, PCI Express 2.0 x8

Condição de BR-1020-1010-IP:
Novo em embalagem comercial

Garantia  de  BR-1020-1010-IP:
12 meses direto com a Net Computadores

The Brocade 1020 (dual ports) 10 Gbps Fiber Channel over Ethernet (FCoE) to PCIe CNAs provide industry-leading server I/O consolidation. By transporting both storage and Ethernet networking traffic across the same physical connection, the CNAs reduce ownership costs and improve ROI.

Unmatched hardware capabilities, unique software configurability, and unified management all contribute to exceptional flexibility in this class of server connectivity platform.


Environmental Parameters
Humidity Range Operating: 5 - 93%
Max Operating Temperature: 122 °F
Min Operating Temperature: 32 °F
Expansion Slots
Type: SFP+
Header
Brand: Brocade
Compatibility: PC , Unix
Manufacturer: BROCADE
Model: 1020 CNA
Packaged Quantity: 1
Product Line: Brocade
Interface Provided
Type: None
Interface Required
Type: None
Miscellaneous
Compliant Standards: BSMI , BSMI CNS 13438 , C-Tick , CISPR 22 Class B , EN 60950-1 , EN55022 Class B , EN55024 , FCC Class B certified , GOST , ICES-003 Class B , IEC 60950-1 , JEIDA , MIC Class B , TUV , UL 60950-1 , VCCI Class B ITE
Networking
Bus Voltage: 3.3 V
Compliant Standards: IEEE 802.1p , IEEE 802.1Q , IEEE 802.3ad (LACP) , IEEE 802.3ae , IEEE 802.3x
Connectivity Technology: Wired
Features: Data Center Bridging Exchange (DCBX) support , Enhanced transmission selection , Full duplex mode , IPv6 support , Jumbo Frames support , Priority-based flow control , VLAN support
Fibre Channel: FC-BB-5 , FC-DA , FC-FS-2 , FC-GS , FC-LS , FC-SP , FCP , FCP-2 , FCP-3
Form Factor: Plug-in card
Interface Type: PCI Express 2.0 x8
Low Profile: Low profile
Ports Qty: 2
Type: Network adapter
Slot Provided
Free Qty: 2
Total Qty: 2
Slot Required
Total Qty: 1
Type: PCI Express 2.0 x8
Software
Type: Brocade Host Connectivity Manager
