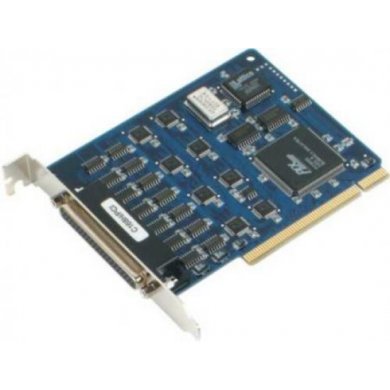

C168H/PCI Placa Multiserial Moxa 8 Portas RS-232

Name: C168H/PCI Placa Multiserial Moxa 8 Portas RS-232
Brand: MOXA
SKU: C168H/PCI
Price: 2192.00 BRL
Availability: InStock

Async Board, PCI 32-bit ISA bus, 921.6 Kbps (Não acompanha cabos, ver opcionais na lista)

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 2.192,00

à vista no Pix ou Boleto

ou R$ 2.306,98 em 1x no cartão (via site)

ou R$ 2.435,15 no cartão em até 10x sem juros (apenas na loja física)

R$ 2.192,00

à vista no Pix ou Boleto

R$ 2.306,98
em 1x no cartão (via site)

R$ 2.435,15 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

84733049

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

Cotação PJ mais de uma unidade

Indicar C168H/PCI

C168H/PCI Placa Multiserial Moxa 8 Portas RS-232
Async Board, PCI 32-bit ISA bus, 921.6 Kbps (Não acompanha cabos, ver opcionais na lista)

Condição de C168H/PCI: Novo em embalagem comercial

Garantia de C168H/PCI: 12 meses direto com a Net Computadores

Introduction

The C168H/PCI multiport serial board is designed for people looking for an easy-to-use 8-port serial board. Plug the C168H/PCI board into the appropriate PCI slot, and all configuration tasks will be done automatically, eliminating the need to adjust I/O addresses and IRQ hardware switches and jumpers. To improve reliability, surge protection (25 KV) and optical isolation (500V) are available as options.
The C168H/PCI board allows you to install additional RS-232 serial communication ports on your PC by providing 8 serial ports per board for connecting all types of serial devices, including terminals, modems, printers, data acquistion equipment, and more. And C168H/PCI’s versatile OS driver support truly fulfills the needs of our customers’ varied applications. C168H/PCI offers a reliable and high performance solution for serial multiport communications.
Benefits

Easy to install
Compact board size—ideal for PC-based embedded systems
Low cost

Applications

PC-based POS registers
PC-based postal machines
PC-based Kiosks
PC-based lottery machines
Other serial device control applications

Features

8-port RS-232 high speed PCI communication board

Compact PCI board size

Versatile OS driver support

Various connection options

Data transmission speed up to 921.6 Kbps

On-chip hardware flow control

Convenient connection cables

Specifications

Hardware

I/O Controller

16C550C or compatible x 8

Connector Type

Female DB62 (on the board)

Interface

Bus

32-bit, Ver. 2.1 PCI

Serial

RS-232, RS-422/485

No. of Ports

Performance

Speed

50 bps to 921.6 Kbps

Max. No. of Ports

32 (4 boards)

Configuration

Parity

None, even, odd, space, mark

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

IRQ

Assigned by BIOS

I/O Address

Assigned by BIOS

Operating Systems

C168H/PCI

Windows 2000/XP/2003, Windows NT, Windows 95/98/ME, Windows XP Embedded, DOS, FreeBSD 4.x, Linux 2.2.x (Alpha), Linux Base, SCO Open Server 5, SCO UnixWare 2.1.x, SCO UnixWare 7

Power and Environment

Power Requirements

260 mA max. (+5V), 100 mA max. (+12V), 60 mA max. (-12V)

Operating Temperature

0 to 55°C

Operating Humidity

5 to 95% RH

Storage Temperature

-20 to 85°C

Dimensions

123 x 100 mm (W x D)

Optical Isolation

500V (when using Optional Connector Opt8F)

Regulatory Approvals

FCC, CE

Ordering Information

C168H/PCI

PCI bus, 8-port smart serial board

All items include

MOXA Software CD-ROM: contains drivers and
MOXA PComm Lite serial comm developing tool
User’s Manual

Optional Accesories

Opt8-M9

8-port, male DB9, RS-232 Connection Box

Opt8-RJ45

8-port, 8-pin RJ45, RS-232 Connection Box

Opt8A

8-port, female DB25, RS-232 Connection Box

Opt8S

8-port, female DB25, RS-232 Connection Box with surge protection

Opt8B

8-port, male DB25, RS-232 Connection Box

Opt8F

8-port, female DB25, RS-422 Connection Box with Optical Isolation

Opt8Z

8-Port, female DB25, RS-422 Connection Box

Opt8K

8-Port, female DB25, RS-422/485 Connection Box

CBL-M62M25x8-100 (Opt8C)

8-port, male DB25, RS-232 Connection Cable

Maiores detalhes de C168H/PCI no site do fabricante:
