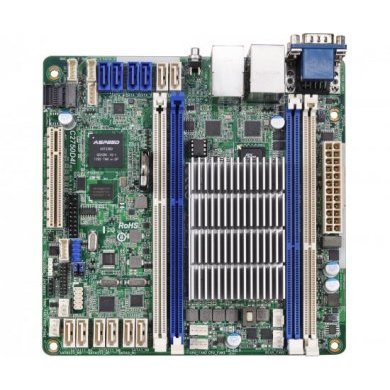

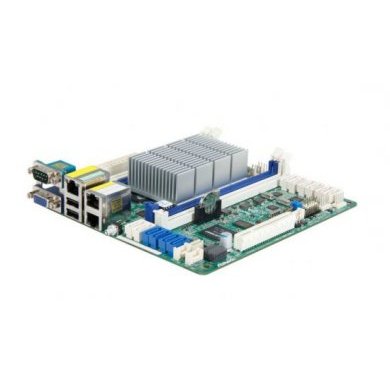

C2750D4I Placa-mãe ASRock Mini ITX Server FCBGA1283 DDR3 1600/1333
Condição de C2750D4I:
Novo em embalagem comercial
Garantia de C2750D4I:
12 meses direto com a Net Computadores
- Intel Avoton C2750 Octa-Core Processor
- DDR3 1600/1333 Dual-channel Max. 64GB
- 2 SATA3 6.0Gbps, 4 SATA2 3.0Gbps by C2750
- 4 x SATA3 6.0 Gb/s by Marvell SE9230, 2 x SATA3 6.0 Gb/s by Marvell SE9172
- Dual Intel i210 Gigabit LAN ports (with Teaming )
- 3 x USB 2.0 ports (2 rear ports 1 via headers or 1 rear ports 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper)
- 1 x PCI-E x8 slot

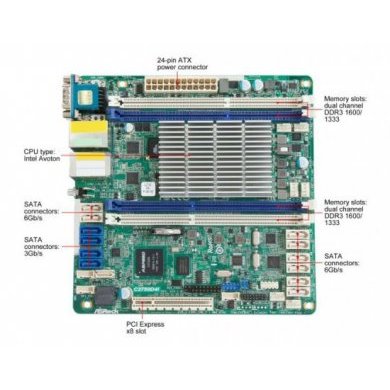

Specifications
MB Physical Status
Form Factor - Mini ITX
Dimensions - 6.7 x 6.7 (17.02 cm x17.02 cm)
Processor System
CPU - Intel® Octa Core Avoton C2750 Processor
Socket - FCBGA1283 SOC
System Memory
Capacity - 4 x 240-pin DDR3 DIMM slots
- Support up to 64GB DDR3 ECC and UDIMM
Type - Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC and UDIMM
Voltage - 1.5V, 1.35V
Expansion Slot
PCIe 2.0 x 8 - 1 slot (x8 mode)
Storage
SATA Controller - Intel® C2750 : 2 x SATA3 6.0 Gb/s, 4 x SATA2 3.0 Gb/s
Additional Storage Controller - Marvell SE9172: 2 x SATA3 6.0 Gb/s
- Marvell SE9230: 4 x SATA3 6.0 Gb/s
Ethernet
Interface - Gigabit LAN 10/100/1000 Mb/s
LAN Controller - 2 x Intel® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming
- Supports PXE
Management
BMC Controller - ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support
IPMI Dedicated LAN - 1 x Realtek RTL8211E for dedicated management LAN
Features - Watch Dog
- NMI
Graphics
Controller - ASPEED AST2300
VRAM - DDR3 16MB
Output - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

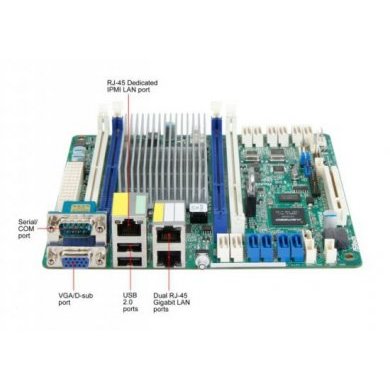

Rear Panel I/O
VGA Port - D-sub x 1
USB 2.0 Port - 2
Lan Port - 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port - 1 (COM1)
UID Button/UID LED - 1
Internal Connector
Auxiliary Panel Header - 1 (include chassis intrusion, location button e LED, front LAN LED)
IPMB Header - 1
Fan Header - 6 x 4-pin
ATX Power - 1 (24-pin)
USB 2.0 Header - 1 (support 1 via headers or 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper)
Front Panel - 1
System BIOS
BIOS Type - 64Mb AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash
Hardware Monitor
Temperature - CPU Temperature Sensing
- Motherboard Temperature Sensing
Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage - Voltage Monitoring: 12V, 5V, 3.3V, CPU Vcore, DRAM, 1.1V, 1.0V, BAT, 3VSB, 5VSB
Support OS
OS Microsoft Windows
- Server 2008 R2 (x64)
- Server 2012 (x64)
Linux
- RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
- CentOS 5.5 / 6.4 (x32 and x64)
- SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
- FreeBSD 9.1 (x32/x64)
- Fedora core 18 (x64)
- Ubuntu 12.04/12.10 (x64)
Virtual
- VMWare ESXi 5.1 (Marvell SE9230 and Marvell SE9172 has no driver can support VMWare)
Environment
Temperature - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
* Install a CPU Fan when the airflow through the heatsink is below 2CFM.
Tags de C2750D4I: Avoton C2750, FCBGA1283, Motherboard, Placa mae, Placa-mae, Mini-ITX, AS Rock, ASRock
