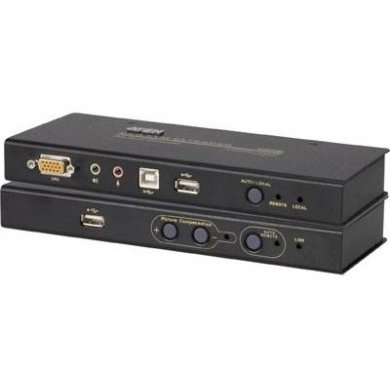

CE-800B ATEN USB KVM Extender VGA/Audio Cat 5

The Aten CE800B is an USB KVM Extender. The CE800B USB KVM Extender with on-board audio allows access to a computer system from a remote console (USB keyboard and mouse, monitor, stereo speakers, and microphone). It is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place - away from dust, dirt, and harsh environmental influences. The CE800B has built-in USB ports that support USB Mass Storage compliant flash drives. The addition of a Type B USB port on the local unit means that the flash drive facility is fully supported in both PC-only and KVM switch installation.





Cat 5e cable to connect the Local and Remote Units - up to 250 m (825 ft) apart

Dual console operation - control your system(s) from both the local and remote consoles

Pushbutton selection of the active console

Built-in USB port on both units supports external USB Mass Storage compliant flash drives for easy file sharing

Special security feature requires login when mounting an external USB storage device on the remote unit

Supports VGA, SVGA, and multisync monitors - local monitor supports DDC; DDC2; DDC2B

High resolution video - up to 1600 x 1200 @ 60 Hz

Built-in 8KV/15KV ESD protection and 2KV surge protection

Adjustable gain control - manually adjusts signal strength to compensate for distance

Supports stereo speakers and stereo microphone

Supports Microsoft Intellimouse and the scrolling wheel on most mice

Upgradable firmware

Built-in ASIC for greater reliability and compatibility





1x CE800BL USB KVM Extender (Local Unit)

1x CE800BR USB KVM Extender (Remote Unit)

1x Custom KVM Cable (1.8 m)

2x Power Adapters

1x Firmware Upgrade Cable

1x USB Cable (1.8 m)

2x Grounding Wires

1x Rack Mount Kit

1x User Manual

1x Quick Start Guide

1x Grounding Information Card
