Cotações
e dúvidas
e dúvidas
R$ 89,00
à vista no Pix ou Boleto
ou R$ 93,38 em 1x no cartão (via site)
ou R$ 98,56 no cartão em até 10x sem juros (apenas na loja física)
R$ 89,00
à vista no Pix ou Boleto
R$ 93,38
em 1x no cartão (via site)
R$ 98,56 no cartão
em até 10x sem juros
(apenas na loja física)
R$ 89,00
à vista no pix
Condição:
Novo em embalagem comercial
Garantia:
12 meses direto com a Net Computadores
NCM: 85369090
Condição de CJ6X88TGWH: Novo em embalagem comercial
Garantia de CJ6X88TGWH: 12 meses direto com a Net Computadores
| Note | N/A |
| Product Type | Jack Module |
| Performance Level | Category 6A |
| Connector Type | Jack Module |
| Termination Style | TG Style |
| Body Material | ABS |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com® |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net® |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | White |
| Standards Met | Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Complaint |
| RoHS Compliant | Yes |
| Overall Depth (In.) | 1.5 |
| Overall Depth (mm) | 38.1 |
| Overall Height (In.) | 0.71 |
| Overall Height (mm) | 18 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.63 |
| Overall Width (mm) | 16 |
Tags de CJ6X88TGWH: CJ6X88TGWH, CJ6X88TGBL, Mini-Com UTP RJ45 Cat 6A TG Jack Module Black, conector rj45, rj45 femea, rj 45 cat6a, conector rj45 cat6a, conector rj45 panduit, cj688, jack panduit, keystone panduit, cbx, cbxj, cbx1w-a, keystone cat6a 10g, keystone 10g cat6a, rj45 cat6a 10g, rj45 10g, rj45 femea cat6a, rj45 femea 10g, 10gigabit, 10 gigabit, cat6a, cat 6a, cat.6a, cat6 a, keystone, key stone, rj45 femea, keystone panduit branco, rj45 panduit branco, rj45 femea panduit branco, keystone branco panduit, rj45 branco panduit, rj45 femea branco panduit, keystone cat6a branco, rj45 femea cat6a branco, rj45 cat6a branco, CJ6X88TGBL, Panduit

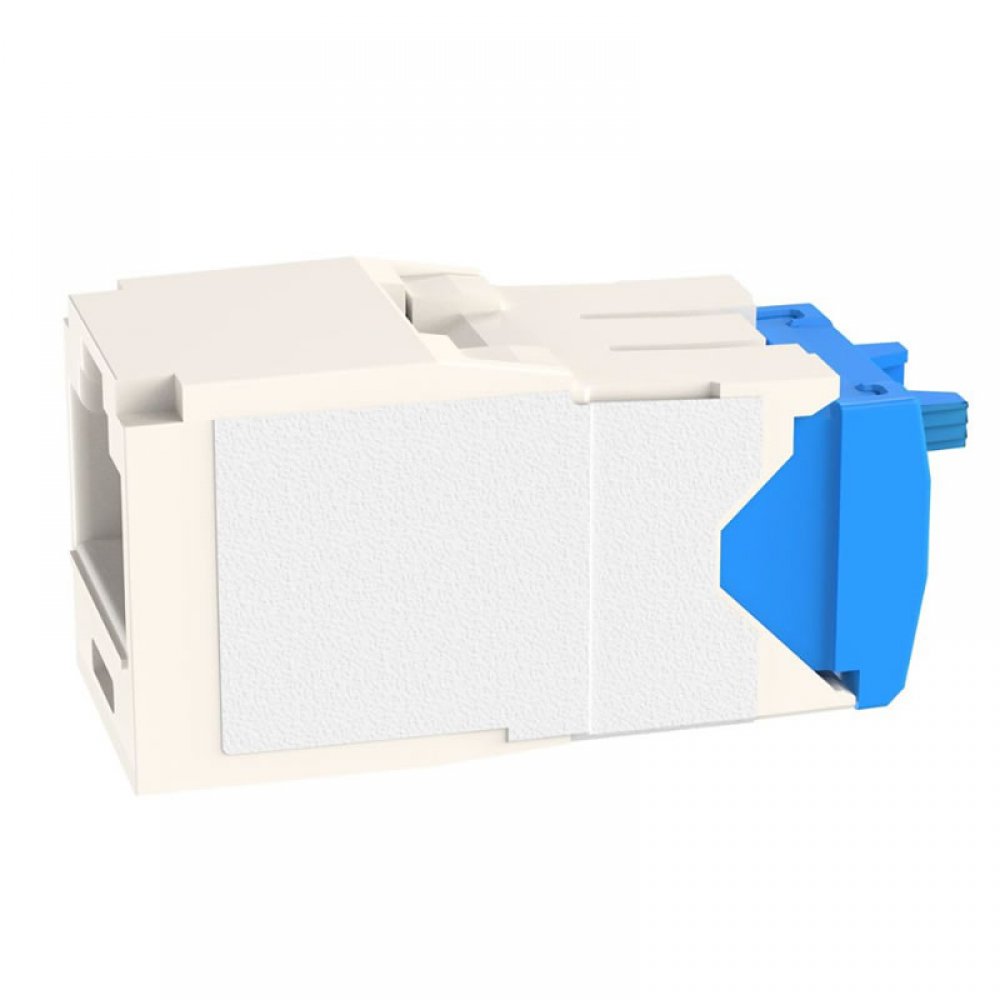

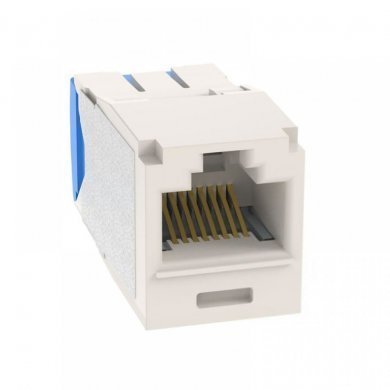

CJ6X88TGWH Panduit Conector RJ45 Fêmea CAT6A UTP TG Branco
Condição de CJ6X88TGWH:
Novo em embalagem comercial
Garantia de CJ6X88TGWH:
12 meses direto com a Net Computadores
| Note | N/A |
| Product Type | Jack Module |
| Performance Level | Category 6A |
| Connector Type | Jack Module |
| Termination Style | TG Style |
| Body Material | ABS |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com® |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net® |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | White |
| Standards Met | Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Complaint |
| RoHS Compliant | Yes |
| Overall Depth (In.) | 1.5 |
| Overall Depth (mm) | 38.1 |
| Overall Height (In.) | 0.71 |
| Overall Height (mm) | 18 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.63 |
| Overall Width (mm) | 16 |
Tags de CJ6X88TGWH: CJ6X88TGWH, CJ6X88TGBL, Mini-Com UTP RJ45 Cat 6A TG Jack Module Black, conector rj45, rj45 femea, rj 45 cat6a, conector rj45 cat6a, conector rj45 panduit, cj688, jack panduit, keystone panduit, cbx, cbxj, cbx1w-a, keystone cat6a 10g, keystone 10g cat6a, rj45 cat6a 10g, rj45 10g, rj45 femea cat6a, rj45 femea 10g, 10gigabit, 10 gigabit, cat6a, cat 6a, cat.6a, cat6 a, keystone, key stone, rj45 femea, keystone panduit branco, rj45 panduit branco, rj45 femea panduit branco, keystone branco panduit, rj45 branco panduit, rj45 femea branco panduit, keystone cat6a branco, rj45 femea cat6a branco, rj45 cat6a branco, CJ6X88TGBL, Panduit
