PCI Express x1 compliant
921.6 kbps maximum baudrate for super fast data transmission
128-byte FIFO and on-chip H/W, S/W flow control
Low profile form factor fits small-sized PCs
Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
15 kV ESD protection on the board

• Hardware
Comm. Controller	16C550C compatible
Bus	PCI Express x1
Connector	DB44 female
• Serial Interface
Number of Ports	4
Serial Standards	RS-232/422/485
Max. No. of Boards per PC	4
• Serial Line Protection
ESD Protection	15 kV on the board
Electrical Isolation	2 kV (CP-114EL-I only)
• Performance
Baudrate	50 bps to 921.6 kbps
• Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF
• Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w	TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w	Data+(B), Data-(A), GND
• Operating Systems
Windows Real COM Drivers	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS
Fixed TTY Drivers	QNX 6, SCO OpenServer, UnixWare 7, Solaris 10
Linux Real TTY Drivers	Linux 2.4.x, 2.6.x, 3.x
Note	Please refer to Moxa’s website for the latest driver support information.
• Physical Characteristics
Dimensions	CP-114EL: 67.21 x 103 mm (2.69 x 4.06 in) CP-114EL-I: 67.21 x 135 mm (2.69 x 5.31 in)
• Environmental Limits
Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature	-20 to 85°C (-4 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	Up to 2000 m
Note	Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
• Standards and Certifications
EMC	CE, FCC
EMI	EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B
EMS	EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS)
Green Product	RoHS, CRoHS, WEEE
• MTBF (mean time between failures)
Time	684,289 hrs
Database	Telcordia (Bellcore), GB
• Power Requirements
Power Consumption	CP-114EL: 835 mA @ 3.3 V CP-114EL-I: 1170 mA @ 3.3 V

Maiores detalhes de CP-114EL-I no site do fabricante:
http://www.moxa.com/product/CP-114EL_EL-I.htm

Tags de CP-114EL-I: Isolamento Óptico, RS232, RS422, RS485, RS-422, RS-485, RS-232, MOXA

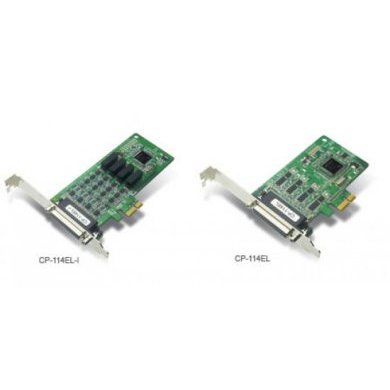

CP-114EL-I Placa Moxa Multiserial PCI-E x1 4 Portas RS232 RS422 RS485 com Isolamento Óptico - Espelho Alto e Baixo

Condição de CP-114EL-I:
Novo em embalagem comercial

Garantia de CP-114EL-I:
12 meses direto com a Net Computadores
