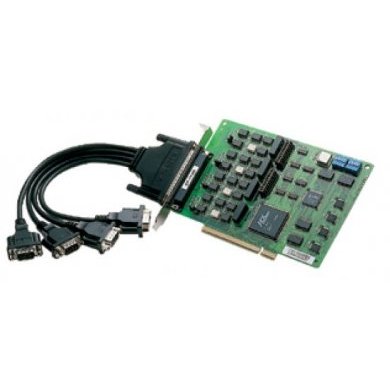

CP-114IS-DB9M Placa Multiserial Moxa 4-Port RS-232, RS-422/485 board, PCI bus,

Name: CP-114IS-DB9M Placa Multiserial Moxa 4-Port RS-232, RS-422/485 board, PCI bus,
Brand: MOXA
SKU: CP-114IS-DB9M
Price: 2641.00 BRL
Availability: InStock

Interface 32-bit PCI, Ver. 2.1, No. of Ports 4, Data transmission speed up to 921.6 Kbps

clique para ampliar

*As imagens podem ser ilustrativas

avise-me quando disponível

R$ 2.641,00

à vista no Pix ou Boleto

ou R$ 2.779,12 em 1x no cartão (via site)

ou R$ 2.933,51 no cartão em até 10x sem juros (apenas na loja física)

R$ 2.641,00

à vista no Pix ou Boleto

R$ 2.779,12
em 1x no cartão (via site)

R$ 2.933,51 no cartão
em até 10x sem juros
(apenas na loja física)

Condição:

Novo em embalagem comercial

Garantia:

12 meses direto com a Net Computadores

NCM:

84733049

Condição:
Novo em embalagem comercial

Garantia:
12 meses direto com a Net Computadores

NCM: 84733049

Cotação PJ mais de uma unidade

Indicar CP-114IS-DB9M

CP-114IS-DB9M Placa Multiserial Moxa 4-Port RS-232, RS-422/485 board, PCI bus,
Interface 32-bit PCI, Ver. 2.1, No. of Ports 4, Data transmission speed up to 921.6 Kbps

Condição de CP-114IS-DB9M: Novo em embalagem comercial

Garantia de CP-114IS-DB9M: 12 meses direto com a Net Computadores

Features

4-port high speed communication board (2 ports for RS-422/485, 2 ports for either RS-232 or RS-422/485)
RS-485 ADDC™ data control or by RTS
Various connection options
Data transmission speed up to 921.6 Kbps
On-chip hardware flow control
Surge Protection and Optical Isolation available as options
Built-in termination resistors

Specifications

Hardware

I/O Controller

16C550C or compatible x 4

Connector Type

Female DB37 (on the board)

Interface

Bus

32-bit PCI, Ver. 2.1

Serial

2 ports for RS-422/485;
2 ports for either RS-422/485 or RS-232

No. of Ports

Performance

Speed

50 bps to 921.6 Kbps

Max. No. of Ports

16 (4 boards)

Configuration

Parity

None, even, odd, space, mark

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

IRQ

Assigned by BIOS

I/O Address

Assigned by BIOS

Operating Systems

CP-114
CP-114I
CP-114S
CP-114IS

Windows 2000/XP/2003, Windows NT, Windows 95/98/ME, Windows XP Embedded, DOS, FreeBSD 4.x, Linux 2.0.x (Alpha), Linux 2.2.x (Alpha), Linux Base

Power and Environment

Power Requirements

CP-114:
    720 mA (+5V), 43 mA (+12V), 31 mA (-12V)
CP-114S, CP-114 V41:
    735 mA (+5V), 44 mA (+12V), 33 mA (-12V)
CP-114I:
    1160 mA (+5V), 35 mA (+12V), 48 mA (-12V)
CP-114IS, CP-114I V41:
    1170 mA(+5V), 36 mA (+12V), 49 mA (-12V)

Operating Temperature

0 to 55°C

Operating Humidity

5 to 95% RH

Storage Temperature

-20 to 85°C

Dimensions (W x D)

135 x 110 mm (CP-114, CP-114S)
160 x 120 mm (CP-114I, CP-114IS)

Surge Protection

25 KV ESD (CP-114S, CP-114IS)

Isolation Protection

2 KV (CP-114I, CI-114IS)

Regulatory Approvals

FCC, CE

*Cabo não incluso
