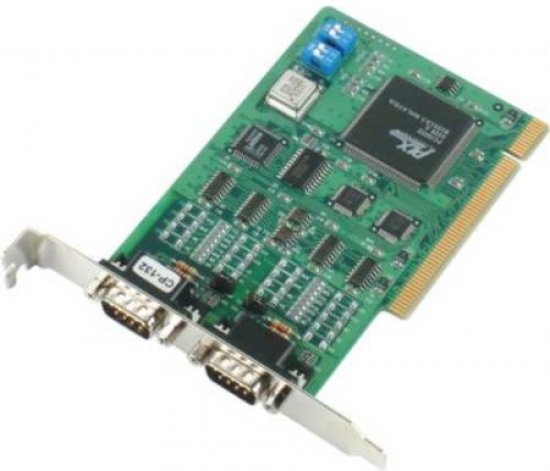

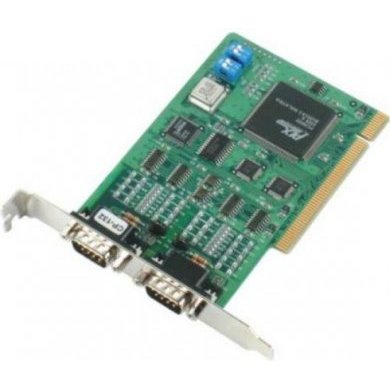

CP-132 Placa Serial Moxa 2 Portas RS-422/485

CP-132 Placa Serial Moxa 2 Portas RS-422/485 DB-9 Macho PCI 32 Bits

Condição de CP-132:
Novo em embalagem comercial

Garantia  de  CP-132:
12 meses direto com a Net Computadores





- Hardware


Comm. Controller
16C550C or compatible x 2


Bus
32-bit PCI, ver. 2.1


Connector(s)
Male DB9


- Serial Interface


Serial Standards
RS-422/485


Number of Ports
2


Number of Boards
4


- Performance


Baudrate
50 bps to 921.6 Kbps


- Serial Communication Parameters


Data Bits
5, 6, 7, 8


Stop Bits
1, 1.5, 2


Parity
None, even, odd, space, mark


Flow Control
RS-485 data control with ADDC- or RTS


I/O Address
Assigned by BIOS


IRQ
Assigned by BIOS


- Serial Signals


RS-422
TxD+, TxD-, RxD+, RxD-, RTS+, RTS-, CTS+, CTS-, GND


RS-485-2w
RS-485: Data+, Data-, GND


- Driver Support


Operating Systems
Windows 2000/XP/2003, Windows NT, Windows 95/98/ME, Windows XP Embedded, DOS, FreeBSD 4.x, Linux 2.0.x (Alpha), Linux 2.2.x (Alpha), Linux Base


- Physical Characteristics


Dimensions
120 x 80 mm (CP-132, CP-132S)
120 x 110 mm (CP-132I, CP-132IS)


- Environmental Limits


Operating Temperature
0 to 55°C


Operating Humidity
5 to 95% RH


Storage Temperature
-20 to 85°C


Regulatory Approvals
FCC, CE


- Power Requirements


Power Consumption
CP-132: 430 mA max. (+5V)
CP-132S: 430 mA max. (+5V)
CP-132I: 700 mA max. (+5V)
CP-132IS: 700 mA max. (+5V)


ESD Protection
25 KV ESD per serial port (CP-132S, CP-132IS)


Optical Isolation Protection
2 KV (CP-132I, CP-132IS)

Maiores detalhes de CP-132 no site do fabricante:

Tags de CP-132: CP-132, CP132, MOXA, RS422, RS485, RS-422, DB9, Controladora Serial, MOXA
