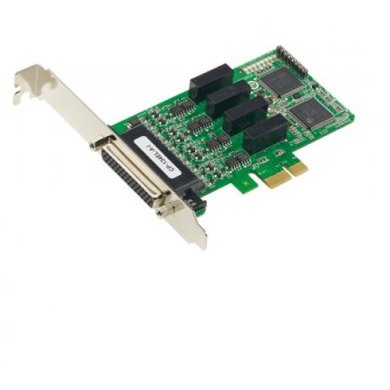

CP-134EL-A-I Moxa Placa Serial 4 Portas RS-422 RS-485 PCI-E com proteção de 4kV e isolação elétrica de 2kV
Condição de CP-134EL-A-I:
Novo em embalagem comercial
Garantia de CP-134EL-A-I:
12 meses direto com a Net Computadores
Features and Benefits Moxa Intelligent RS-485
PCI Express x1 compliant
Serial communication speed up to 921.6 kbps
128-byte FIFO and on-chip S/W flow control
Variety of connection cables and boxes available for RS-232/422/485
Drivers provided for the latest versions of Windows, Linux, and Unix
Easy maintenance with on-board LED display and management software
15 kV ESD, 4 kV surge, and 2 kV electrical isolation onboard
Overview
The CP-134EL-A-I is a smart PCI Express multiport serial board designed for POS and ATM applications, and for use by industrial automation system manufacturers and system integrators. The CP-134EL-A-I is compatible with all popular operating systems, and each of its 8 serial ports supports data rates of up to 921.6 kbps, and provides full modem control signals, ensuring compatibility with a wide range of serial peripherals. In addition, the CP-134EL-A-I works with PCI Express x1, allowing the board to be installed in any PCI Express slot.
Intelligent RS-485 for Easy Installation and Troubleshooting (Patent Pending)
Setting up an RS-485 network is relatively straightforward. The challenge comes when the power is turned on and the devices connected to the network start transmitting and receiving data. In most cases, engineers will need to further tune the system by configuring pull high/low resistors and terminators at strategic points along the network. Moxa’s new Intelligent RS-485 technology supports two essential features to make it easy: (1) One-Click Installation automatically analyzes the network topology and then adjusts terminators and pull high/low resistors. (2) One-Click Troubleshooting tells you what to change to make a deficient network viable.
• Hardware
Comm. Controller 16C550C compatible
Bus PCI Express x1
Connector DB44 female
• Serial Interface
Number of Ports 4
Serial Standards RS-422/485
Max. No. of Boards per PC 4
• Serial Line Protection
ESD Protection 15 kV on the board
Surge Protection 4 kV
Electrical Isolation 2 kV
• Performance
Baudrate 50 bps to 921.6 kbps
• Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
• Serial Signals
RS-422 TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w Data+(B), Data-(A), GND
• Operating Systems
Windows Real COM Drivers Windows 2000/XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64)
Fixed TTY Drivers QNX 6, SCO OpenServer, UnixWare 7, Solaris 10 (x86/x64)
Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x
Note Please refer to Moxa’s website for the latest driver support information.

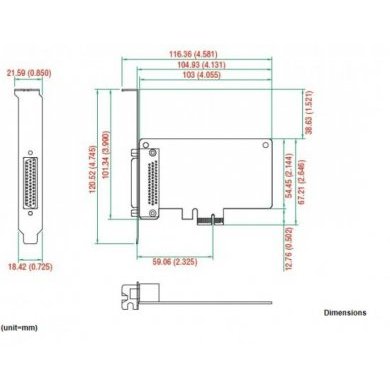

• Physical Characteristics
Dimensions 67.2 x 103 mm (2.69 x 4.06 in)
• Environmental Limits
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature -20 to 85°C (-4 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Altitude Up to 2000 m
Note Please contact Moxa if you require products guaranteed to properly at higher altitudes.
• Standards and Certifications
EMC CE, FCC
EMI EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B
EMS EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS)
Green Product RoHS, CRoHS, WEEE
• MTBF (mean time between failures)
Time 433,077 hrs
Database Telcordia (Bellcore), GB
• Power Requirements
Power Consumption 3,414 mA @ 3.3 V
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
Maiores detalhes de CP-134EL-A-I no site do fabricante:
http://www.moxa.com/product/CP-134EL-A-I.htm
Tags de CP-134EL-A-I: CP-134EL-A-I-DB9M, CP-134EL-A-I-DB25M, RS422, RS485, 4kv, 4 kv, 2kv, 2 kv, CP-134EL-A-I, CP134ELAI, CP-134EL, MOXA
