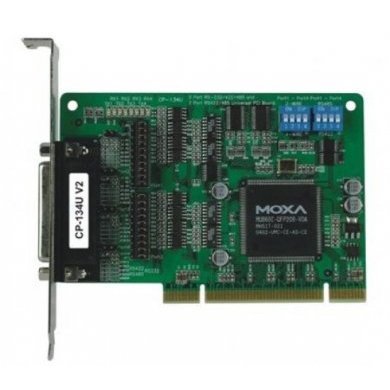

The CP-134U and CP-134U-I 4-port universal PCI boards are designed for industrial automation applications that require a long distance,multi-point, PC-based data acquisition solution.
On-chip Automatic Data Direction Control for precision RS-485 communication
RS-485 communication requires precise timing control to enable and disable the line driver. The Moxa Turbo Serial Engine chip that powers the CP-134U board comes with on-chip ADDC, which makes RS-485 as easy to use as RS-232.
RS-485 multidrop for up to 31 devices within 1.2 km
The CP-134U universal PCI board has 4 RS-422/485 serial ports, each of which can achieve data rates up to 921.6 Kbps. In RS-485 mode,the board can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long distance RS-485 communication, choose the CP-134U-I, which comes with 2 KV optical isolation protection to prevent equipment damage.
Drivers Provided for Windows, Linux, and Unix
Moxa continues to support a wide variety of operating systems, and the CP-134U and CP-134U-I boards are no exception. Reliable Windows COM and Linux/Unix TTY drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.

FEATURES:

Over 700 Kbps data throughput for top performance
921.6 Kbps maximum baudrate for super fast data transmission
ADDC provides automatic data direction control for RS-485 signals
128-byte FIFO and on-chip H/W, S/W flow control
Compatible with 3.3/5V PCI and PCI-X
Drivers provided for Windows (7 x86/x64, XP/2003/Vista/2008 x86/x64, 2000, 9X/ME/NT), Windows CE 5.0/6.0, Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 (x86/x64), FreeBSD 4/5, QNX 6, SCO OpenServer 5/6, UnixWare 7, Solaris 10 x86/x64
15 KV ESD protection on the board
Added bonus! Ports 1 and 2 support RS-232 and RS-422/485
Wide temperature model available for -40 to 85C environments

Maiores detalhes de CP-134U-I no site do fabricante:
http://www.moxa.com/product/CP-134U_V2.htm

Tags de CP-134U-I: Isolamento Óptico, CP-134U-I-DB25M, RS422, RS-422, RS485, RS-485, CP-134U-T, CP-134U-I-T, CBL-M44M25x4-50, CBL-M44M9x4-50, CP-134U-I-DB9M, CP-134U, CP134U, CP 134U, CP-134U-DB9M, CP-134U-DB25M, CP-134U-I, MOXA

CP-134U-I Placa Moxa Serial 4 Portas UPCI RS422 RS485 com Isolamento Óptico (Cabo não incluso)

Condição de CP-134U-I:
Novo em embalagem comercial

Garantia de CP-134U-I:
12 meses direto com a Net Computadores
