CP2108-GM iO Controller Interface IC USB to Quad UART Bridge

Name: CP2108-GM iO Controller Interface IC USB to Quad UART Bridge
Brand: Silicon Labs
SKU: CP2108-GM
Price: 43.00 BRL
Availability: InStock

CP2108-B02-GM

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 43,00

à vista no Pix ou Boleto

ou R$ 44,88 em 1x no cartão (via site)

ou R$ 47,38 no cartão em até 10x sem juros (apenas na loja física)

R$ 43,00

à vista no Pix ou Boleto

R$ 44,88
em 1x no cartão (via site)

R$ 47,38 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

7 dias troca. Sem garantia após soldado

NCM:

85423190

R$ 43,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
0 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar CP2108-GM

CP2108-GM iO Controller Interface IC USB to Quad UART Bridge
CP2108-B02-GM

Condição de CP2108-GM: Novo em embalagem comercial

Garantia de CP2108-GM: 7 dias troca. Sem garantia após soldado

Outros PNs para este item: CP2108, CP2108-B02-GM, CP2108-B02-GMR

The CP2108-B02-GM is a highly integrated USB to Quad UART Bridge Controller providing a simple solution for updating RS-232/ RS-485 designs to USB using a minimum of components and PCB space.

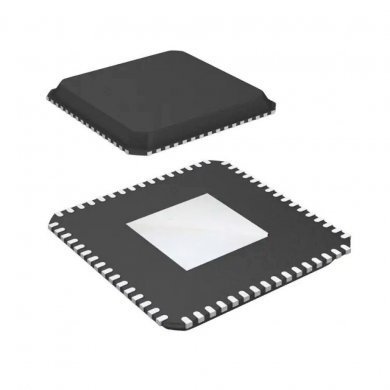

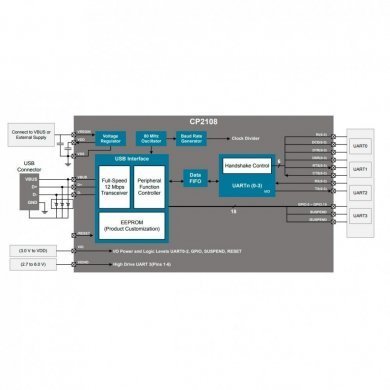

The CP2108 includes a USB 2.0 full-speed controller, USB transceiver, oscillator, EEPROM, and four asynchronous serial data buses (UART) with full modem control signals in a compact 9 mm x 9 mm 64-pin QFN package. The on-chip EEPROM may be used to customize the USB Vendor ID (VID), Product ID (PID), product description string, power descriptor, device release number, interface strings, device serial number, modem and GPIO configuration as desired for applications. All customization and configuration options can be selected using a simple GUI-based configurator. By eliminating the need for complex firmware and driver development, the CP2108 devices enable quick USB connectivity with minimal development effort.

- No firmware development required
- Simple GUI-based configurator
- Integrated USB transceiver; no external resistors required
- Integrated clock; no external crystal required
- USB 2.0 full-speed compatible
- Four independent UART interfaces
- 16 GPIOs with configurable options
- Royalty free Virtual COM port (VCP) drivers

Single-Chip USB-to-QUAD UART Data Transfer
- Four independent UART interfaces
- Integrated USB transceiver; no external resistor required
- Integrated clock; no external crystal required
- Integrated programmable EEPROM for storing customizable product information
- On-chip power-on reset circuit
- On-chip voltage regulator: 3.3 V output

USB Peripheral Function Controller
- USB Specification 2.0 compliant; full-speed (12 Mbps)
- USB suspend states supported via SUSPEND pins

Virtual COM Port Drivers
- Works with existing COM port PC applications
- Royalty-free distribution license
- Supported on Windows, Mac, and Linux

Supply Voltage
- Self-powered: 3.0 to 3.6 V
- USB bus powered: 4.0 to 5.5 V
- VIO voltage: 3.0 to VDD
- VIOHD voltage: 2.7 to 6 V

Maiores detalhes de CP2108-GM no site do fabricante:
https://www.silabs.com/documents/public/data-sheets/cp2108-datasheet.pdf

Tags de CP2108-GM: CP2108-B02-GM, CP2108-B02-GMR, CP2108, USB to Quad UART Bridge Controller, USB 2.0 controller, ci controlador de USB, ci driver de USB, Silicon Labs

CP2108-GM iO Controller Interface IC USB to Quad UART Bridge CP2108-B02-GM

Condição de CP2108-GM:
Novo em embalagem comercial

Garantia de CP2108-GM:
7 dias troca. Sem garantia após soldado

Outros PNs para este componente: CP2108, CP2108-B02-GM, CP2108-B02-GMR
